€179.00
Home delivery (Germany) 12/10/2026 - 14/10/2026

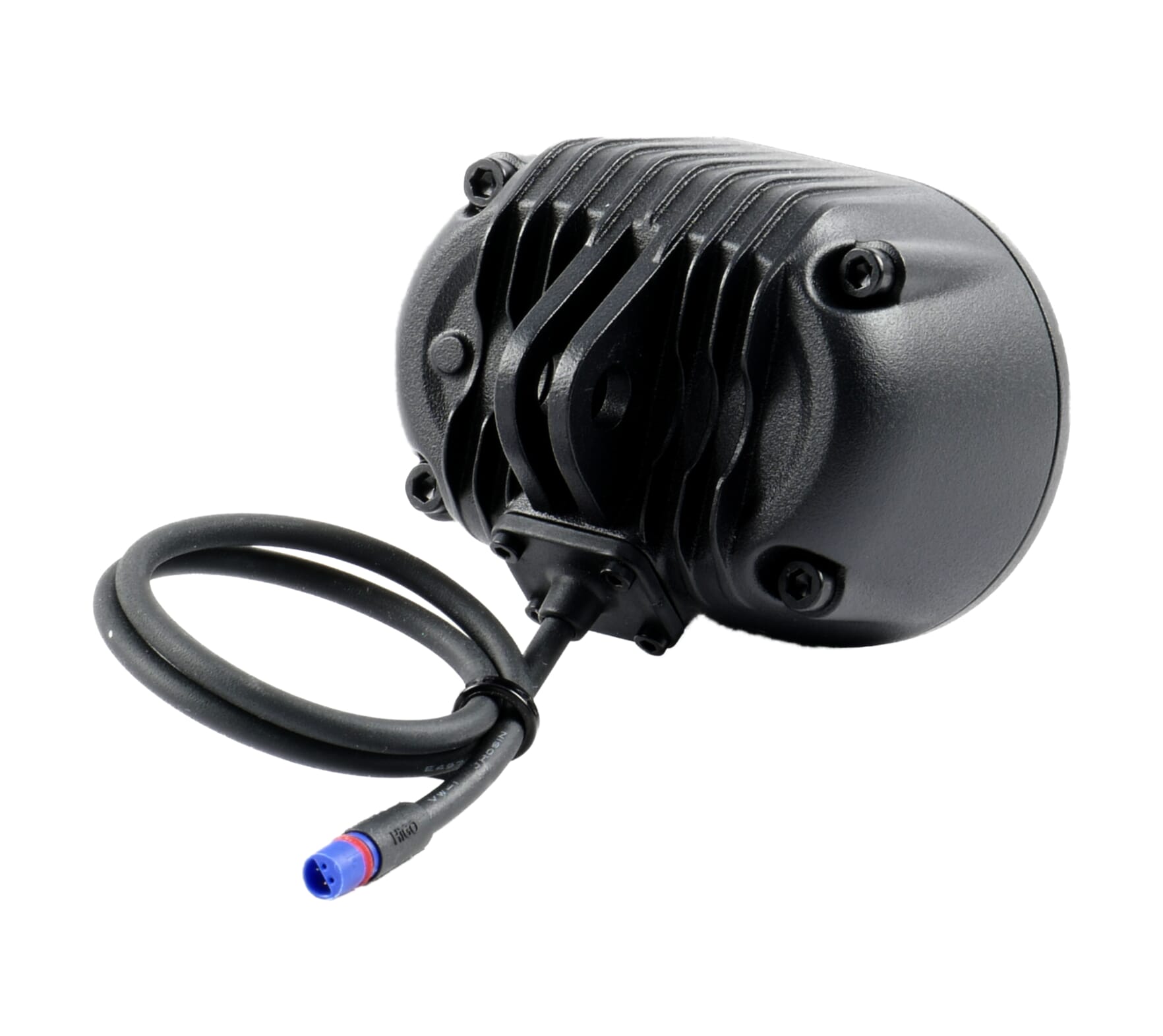

The DJI Avinox e-bike headlight is a powerful front light designed for e-bikes equipped with a DJI Avinox drive system. It delivers 750 lumens in low-beam mode and up to 1,200 lumens in high-beam mode, making it ideal for riding at dusk and in low-light conditions. Advanced LED technology combined with integrated reflectors ensures uniform and efficient light distribution for improved visibility. The headlight connects via the supplied lighting cable, which plugs into the accessory port of the Avinox display. Operation is handled conveniently through the DJI Avinox Wireless Controller mounted on the right-hand side of the handlebar. Thanks to its IP56 protection rating, the headlight is well protected against rain, splash water and dust.
Note: The headlight is compatible with e-bikes featuring a DJI Avinox M1, M2 or M2S motor, including selected models from Amflow and Crussis.
Features of the DJI Avinox e-bike headlight
- Headlight with high and low beam functionality
- Up to 1,200 lumens light output
- Compatible with Avinox M1, M2 & M2S motors
- Connects to Avinox displays DP100, DP100-F & DPC100
- Operated via the right-hand Avinox controller
- IP56 protection rating
Scope of delivery of the Avinox e-bike headlight
DJI Avinox e-bike headlight without mount:
- 1x Avinox e-bike headlight incl. lighting connection cable
DJI Avinox e-bike headlight with handlebar mount (31.8 & 35.0 mm):
- 1x Handlebar mount (for 35.0 mm handlebar diameter)
- 2x Reducing sleeves (for 31.8 mm handlebar diameter)
DJI Avinox e-bike headlight with stem mount:
- 1x Avinox e-bike headlight incl. lighting connection cable
- 1x Stem adapter incl. 1 screw
- 2x Upper spacers, 2× lower spacers
- 2x Mounting screws for adapter
- 2x Steerer tube rubber plugs
- 2x Cable outlet covers for rubber plugs
- 2x Mounting screws for rubber plugs
Note: The stem adapter features a 30 mm bolt spacing. Please check compatibility with your stem before purchase.
| Compatibility: | Avinox motors M1, M2 & M2S | Avinox displays DP100, DP100-F & DPC100 |
|---|---|
| Connection: | Connection to the Avinox Control Display |
| Control unit: | Operation with Avinox Wireless Controller on the right (switching on & off, switching between high beam & low beam) |
| DJI Avinox System: | M1, M2, M2S |
| Drive system: | DJI Avinox |
| Front light: | LED technology with internal reflectors |
| Headlights: | DJI Avinox e-bike headlight with low beam & high beam |
| High beam light output: | 1200 lumens |
| Item: | DJI Avinox e-bike headlight |
| Light output dim light: | 750 lumens |
| Manufacturer: | Amflow, DJI Avinox |
| Material: | Aluminium |
| Safety class: | IP56 protection class (protection against rain, splash water & dust) |
| StVZO approval: | German Road Traffic Licensing Regulations approved |
| Suitable cable: | Light connection cable Higo Z 405 female |
| Voltage input: | 12V (11V-18V) |
