Bergamont E-Horizon SUV 20 Belt - 2026

Preview: Bergamont E-Horizon SUV 20 Belt - Men

Preview: Bergamont E-Horizon SUV 20 Belt - Step-through bike black

Preview: Bergamont E-Horizon SUV 20 Belt - Step-through bike red

Bergamont E-Horizon SUV 20 Belt - Step-through bike black

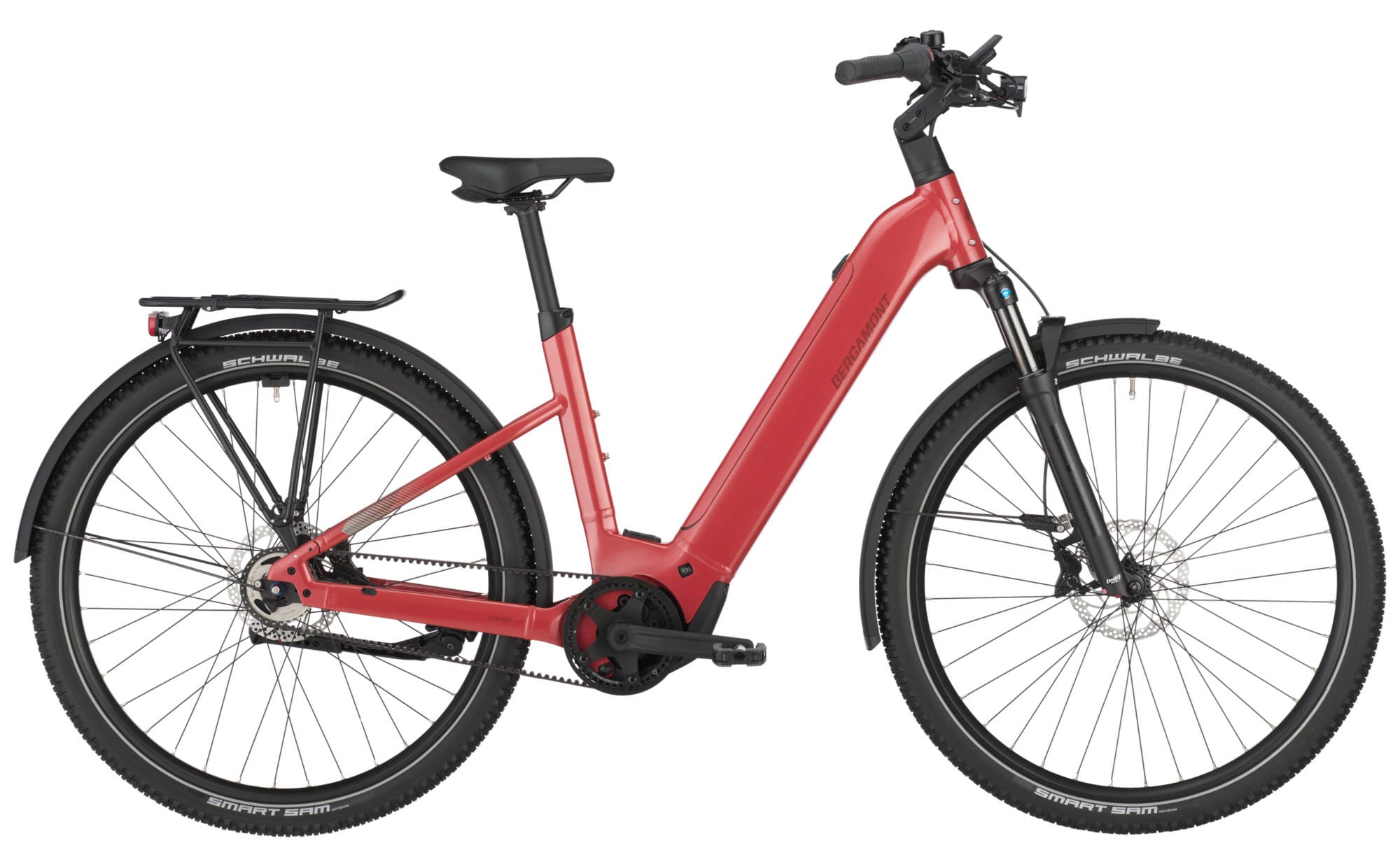

Bergamont E-Horizon SUV 20 Belt - Step-through bike red

4,799.00€

Prices incl. VAT plus shipping costs

Item number: 11601-001
Manufacturer Part Number: 4257305576006
EAN: 7616185373599

Close menu

The Bergamont E-Horizon SUV 20 Belt 2026 is the ideal e-trekking bike for demanding riders who value comfort, safety, and cutting-edge technology. It is powered by the robust Bosch Performance Line CX motor of the latest generation, delivering 250 watts and reliable assistance even on steep climbs. The high-capacity Bosch PowerTube 800 Wh battery ensures excellent range for extended tours. The combination of the durable Gates CDX belt drive and the Shimano Nexus 5-speed hub gear provides clean, quiet, and low-maintenance performance. With the Bosch Intuvia 100 display, you always have speed, range, and support level in view, while the eBike Flow app allows you to customise your riding experience.

E-Bike Types:	SUV E-Bike
Model year:	2026
Battery capacity:	800 Wh - 899 Wh
Drive system:	Bosch drive
Manufacturer:	Bergamont
Derailleur/drive type:	Hub gear - belt drive
Battery position:	Intube battery / frame integrated
Bosch System:	Bosch Performance Line CX from 2025 Smart System
Frame:	28", super lite AL-6061 tube set
Fork:	Suntour Mobie 34 Air, 100 mm, 15x110 mm axle
Battery:	Bosch PowerTube 800 Wh
Tyres:	Front: Schwalbe Smart Sam, Performance, Addix, reflex tyres, 57-622 \| Rear: Schwalbe Smart Sam, Performance, Addix, reflex tyres, 57-622
Brakes:	Shimano BR-MT420, hydraulic disc brake, 4-piston
Saddle:	Syncros Capilano Trekking
Seat post:	BGM Pro
Carrier:	Racktime / BGM Trekking Pro, Snapit 2.0 System
Colour:	matt black, metallic red
Stem:	Satori Python, adjustable
Display:	Bosch Intuvia 100 with LED Remote
Mudguard:	Curana Orbit, with stainless steel struts
Grips:	Syncros Urban, Ergo, double density, lock-on
Motor:	Bosch Performance Line CX (BDU384Y), 250 W, 36 V, max. 25 km/h
Headset:	Acros, A-Headset, semi-integrated, tapered, with integrated cable feed-through
Rear light:	Axa Juno, LED, with brake light function
Pedal:	Marwi SP-823
Front hub:	Shimano HB-TC500-B, Centerlock, Disc, 15x110 mm axle
Rear hub:	Shimano Nexus, SG-C7000-5, freehub, centrelock, disc
Handlebar:	Syncros 3.0, riser handlebars
Cassette:	Gates CDX, 32 teeth
Chain:	Gates CDX Carbon Drive Belt, Centre-Track
Shift lever:	Shimano Nexus, SL-C7000, 5-speed, twist grips
Charger:	Bosch Standard Charger, 4A
Brake lever:	Shimano BL-MT402, hydraulic disc brake
Spokes:	Stainless steel, black
Disc brakes:	Shimano SM-RT30, 180 mm
Crank set:	FSA CK-320, 170 mm, belt, 46 teeth

Features of the Bergamont E-Horizon SUV 20 Belt - 2026
