Bosch Intuvia 200 Retrofit Set

Retrofit the Bosch Intuvia 200 display (BHU3210) on your e‑bike with the Bosch Smart System and experience intuitive operation from your very first ride. During use, the 2.4‑inch display focuses on the most important ride data: battery level, assistance mode, time and speed are always shown. In addition, up to five separate screens can be configured in the lower area of the display, showing data such as cadence, distance or ride time.

The Intuvia 200 is mounted on the handlebar, where it remains permanently attached. Thanks to its IP55 rating, it is reliably protected against external influences such as dirt and rain, making it ideal for all weather conditions. The Bosch Intuvia 200 also features a TFT IPS greyscale display with a brightness of up to 1000 cd/m², ensuring excellent readability at all times. An integrated ambient light sensor automatically adjusts the brightness.

The Intuvia 200 display can be used in combination with the Bosch Kiox 400C display (BRC3200), the Bosch LED Controller (BRC3610), the Bosch LED Remote (BRC3600) or the Bosch System Controller (BRC3100) together with the Bosch Mini Remote (BRC3300).

Note: Please note that the Intuvia 200 does not offer navigation or charging functions. It also cannot be used for the “Bosch eBike Lock: Display as Key” feature.

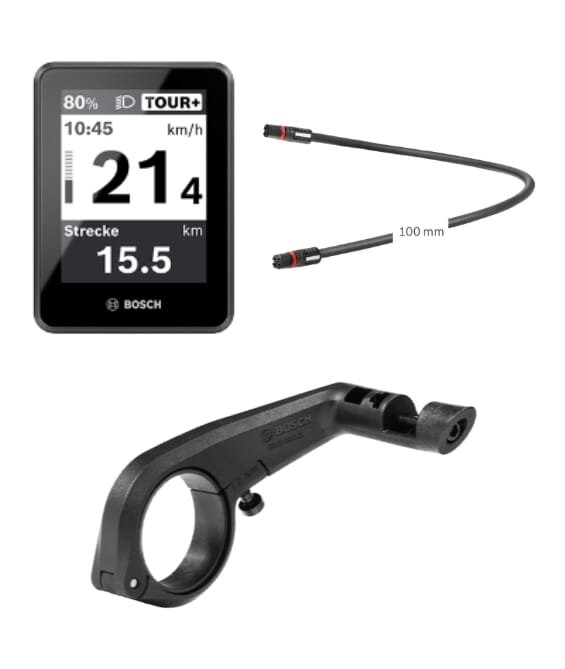

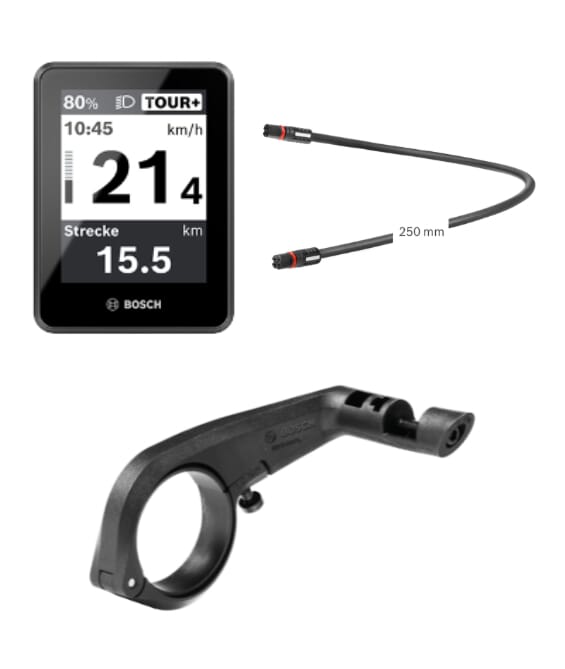

Features of the Bosch Intuvia 200 retrofit set

• Retrofit set for e‑bikes with Bosch Smart System
• Bosch Intuvia 200 display incl. single‑arm mount & display cable
• 2.4" greyscale display with brightness sensor
• Compatible with the Bosch eBike Flow app
• For fixed handlebar mounting
• Handlebar clamp: 31.8 & 35.0 mm
• Cable lengths: 100, 150, 250 & 300 mm

Installation of the Bosch Intuvia 200 (BHU3210)

The Bosch Intuvia 200 is mounted on the e‑bike handlebar using a single‑arm mount. This is available for handlebars with a 31.8 mm or 35.0 mm clamp diameter and allows positioning either in front of or behind the handlebar. The connection to the Smart System motor is made via the Bosch display cable for Smart System (BCH3611), which is available in lengths of 100 mm, 150 mm, 250 mm and 300 mm. Both the handlebar mount and the display cable are included in the Intuvia 200 retrofit set.
