€129.00
This product will be released on 30 August 2026

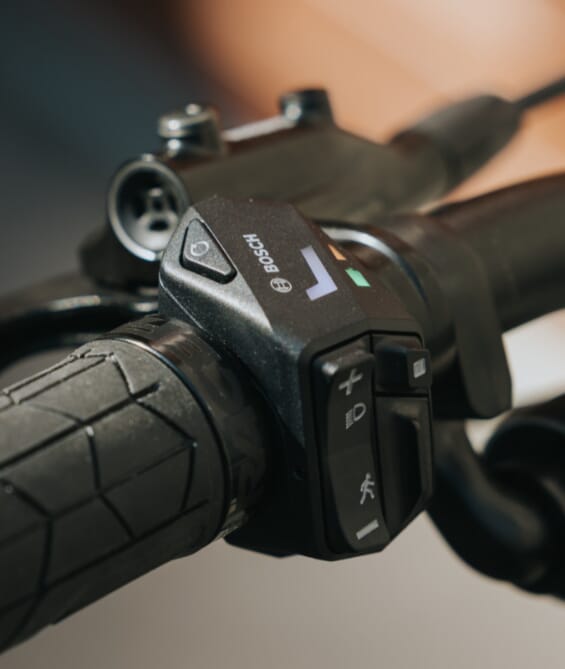

The Bosch LED Controller is a compact control unit for the Bosch Smart System, combining all essential functions of an e‑bike display and remote in a single device. Equipped with LED indicators, control buttons and a USB‑C port, the controller can be used independently without requiring a Bosch display.
The unit is mounted to the handlebar using a fixed 22.2 mm clamp. The grip must be removed for installation. Connection to the e‑bike is established via the Bosch display cable (BCH3611) which is also required when using a Smart System display together with the LED Controller. Compatible displays include the Bosch Intuvia 200 (BHU3210) and the Bosch SmartphoneGrip vertical (BSP3300).
The unit is powered directly via the e‑bike motor and also features its own removable, rechargeable and replaceable battery.
Features of the Bosch LED Controller Smart System
- Control unit with 22.2 mm handlebar clamp
- Can be used with or without a Bosch display
- For e‑bikes with Bosch Smart System
- Compatible with the Bosch eBike Flow app
- 5 control buttons & USB‑C charging port
- IP55 rating: protected against dust & water jets
- Dimensions (L x W x H): 52 x 42 x 27 mm
Controls of the Bosch LED Controller
The Bosch LED Controller features 5 control buttons used to operate both the e‑bike system and connected components such as displays. The on/off button activates the e‑bike. The plus and minus buttons increase or decrease the support level. Thanks to dual‑function buttons, you can also control the bike lights and activate the walk‑assist function.
| Bosch E-Bike System: | Bosch Smart System |
|---|---|
| Bosch System: | Bosch Active Line Plus from 2024 Smart System, Bosch Active Line from 2024 Smart System, Bosch Cargo Line 2022 - 2025 Smart System, Bosch Cargo Line from 2025 Smart System, Bosch Performance Line 2023 - 2025 Smart System, Bosch Performance Line CX-R from 2025 Smart System, Bosch Performance Line CX 2022 - 2025 Smart System, Bosch Performance Line CX Race from 2023 Smart System, Bosch Performance Line CX from 2025 Smart System, Bosch Performance Line PX from 2025 Smart System, Bosch Performance Line SX from 2024 Smart System, Bosch Performance Line Speed 2023 - 2025 Smart System, Bosch Performance Line Speed from 2025 Smart System, Bosch Performance Line from 2025 Smart System |
| Compatibility: | E-bikes with Bosch Smart System motor | Bosch Smart System displays & eBike Flow app |
| Display: | Compatible with Bosch Smart System Displays: Intuvia 100 (BHU3200), Intuvia 200 (BHU3210), Kiox 300 (BHU3600), Kiox 500 (BHU3700), Purion 400 (BHU3500), SmartphoneGrip (BSP3200), SmartphoneGrip vertical (BSP3300) |
| Drive system: | Bosch drive |
| EAN: | 4054289012526 |
| Equipment: | 5 operating buttons (on/off button, plus & minus button, toggle switch & confirmation button) | USB-C charging port with up to 10 W & 2 A |
| Handlebar clamp: | 22.2 mm |
| Item: | Bosch LED Controller for Smart System (BRC3610) |
| Maker's ref. no.: | EB1310001G |
| Manufacturer: | Bosch |
| Measurements: | Length: 5.2 cm | Width: 4.2 cm | Height: 2.7 cm |
| Mounting: | Mounted on the handlebar |
| Power source: | E-Bike Battery, Own Battery |
| Safety class: | Protection class IP55 (protected against dust & water jets) |
| Weight: | approx. 28 g |
