Bosch PT 600/800Wh bracket on the lock side

Preview: Bosch PT 600/800Wh bracket lock-side standard removal - front side Preview: Bosch PT 600/800Wh bracket lock-side standard removal - rear side Preview: Bosch PT 600/800Wh bracket on lock side Inverse removal - front side Preview: Bosch PT 600/800Wh bracket on lock side Inverse removal - rear side

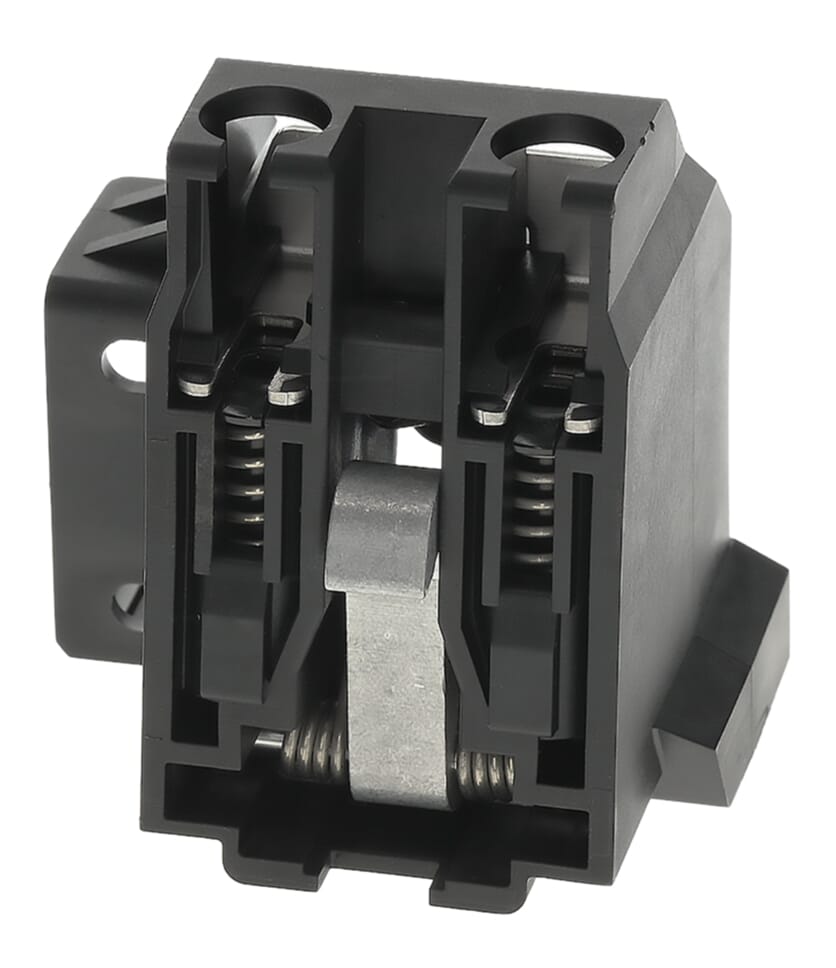

Bosch PT 600/800Wh bracket lock-side standard removal - front side

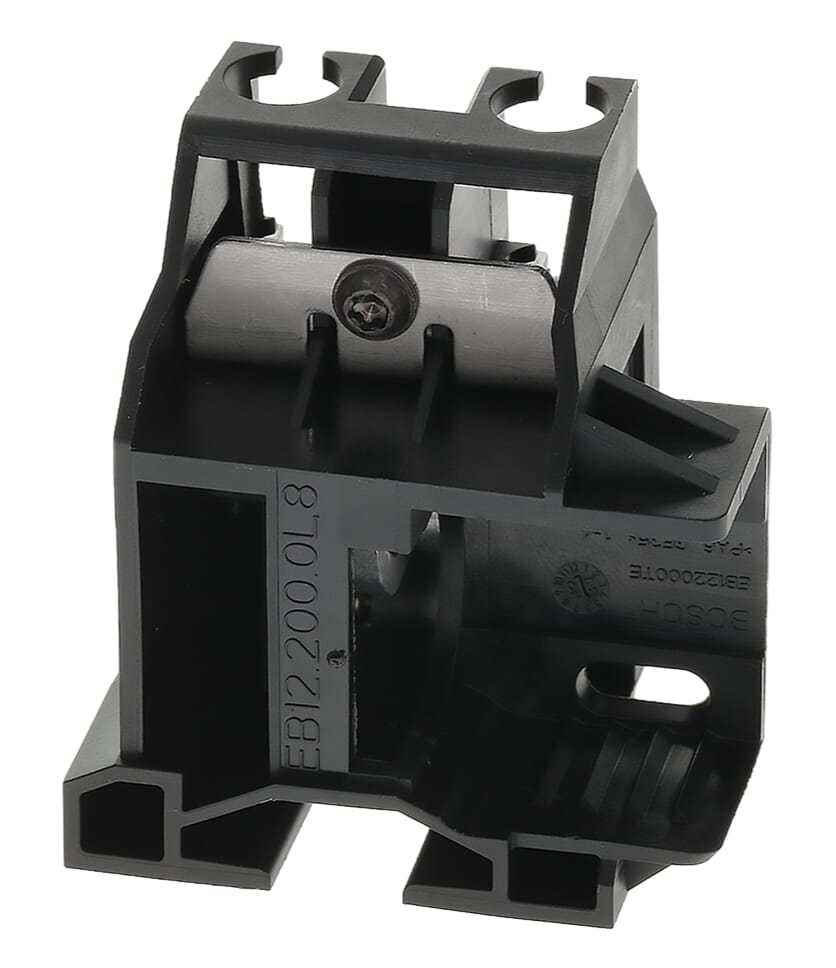

Bosch PT 600/800Wh bracket lock-side standard removal - rear side
Bosch PT 600/800Wh bracket on lock side Inverse removal - front side
Bosch PT 600/800Wh bracket on lock side Inverse removal - rear side

From 9.00€

Prices incl. VAT plus shipping costs

  • Item number: 10821-001
  • Manufacturer Part Number: EB122000L7
  • EAN: 4054289011390

Removal option:

Description Reviews 0
Close menu

With the Bosch PT 600/800Wh bracket on the lock side, the Smart System PowerTube is securely attached to the frame of your eBike. The bracket is compatible with the Bosch PowerTube 600Wh and the Bosch PowerTube 800Wh. The original Bosch spare part is available in two versions, which differ in the way the battery is removed. With standard removal, the battery is removed opposite the mounting side. With reverse removal, the battery is removed from the mounting side.

Features of the Bosch PT 600/800Wh holder on the lock side

  • Bracket for Bosch PowerTube 600 & 800Wh
  • lock-side mounting
  • only for Smart System PowerTube
  • secure hold of the batteries in the down tube
  • 2 variants: standard & inverse removal
  • original Bosch spare part
Specifications
Battery capacity: 600 Wh - 699 Wh, 800 Wh - 899 Wh
Drive system: Bosch drive
Manufacturer: Bosch
Bosch System: Bosch Active Line from 2024 Smart System, Bosch Active Line Plus from 2024 Smart System, Bosch Cargo Line from 2022 Smart System, Bosch Performance Line CX from 2022 Smart System, Bosch Performance Line CX from 2025 Smart System, Bosch Performance Line CX Race from 2023 Smart System, Bosch Performance Line from 2023 Smart System, Bosch Performance Line Speed from 2023 Smart System, Bosch Performance Line SX from 2024 Smart System
Battery position: Intube battery / frame integrated
Item: Bosch PT 600/800Wh bracket on the lock side
Scope of delivery: 1x bracket on the lock side
Compatibility: Bosch PowerTube 600 & 800 Wh Smart System
Maker's ref. no.: 10821-001: EB122000L7 | 10821-002: EB122000WF
Mounting: Intube mounting, swivelling removal (pivot)
Variants: 10821-001: Bracket lock-side standard removal (opposite mounting side) | 10821-002: Bracket lock-side reverse removal (towards mounting side)
Item weight: 74g
EAN: 10821-001: 4054289011390 | 10821-002: 4054289011406
Bosch E-Bike System: Bosch Smart System
Close menu
Write a review
Reviews will be activated after verification.

The fields marked with * are required.

Customers also bought Customers also viewed
Customers also bought
Bosch Performance Line CX Gen5 screw set. Motor width
Bosch Performance Line CX Gen5 screw set. motor
4.00€
Bosch screw-on plate kit on the lock side for PowerTube 600 Wh battery
Bosch screw-on plate kit on the lock side for PowerTube 600/800
4.00€
ABUS wear cylinder for Bosch Powertube 600/800 - BLO BOS IT4 XPlus
ABUS wear cylinder for Bosch Powertube 600/800 - BLO BOS IT4
39.95€
Bosch damping element on the plug side for PowerTube 600/800Wh
Bosch damping element for PowerTube 600/800Wh
3.00€

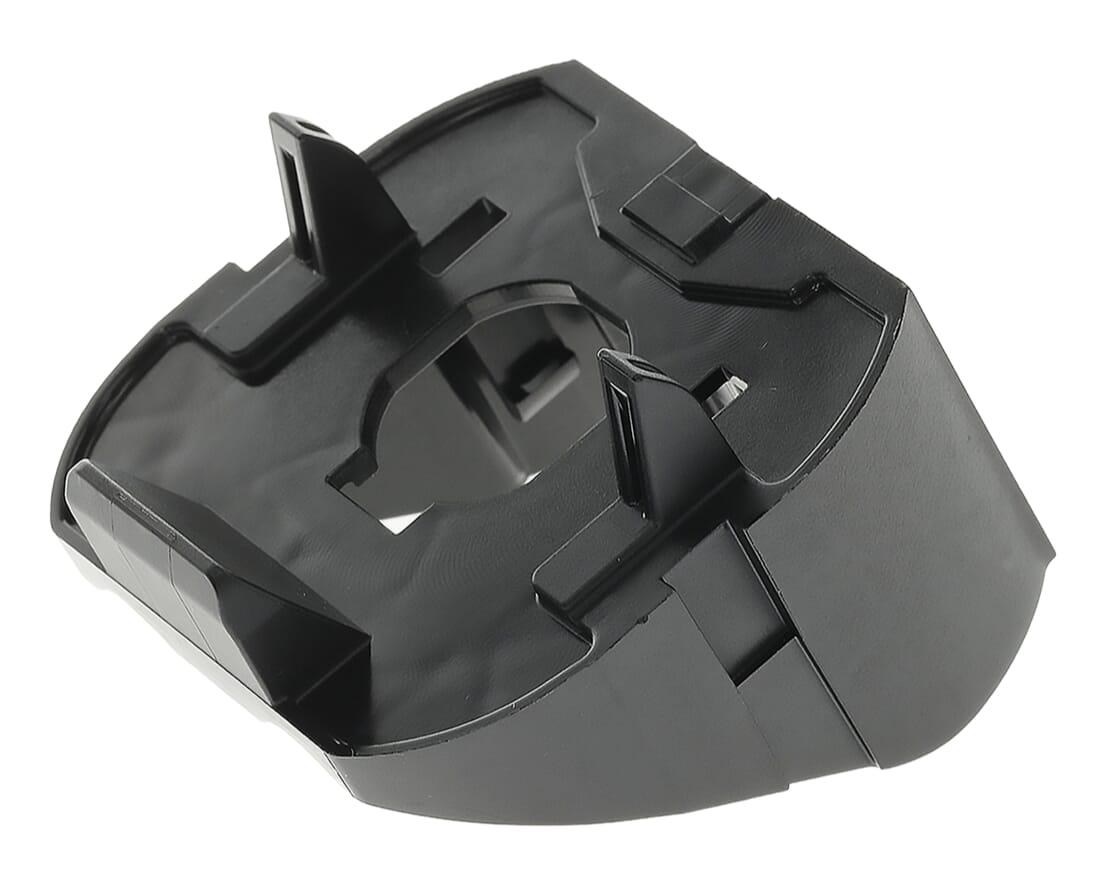

Bosch PT 600/800Wh bracket cable side standard removal (opposite mounting side)
