€52.90
% Regular price: €59.90 (11.69% saved)
Home delivery (Germany) 08/09/2026 - 10/09/2026

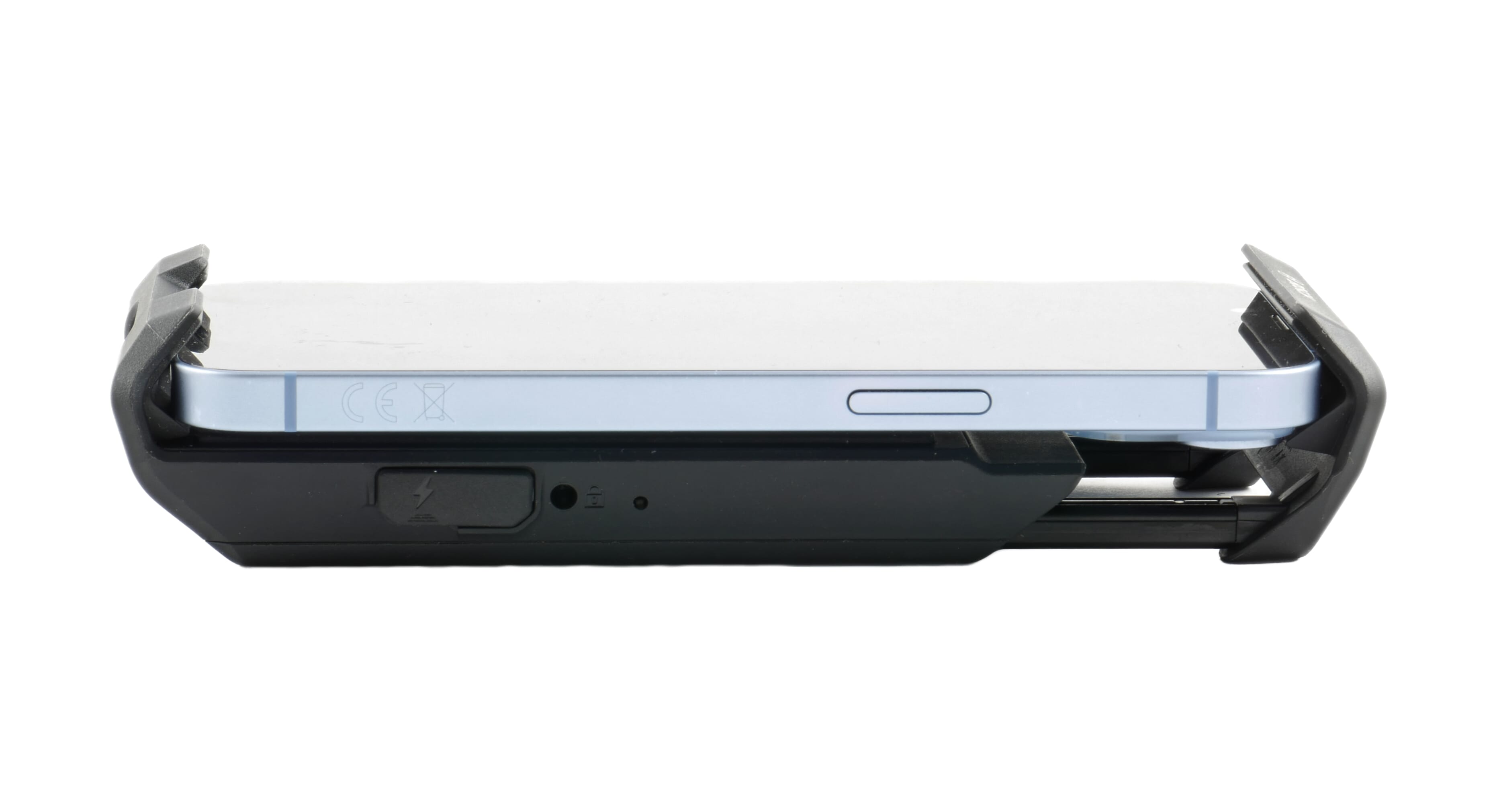

Use your smartphone in portrait orientation as a display on your e‑bike with the Bosch SmartphoneGrip vertical for the Smart System. This allows you to keep key ride data such as speed and battery level, as well as all navigation information, clearly in view on your rides. Simply mount the SmartphoneGrip on the handlebar, insert your smartphone, and unlock all display features using the Bosch eBike Flow app. While riding, the SmartphoneGrip also supports wireless charging (1 A) as well as wired charging via the USB‑C port (1.5 A), powered directly from the e‑bike battery. For this purpose, we recommend the EBIKE24 e‑bike USB‑C charging cable.
Note: Compatible smartphones measure 135–170 mm in length, 68–80 mm in width and 7–12 mm in thickness. Foldable phones or protective cases are not compatible. If you have any questions or are unsure about compatibility, please feel free to contact our customer service.

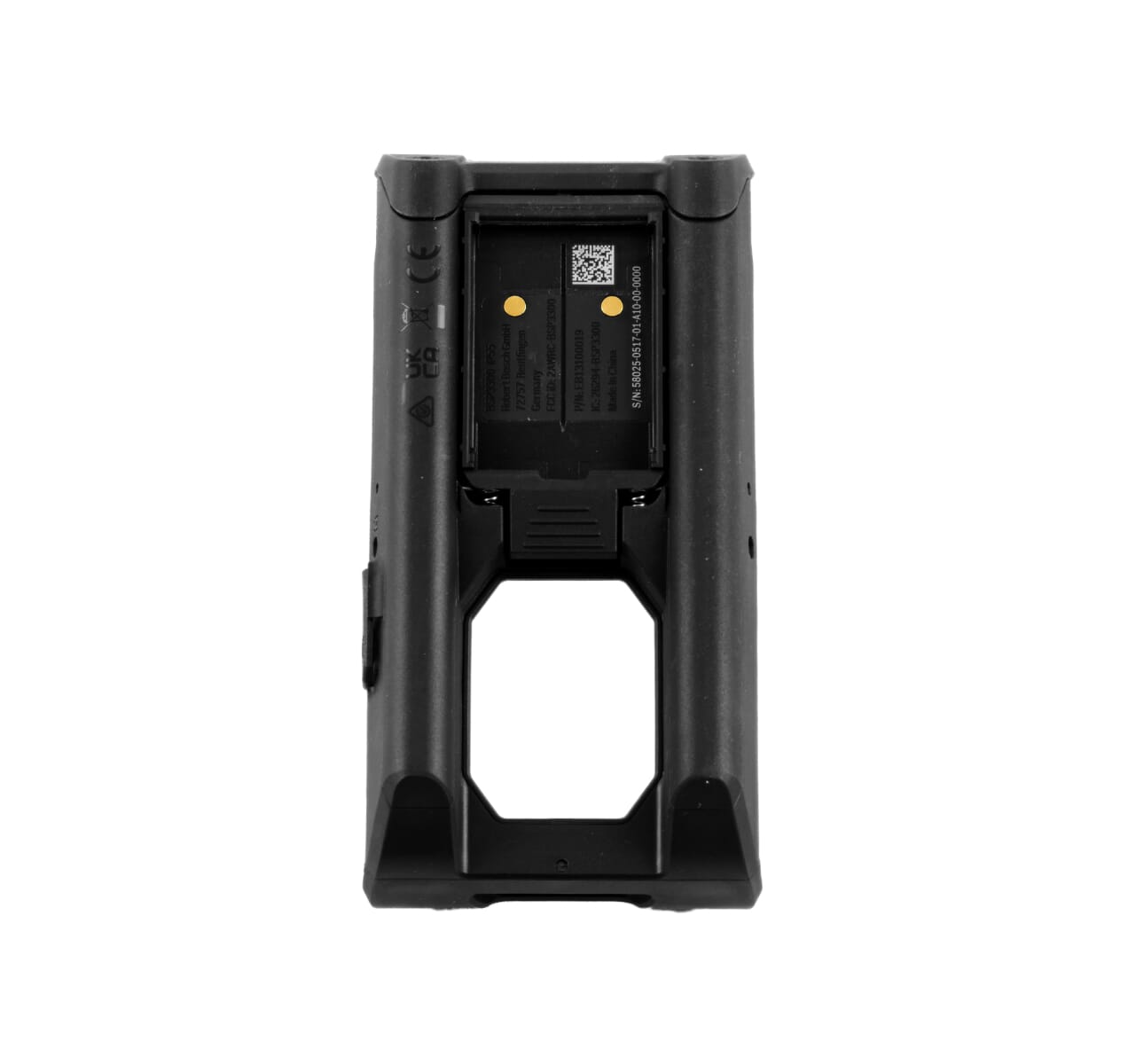

Features of the Bosch SmartphoneGrip vertical Smart System (BSP3300)
- Use your smartphone as a display in portrait orientation
- Compatible with all Bosch Smart System motors
- Supports wireless & wired charging
- Dimensions: 13 x 6.5 x 3.5 cm
- USB‑C port
- Universal fit for many smartphones
- Also available as a retrofit kit
- Scope of delivery does not include the smartphone shown
Retrofitting the Bosch SmartphoneGrip vertical on your e‑bike

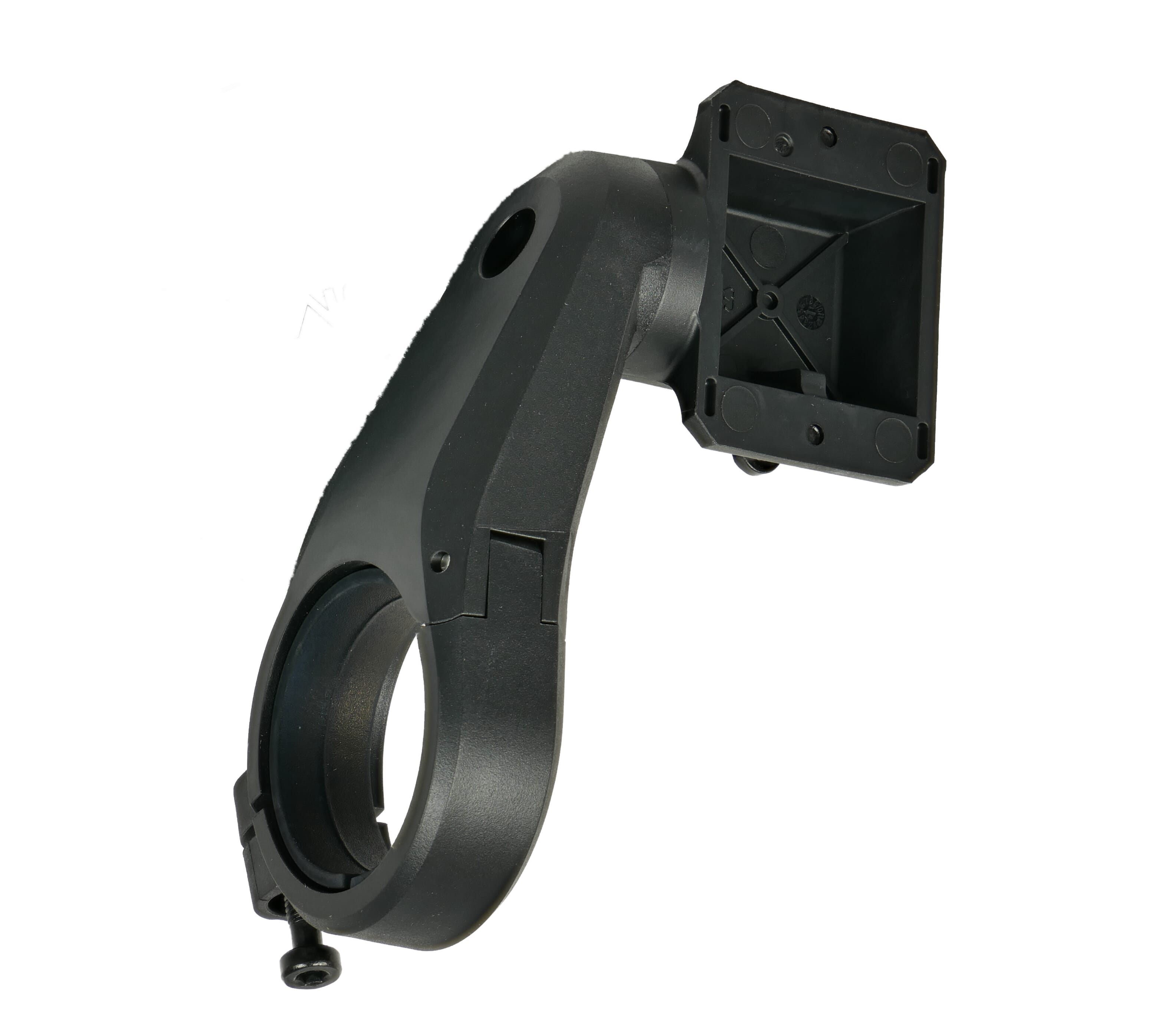

To retrofit the SmartphoneGrip on your e‑bike, you will need the Bosch 1‑arm mount, the Bosch display interface, and a short Bosch display cable. Alternatively, you can simply choose the complete Bosch SmartphoneGrip vertical retrofit kit, which includes all required components.
| Bosch E-Bike System: | Bosch Smart System |
|---|---|
| Bosch System: | Bosch Active Line Plus from 2024 Smart System, Bosch Active Line from 2024 Smart System, Bosch Cargo Line 2022 - 2025 Smart System, Bosch Cargo Line from 2025 Smart System, Bosch Performance Line 2023 - 2025 Smart System, Bosch Performance Line CX-R from 2025 Smart System, Bosch Performance Line CX 2022 - 2025 Smart System, Bosch Performance Line CX Race from 2023 Smart System, Bosch Performance Line CX from 2025 Smart System, Bosch Performance Line PX from 2025 Smart System, Bosch Performance Line SX from 2024 Smart System, Bosch Performance Line Speed 2023 - 2025 Smart System, Bosch Performance Line Speed from 2025 Smart System, Bosch Performance Line from 2025 Smart System |
| Colour: | black |
| Compatibility: | Suitable smartphone sizes: Length 135 - 170 mm; Width: 68 - 80 mm; Height: 7 - 12 mm |
| Drive system: | Bosch drive |
| EAN: | 4054289011789 |
| Incompatibility: | Not authorised for S-Pedelecs |
| Item: | Bosch SmartphoneGrip Vertical Smart System (BSP3300) |
| Item weight: | 102 g |
| Maker's ref. no.: | EB13100019 |
| Manufacturer: | Bosch |
| Measurements: | Length: 13 cm | Width: 6.5 cm | Height: 3.5 cm |
| Note: | The smartphone shown is not included in the scope of delivery. |
| Scope of delivery: | 1x Bosch SmartphoneGrip vertical Smart System |
