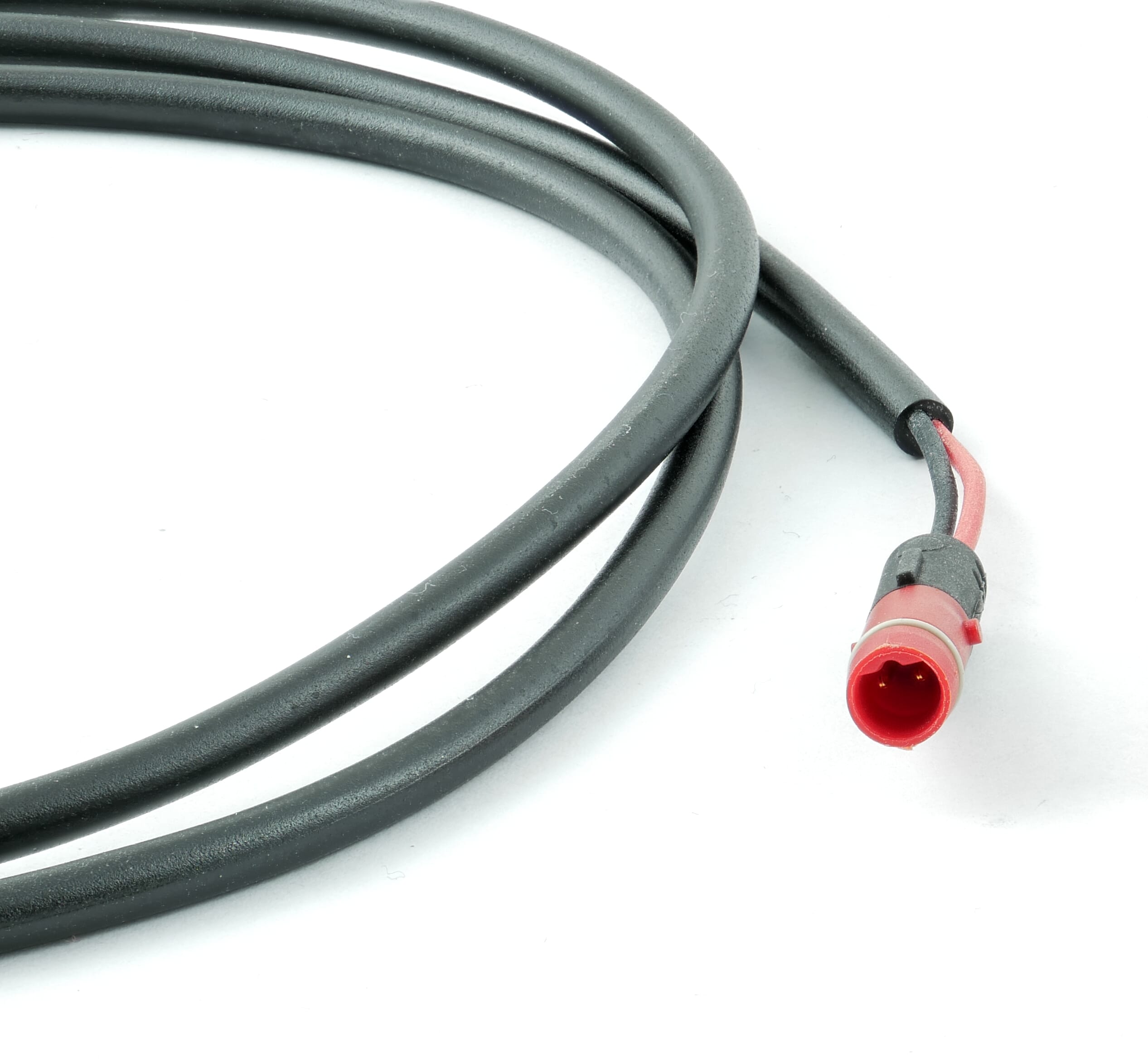

BROSE light cable rear light

Original Brose light cable for the rear light. Use it to connect your Brose eBike drive unit to a suitable rear light. Make sure you use the correct version of the cable. The 894 mm version is compatible with Brose motors with an aluminium housing. Brose Mag (magnesium) drives require the 1400 mm light cable. The connections are also clearly shape-coded. This means that the plug only fits into the correct connection on your eBike. To retrofit a completely new lighting system, you also need the Brose front light cable.

Features of the Brose rear light cable

• original connection cable
• for Brose Mag & aluminium motors
• shape-coded connections
• 2-core cable with protective jacket

Important notes on the Brose rear light cable

The original Brose motors do not have overload or overvoltage protection. Therefore, when connecting your lighting system to the Brose motor, make sure you use suitable lamps. The following maximum values apply to:

Headlights Brose aluminium (Alu) motors

Voltage: 6 V
max. current: 2.0 A
max. power: 12 W

Rear light Brose aluminium (Alu) motors

Voltage: 6 V
max. current: 0.1 A
max. power: 0.6 W

Headlight Brose magnesium (Mag) motors

Voltage: 12 V
max. current: 2.0 A
max. output: 24 W

Rear light Brose Magnesium (Mag) motors

Voltage: 12 V
max. current: 0.2 A
max. power: 2.4 W

If you are unsure about compatibility, please contact our customer service.
