Busch and Müller Briq-XL E - Headlamp with bend lighting

With its digital cornering light, the Busch and Müller Briq-XL E sets completely new standards in terms of eBike lighting. This intelligent feature dynamically adapts to the handlebar angle and tilt angle of the eBike to optimally illuminate bends without dazzling oncoming traffic. The aluminium housing reliably protects the headlight and ensures high visibility from the side thanks to three light openings. There are LEDs on the rear to indicate high beam and bend lighting as well as Bluetooth. With a large reflector and modern control electronics, the Briq-XL E offers precise light distribution and high energy efficiency. The high beam can be operated using the high beam button supplied. Depending on the option selected, you will receive a wired button or a Bluetooth button.

Note: The splitter cable is compatible with the Bosch Smart System. The ends can be stripped for other systems.

Features of the Busch and Müller Briq-XL E headlight with cornering light

• eBike headlight with daytime running light, cornering light & high beam
• Incl. handlebar bracket, high beam switch & connection cable
• Control LEDs for high beam, bend lighting & Bluetooth
• With light sensor for daytime running light
• Protection class IP67 (dust & waterproof)
• Luminosity: 150-220 lux, 2,000-8,500 lumen
• Power consumption: 16-60 watts

App connection of the Busch and Müller Briq-XL E

The Briq-XL eBike headlight can be conveniently configured via app. The connection to the Busch and Müller app via Bluetooth enables the light field to be customised. In addition to preset modes for city, road and off-road, individual settings can also be made for daytime running light, low beam, high beam and light width.

Scope of delivery of the Busch and Müller Briq-XL E

The following parts are included in the standard scope of delivery without splitter cable:

• 1x Busch and Müller Briq-XL E - headlight with cornering light

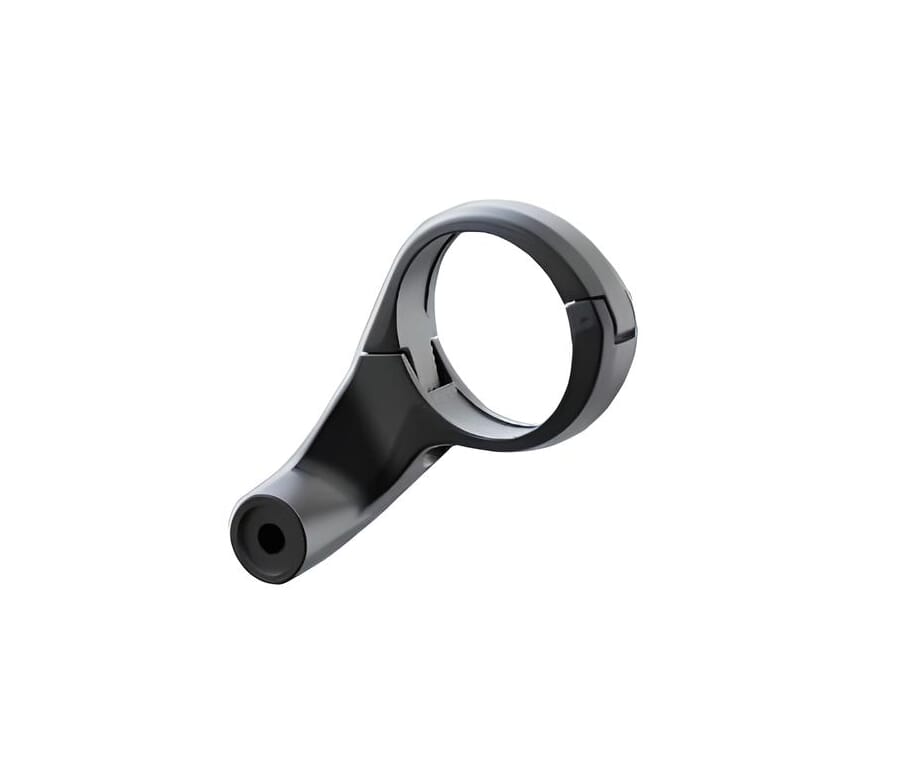

• 1x aluminium handlebar bracket (31.8 or 35.0mm handlebar clamp)

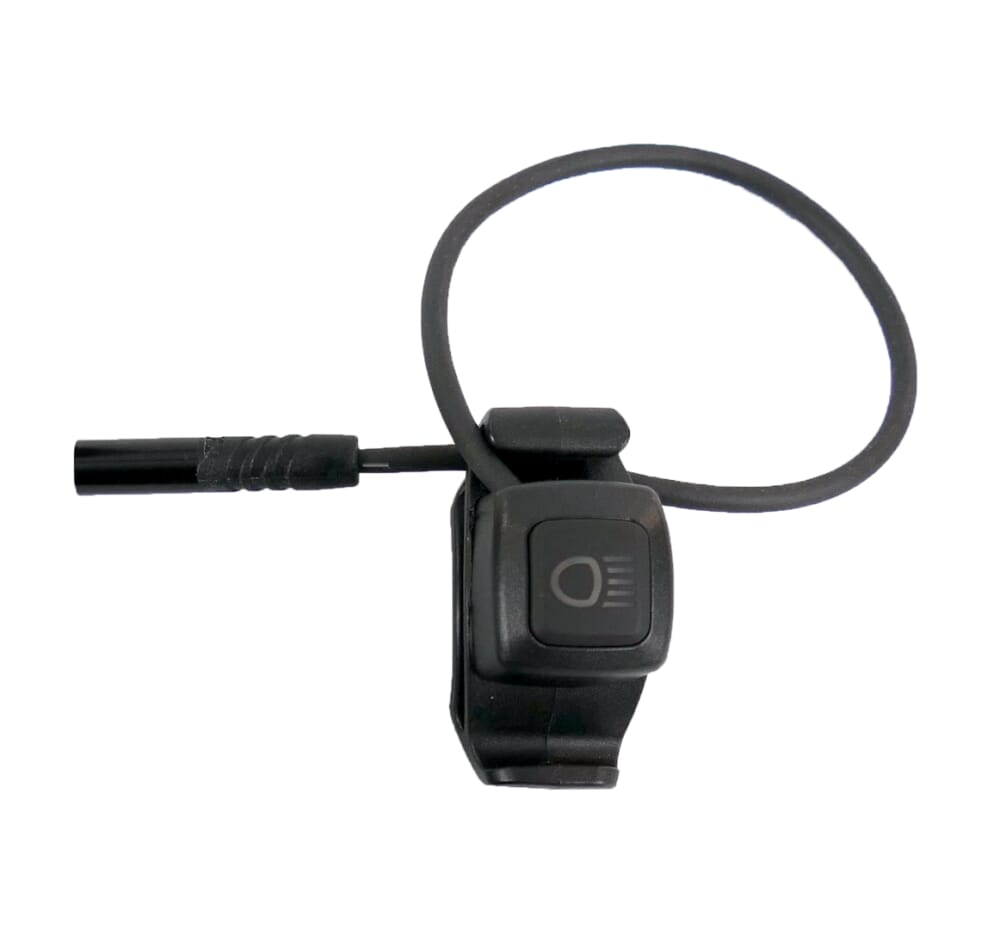

• 1x high beam switch (wired or Bluetooth)
• 2x connection cables (1x Bosch Smart System front light cable, 1x universal cable with open end)

For the option with splitter cable, the splitter cable adapter set is included in addition to the standard scope of delivery:

• 1x long adapter cable
• 1x splitter
• 2x connection cable (1x Bosch Smart System front light cable, 1x Bosch Smart System low power port cable)
