Diamant SUVEA Trip Plus - 2025 | CX | 800/600Wh

Preview: Diamant SUVEA Trip Plus 2025 - hay green

Preview: Diamant SUVEA Trip Plus 2025 - midnight blue

Preview: Diamant SUVEA Trip Plus 2025 - clay beige

Preview: Diamant SUVEA Trip Plus 2025 - Accessory Bar

Preview: Diamant SUVEA Trip Plus 2025 - Air tag holder

Diamant SUVEA Trip Plus 2025 - hay green

Diamant SUVEA Trip Plus 2025 - midnight blue

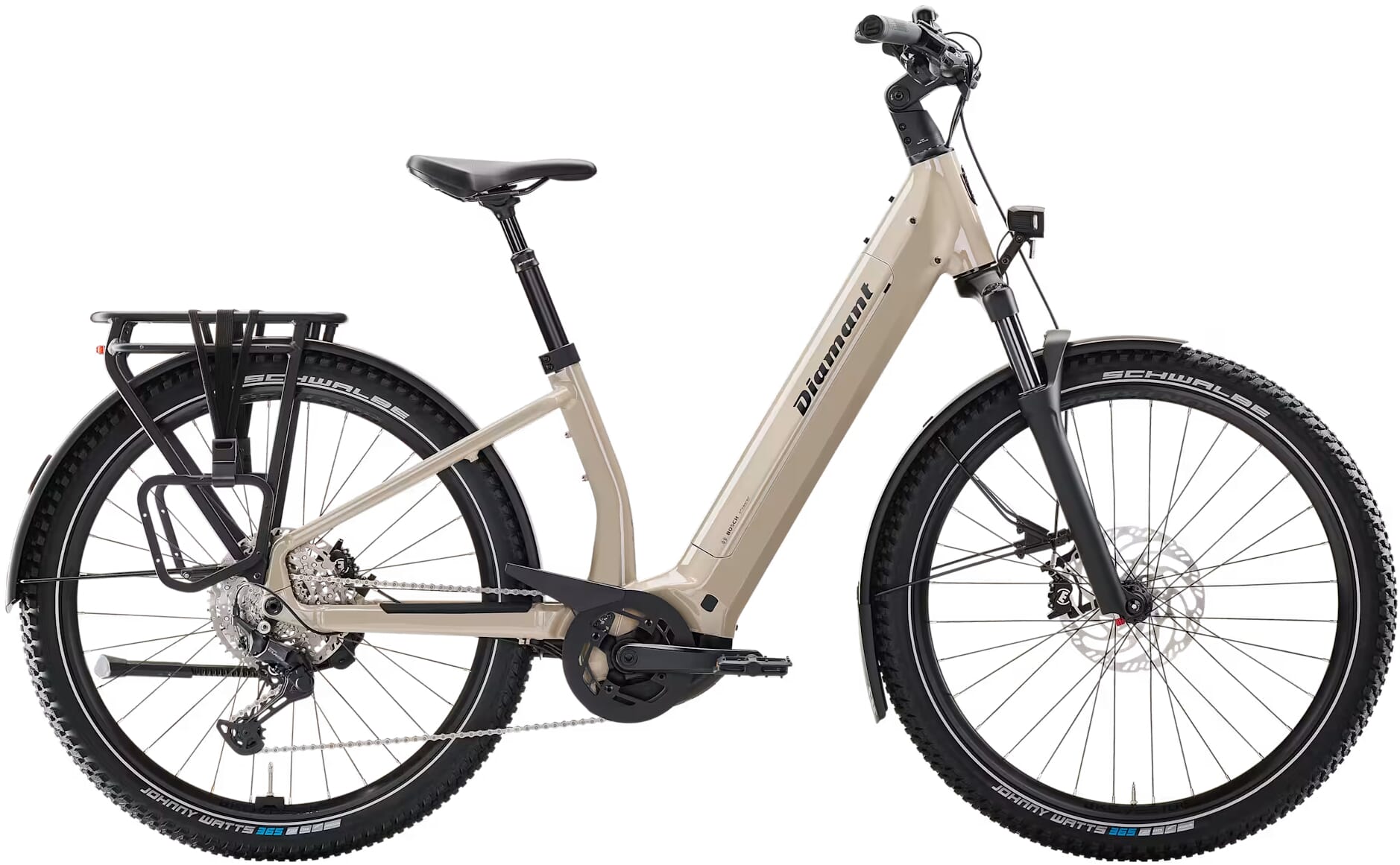

Diamant SUVEA Trip Plus 2025 - clay beige

Diamant SUVEA Trip Plus 2025 - Accessory Bar

Diamant SUVEA Trip Plus 2025 - Air tag holder

From 4,599.00€

Prices incl. VAT plus shipping costs

Item number: 11220-001
Manufacturer Part Number: 5332202
EAN: 197216153528

Close menu

The Diamant SUVEA Trip Plus sets new standards in the trekking eBike sector. The combination of high-quality equipment, e-MTB components and clever solutions makes the SUVEA a true all-rounder. Powered by a powerful fifth-generation Bosch Performance Line CX motor, the SUVEA Trip Plus is ideally equipped for any challenge. The Clever Rack luggage rack not only offers plenty of space for luggage, but also numerous attachment points for accessories. The optional Accessory Bar provides additional storage space for your equipment. Other clever features of the Diamant SUVEA: guide shaft for internally routed cables, Apple Air tag holder, PowerMore mount on mudguard.

Features of the Diamant SUVEA Trip Plus

convertible trekking eBike
85 Nm Bosch Performance Line CX motor
800 Wh or 600 Wh PowerTube battery
Accessory bar (top tube) can be retrofitted
Large number of mounting points
PowerMore & ConnectModule ready

eBike24 recommends: The Diamant SUVEA Trip Plus is the perfect eBike for extended tours and travelling. If you're looking for a reliable eBike with lots of mounts and powerful components, the SUVEA Trip Plus is just right for you.

Specifications

E-Bike Types:	SUV E-Bike, Trekking e-Bikes
Model year:	2025
Battery capacity:	600 Wh - 699 Wh, 800 Wh - 899 Wh, Dual Battery compatible
Drive system:	Bosch drive
Manufacturer:	Diamant
Frame type:	Low-entry / Wave
Derailleur/drive type:	Derailleur - chain drive
e-bike load capacity:	more than 150 kg
Battery option:	Dual Battery compatible
Battery position:	Intube battery / frame integrated
Bosch System:	Bosch Performance Line CX from 2025 Smart System
Frame:	hydroformed aluminum tubes, Smart Routing for cables, UDH dropout, suitable for belt drive, ring lock mount
Fork:	SR Suntour Mobie 34 Boost, air spring, lockable, 100mm travel
Battery:	Bosch PowerTube 800 Wh \| Bosch PowerTube 600 Wh
Tyres:	Schwalbe Johnny Watts 365, with reflective stripe, puncture protection, 65-584
Saddle:	Selle Royal Vivo Moderate Ergo with Royalgel
Seat post:	Spring-loaded, aluminum, 300mm / 350mm long with adjustable spring hardness
Carrier:	Diamant Clever Rack Pro
Weight:	Size S-M:28.40 kg (600 Wh) / 29.30 kg (800 Wh)
Item:	Diamant SUVEA Trip Plus 2025
Colour:	Hay Green \| Midnight Blue \| Clay Beige
Stem:	Aluminum, adjustable, 31.8 mm, Blendr compatible, with display mount
Display:	Bosch Kiox 500
Side stand:	Pletscher Comp Flex 40
Chainring:	Aluminum, 40 teeth, narrow-wide tooth profile, chain guard
Spring travel:	100 mm
Grips:	Ergotec EG Active Flex, with clamp, with damping adjustment
Motor:	Bosch Performance CX Gen.5 Smart System - 85 Nm
Rear light:	Spanninga Pimento Large, with integrated brake light
Front light:	Herrmans Nordic MR5-E, 140 lumen, LED
Pedal:	VP-536, Nylon platform
Front hub:	Shimano TC500, aluminium, Center Lock disc mount, 110 x 15 mm thru axle
Rear hub:	Shimano TC500 aluminium, Centerlock, 148x12 mm thru axle
Wheel size:	28"
Handlebar:	KTM Line rizer20 640mm
Permissible total weight:	160 kg
Crank:	ProWheel, Aluminium
Cassette:	Shimano CUES LG400, LINKGLIDE, 11-50 teeth, 11-speed
Rear derailleur:	Shimano CUES U6000 GS
Chain:	Shimano LG500
Shift lever:	Shimano CUES U6000 with optical gear indicator, 10-speed
Charger:	Bosch Smart System Standard Charger - 4A - 230 V
Additional battery:	Bosch PowerMore 250 ready
Disc brakes:	Magura MDR-C, 203mm
Control unit:	Bosch LED Remote
Brake:	Hydraulic 4-piston disc brake, Magura MT Thirty
GPS:	No - Bosch ConnectModule Ready + Apple AirTag holder
