Diamant SUVEA Trip Pro 2025 SUV eBike | CX motor

Preview: KTM Macina Tour CX 610 2024 hay green

Preview: Diamant SUVEA Trip Pro 2025 - midnight blue

Preview: Diamant SUVEA Trip Pro 2025 - clay beige

Preview: Diamant SUVEA Trip Pro 2025 - Accessory Bar

Preview: Diamant SUVEA Trip Pro 2025 - Air tag holder

Diamant SUVEA Trip Pro 2025 - midnight blue

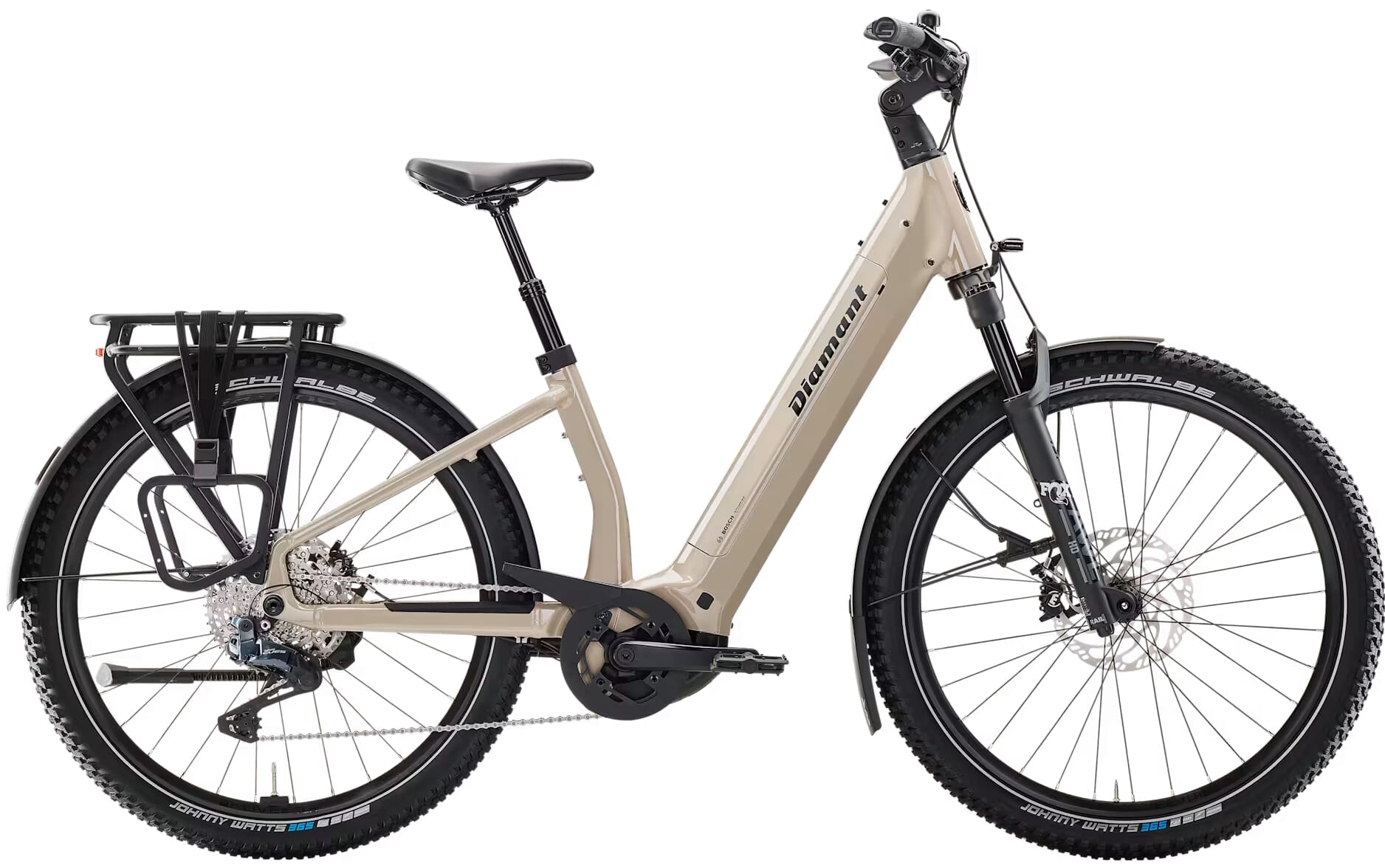

Diamant SUVEA Trip Pro 2025 - clay beige

Diamant SUVEA Trip Pro 2025 - Accessory Bar

Diamant SUVEA Trip Pro 2025 - Air tag holder

From 5,599.00€

Prices incl. VAT plus shipping costs

Item number: 11219-001
Manufacturer Part Number: 5332190
EAN: 197216153405

Close menu

Hardly any other e-bike is as versatile as the Diamant SUVEA Trip Pro. It combines elements from the trekking and city segments with powerful e-MTB components. Particularly noteworthy is the powerful Bosch Full-Power 5th Generation Performance Line CX motor with either an 800 Wh or 600 Wh battery. Thanks to the optional Accessory Bar, you can easily retrofit a top tube to your Diamant SUVEA low-step bike, giving you additional space for accessories and luggage. The Clever Rack luggage rack also offers plenty of space for equipment thanks to its numerous attachment points.

Features of the Diamant SUVEA Trip Pro

Extremely versatile trekking ebike
Bosch Performance Line CX Gen.5 motor - 85 Nm
Optional 800 Wh or 600 Wh battery - Removable battery
Compatible with Bosch PowerMore 250 Wh
Electronic CUSE U8050 Di2 gearshift
Air Tag mount on the motor cover

Ebike24.com recommends: The SUVEA Trip Pro is the perfect trekking e-bike for all frequent riders. With its numerous clever features, the SUVEA will completely convince every touring cyclist.

Specifications

E-Bike Types:	SUV E-Bike, Trekking e-Bikes
Model year:	2025
Battery capacity:	600 Wh - 699 Wh, 800 Wh - 899 Wh, Dual Battery compatible
Drive system:	Bosch drive
Manufacturer:	Diamant
Frame type:	Low-entry / Wave
Derailleur/drive type:	Derailleur - chain drive
e-bike load capacity:	more than 150 kg
Battery option:	Dual Battery compatible
Battery position:	Intube battery / frame integrated
Bosch System:	Bosch Performance Line CX from 2025 Smart System
Frame:	hydroformed aluminum tubes, smart routing for cables, UDH dropout, suitable for belt drive, ring lock mount
Fork:	Fox 36 AWL HD, air spring, sweep adjust, 100mm travel
Battery:	Bosch PowerTube 800 Wh \| Bosch PowerTube 600 Wh
Tyres:	Schwalbe Johnny Watts 365, with reflective stripe, puncture protection, 65-584
Saddle:	Selle Royal Vivo Moderate Ergo with Royalgel
Seat post:	KTM Line Elegance suspension 30.9/300
Carrier:	Diamant Clever Rack Pro
Weight:	Size S-M: approx. 28.50 kg (600 Wh) / 29.40 kg (800 Wh)
Item:	Diamant SUVEA Trip Pro 2025
Colour:	Hay Green \| Midnight Blue \| Clay Beige
Stem:	Aluminum, adjustable, 31.8 mm, Blendr compatible, with display mount
Display:	Bosch Kiox 500
Side stand:	Pletscher Comp Flex 40
Chainring:	Aluminium, 40 teeth, narrow-wide tooth profile, chain guard
Spring travel:	100 mm
Grips:	Ergotec EG Active Flex, with clamp, with damping adjustment
Motor:	Bosch Performance CX Gen.5 Smart System - 85 Nm
Rear light:	Spanninga Pimento Large, with integrated brake light
Front light:	Supernova Starstream, 500 lumen, LED
Pedal:	VP-536, Nylonplattform
Front hub:	Shimano TC500, aluminium, Center Lock disc mount, 110 x 15 mm thru axle
Rear hub:	Shimano TC500 aluminium, Centerlock, 148x12 mm thru axle
Wheel size:	28"
Handlebar:	Ergotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16° curvature
Permissible total weight:	160 kg
Crank:	ProWheel, Aluminium
Cassette:	Shimano CUES LG400, LINKGLIDE, 11-50 teeth, 11-speed
Rear derailleur:	Shimano CUES U8050 Di2, 50 teeth on the largest sprocket
Chain:	Shimano LG500
Shift lever:	Shimano EN605 Di2, 11 speed
Charger:	Bosch Smart System Standard Charger - 4A - 230 V
Additional battery:	Bosch PowerMore 250 ready
Disc brakes:	Magura MDR-C, 203mm
Control unit:	Bosch LED Remote
Brake:	Hydraulic 4-piston disc brake, Magura MT Thirty
GPS:	No - Bosch ConnectModule Ready + Apple AirTag holder
