€79.00
Currently not available

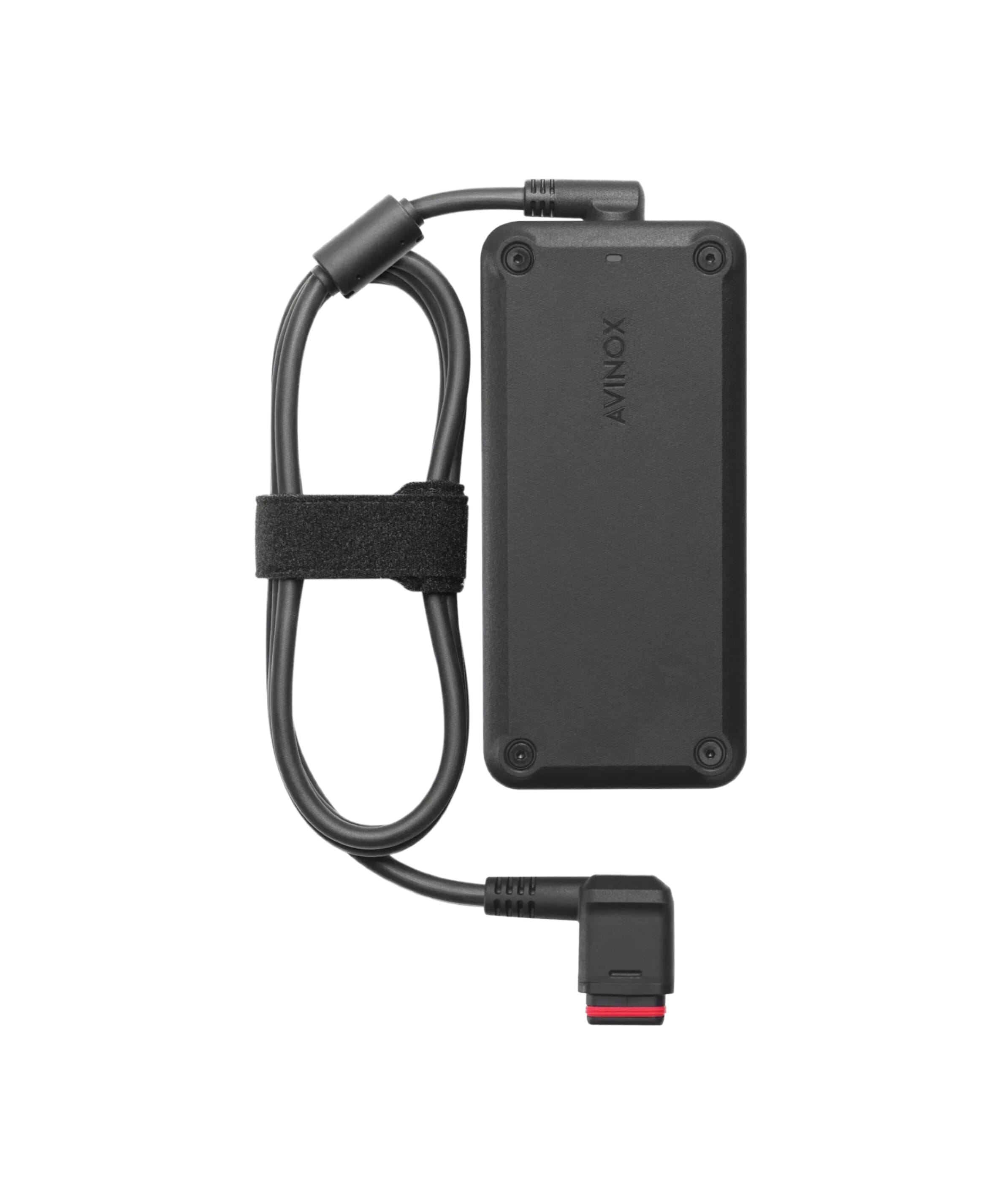

The DJI Avinox 4A charger allows safe charging of your removable Avinox RS800 or RS600 battery. It offers a rated output of 168 W, reaching 80% charge in approx. 4.5 hours and 100% in approx. 6 hours. Thanks to its compact size, the charger is ideal for taking with you on the go. The 4A charger is used on e‑bikes equipped with the DJI Avinox M2 or M2S motor. For even faster charging, the DJI Avinox 12A charger is also available.
Note: This charger features a square connector and is only compatible with Avinox batteries that are not permanently installed in the frame and can be removed.
Features of the DJI Avinox 4A charger (square connector)
- 4A charger for Avinox M2 & M2S motors
- 168 W rated output
- With square connector – only for removable Avinox batteries
- Compatible with Avinox RS800 & RS600
- 0–80% in approx. 4.5 hrs
- 0–100% in approx. 6 hrs
- Weight: approx. 544 g
- Available with or without Avinox EU power cable
Compatible models for the Avinox 4A charger (square connector)
The DJI Avinox 4A charger is compatible with the following e‑bike models, among others:
| Charger: | 4A charging current |
|---|---|
| Charging time: | Avinox RS800 battery: From 0 % to 80 %: approx. 4 hrs. 38 min / From 0 % to 100 %: approx. 6 hrs. 3 min | Avinox RS600 battery: From 0 % to 80 %: approx. 3 hrs. 34 min / From 0 % to 100 %: approx. 4 hrs. 36 min |
| Colour: | black |
| Compatibility: | only for removable Avinox batteries (RS800 & RS600) |
| Connection: | Square connector plug |
| DJI Avinox System: | M2, M2S |
| Drive system: | DJI Avinox |
| Item: | DJI Avinox 4A Charger (Square Connector) |
| Item weight: | approx. 544 g |
| Manufacturer: | Amflow, DJI Avinox |
| Measurements: | 150 mm × 70 mm × 32 mm |
| Motor: | compatible with DJI Avinox M2 & M2S motors |
| Nominal capacity: | 168 W |
| Scope of delivery: | 1x DJI Avinox 4A Charger (Square Connector) | optionally with or without EU power cable |
| Voltage input: | AC 90 V to AC 260 V |
