DJI Avinox DP100 Control Display

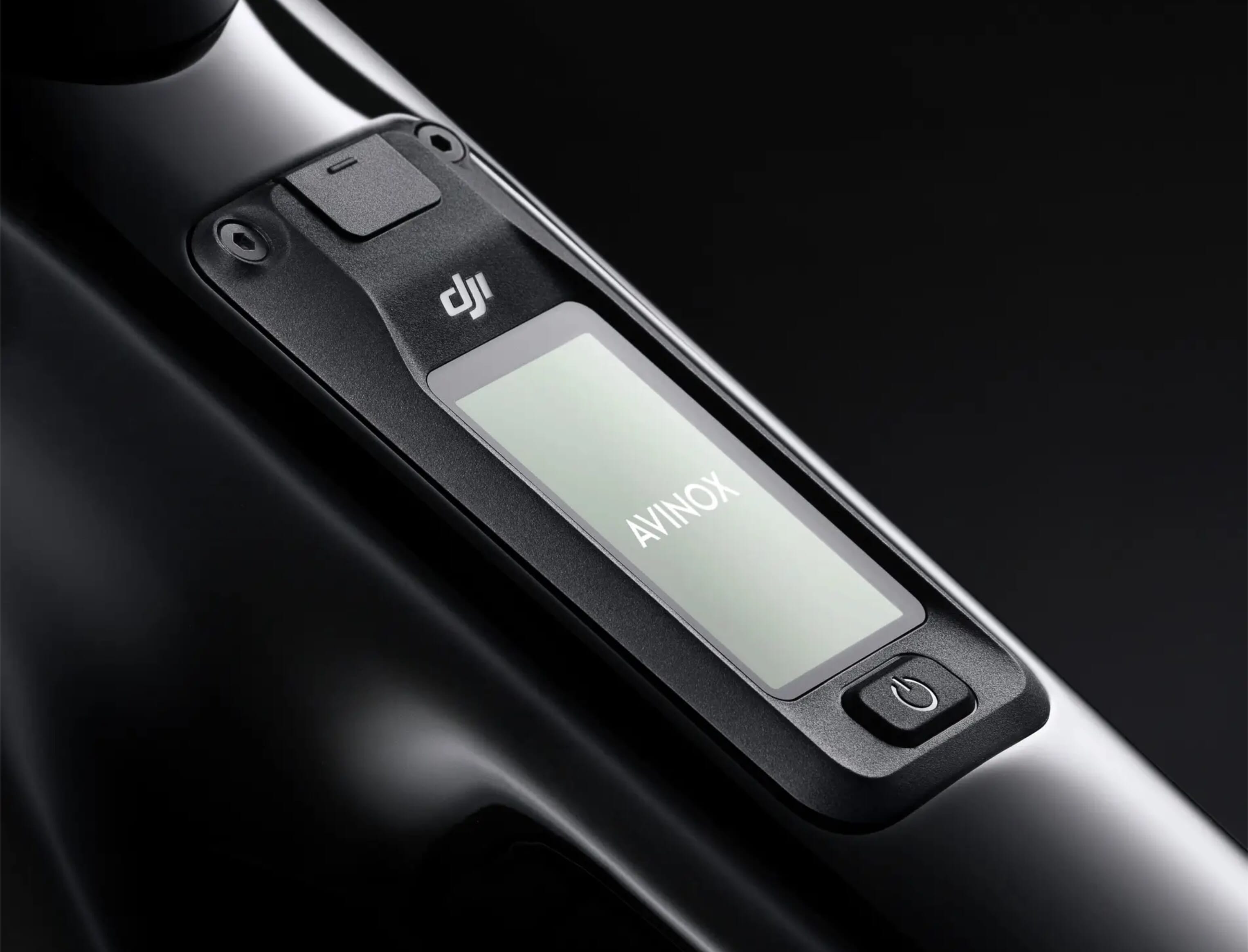

The DJI Avinox DP100 Control Display is part of the AvinoxM1 motor and is installed on models such as the Amflow PL Carbon and Amflow PL Carbon Pro. The 2" OLED touch display offers a display brightness of up to 800 nits and a screen resolution of 326 ppi. Beautifully integrated into thetop tube , the control display is also ideally protected against intemperies, making it dustproof and waterproof. At the same time, the ambient light sensor ensures automatic brightness adjustment and good visibility of the bike screen. The DP100 display is practically glare-free and can always be read, even in strong light or pouring rain. It is compatible with e-bikes with DJI Avinox M1 motors from various brands, including Amflow, Rotwild and Velo de Ville.

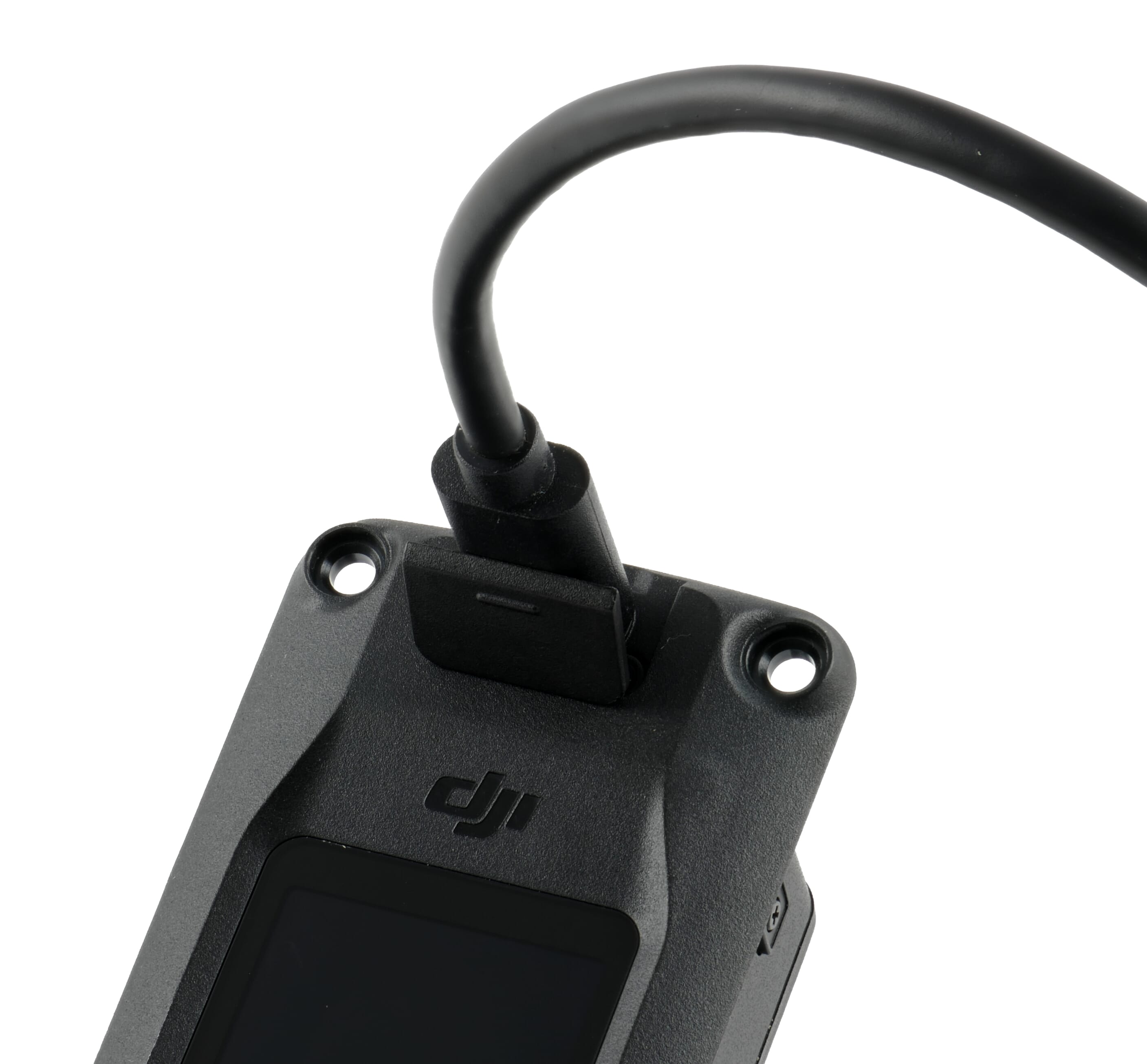

Note: The Avinox DP100 has a USB-C port (USB PD3.0) that supports 65 W fast charging for external devices. For easy charging, use the EBIKE24 USB-C charging cable or alternatively the Avinox charging cable.

Features of the DJI Avinox DP100 Control Display

• DP100 Control Display for Avinox drive
• Compatible with the DJI Avinox M1 motor
• 2 " Oled full colour touch display
• elegantly integrated into the top tube
• Compatible with the DJI Avinox app
• Operation via touch & wireless controller
• Charging of external devices via USB-C socket
• 4G LTE support & Bluetooth BLE 5.1
• IMU, compass, barometer & ambient light sensor

Connectivity & bike screens of the DP100 Control Display

The Avinox DP100 display is switched on via the power button, while operation is carried out via touch directly on the display or via the Bluetooth Wireless Controller Module on the right-hand side of the handlebar. This allows you to switch between the views of the bike screens and access the display settings. If the Control Display is linked to the DJI Avinox app, several of these bike screens can be created and customised. More than 40 riding data such as speed, support level, battery status and calorie consumption are available for customisation. The display is switched off by holding down the power button for a long time.

Anti-theft protection with the DJI Avinox DP100 Control Display

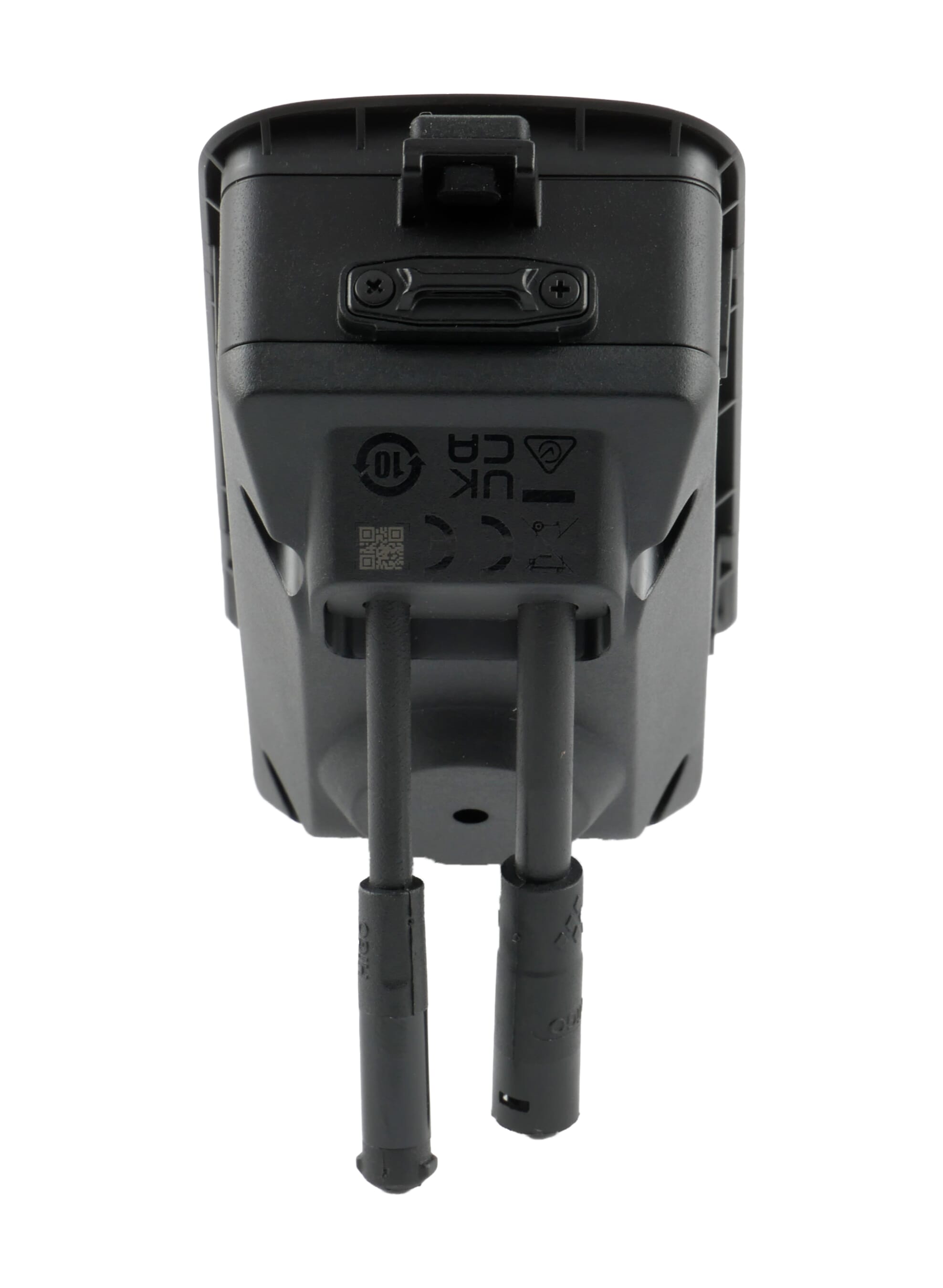

Your e-bike can be equipped with additional anti-theft devices via the DP100 Control Display. These can be selected via the Avinox app and activated separately. The e-bike can be secured via a password directly on the display, via mobile key with the smartphone nearby or with an alarm sound directly on the bike plus notification to the paired smartphone. It is also possible to call up the GPS location via an inserted nano-SIM card. Even if the bike is switched off and is not in the immediate vicinity.

Note: These anti-theft devices can be used in addition to an e-bike lock. The digital features and the acoustic alarm do not replace a physical bike lock!
