Description
With the EBIKE24 Kiox 400C Universal Mount, you can retrofit the Bosch Kiox 400C display to the handlebar or stem of your e‑bike. This display mount offers alternative mounting options compared to the originally intended top‑tube position. It also allows you to use the Kiox 400C display on any e‑bike with the Bosch Smart System.
Note: The sets do not include the Kiox 400C display. It is available separately or as part of the Bosch Kiox 400C retrofit kit.
Features of the EBIKE24 Kiox 400C Universal Display Mount
- Display mount for the Bosch Kiox 400C
- For mounting on the handlebar or stem
- Universally usable on many e‑bikes
- Available in 3 versions
- Alternative to top‑tube mounting
Mounting the Kiox 400C Universal Mount on Handlebar & Stem

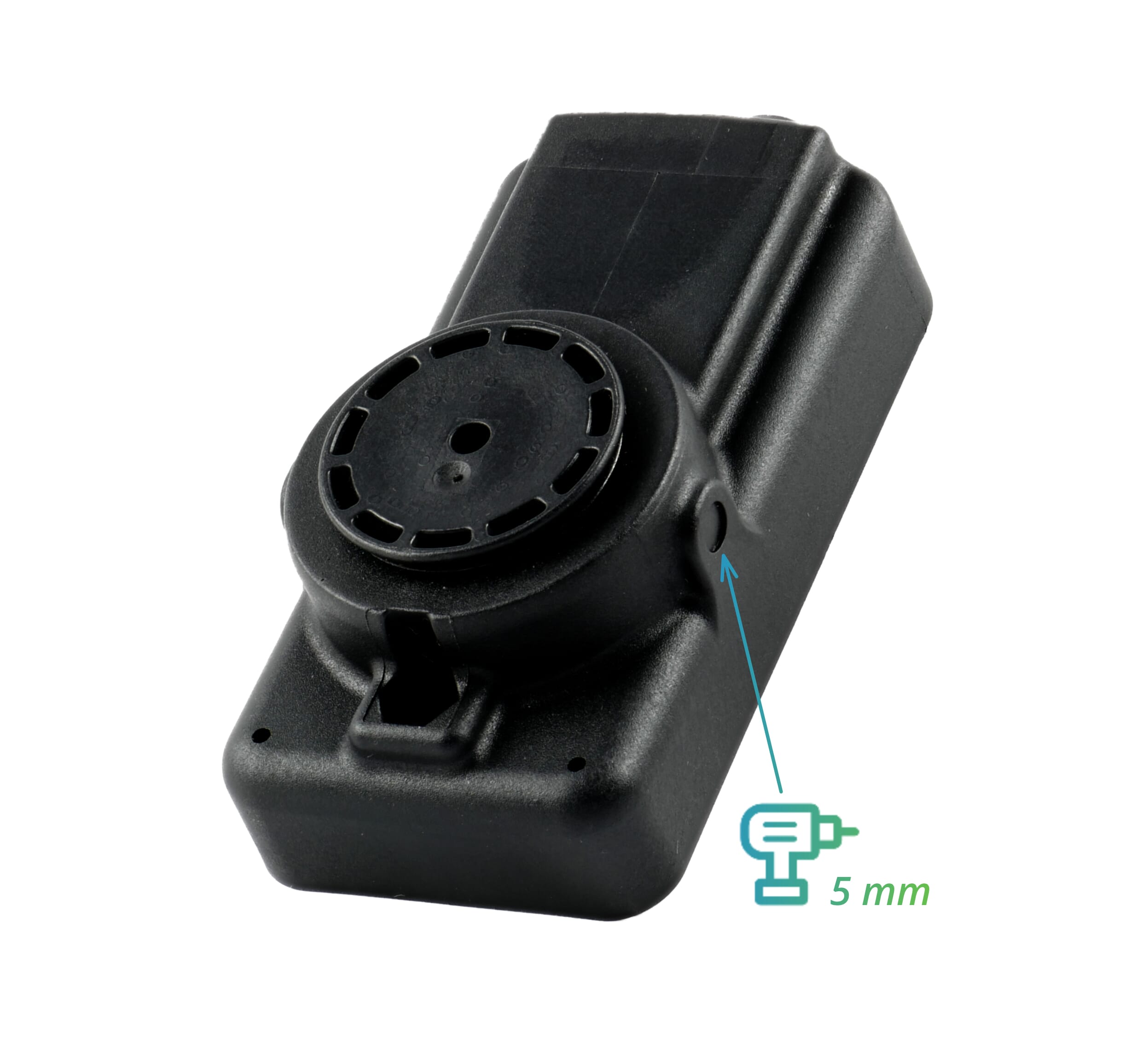

To mount the Bosch Kiox 400C using the handlebar or stem mount, a hole must first be drilled into the EBIKE24 universal mount. For this, use a 5 mm wood drill bit with centring tip. Furthermore, a T10 Torx screwdriver is required for the display mounting screw, a torque wrench set to 2–3 Nm for the M5x16 flat‑head screw, as well as a 3.0 mm Allen key for the handlebar mount screw, a 5.0 mm Allen key for the Fidlock Ahead Cap screw, and a 2.5 mm Allen key for the Fidlock Ahead clamp. Suitable installation tools from brands such as Wera can be found in our e‑bike tools.
Scope of Delivery - EBIKE24 Kiox 400C Universal Mount
The universal EBIKE24 display mount for the Bosch Kiox 400C is available in 3 versions. The sets include the following components:

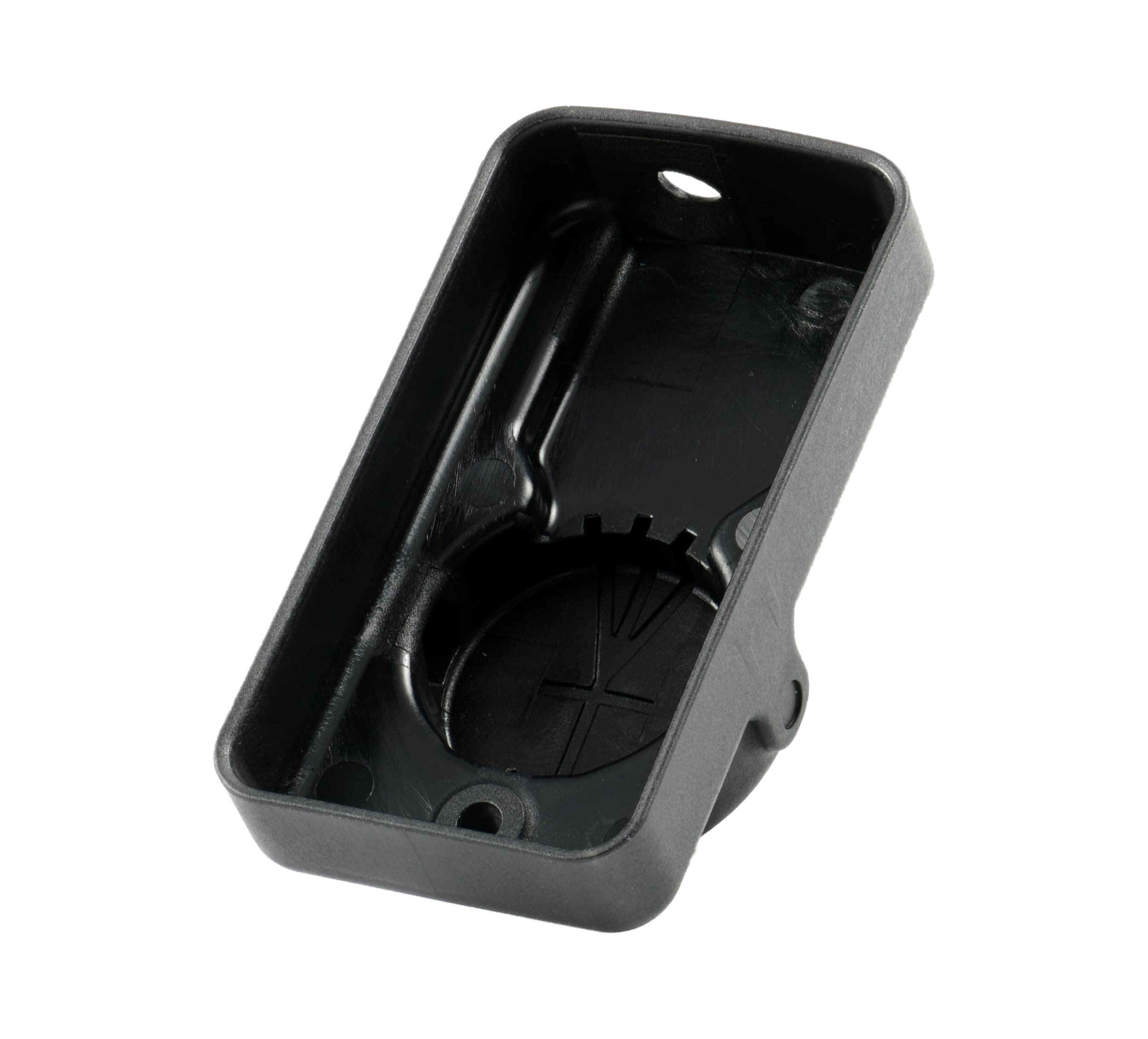

EBIKE24 Kiox 400C Universal Display Mount - single:
- 1x EBIKE24 Kiox 400C display mount
EBIKE24 Kiox 400C Universal Display Mount - incl. single‑arm handlebar mount 31.8 & 35 mm:
- 1x EBIKE24 Kiox 400C display mount
- 1x handlebar mount incl. 2 rubber spacers
- 1x wedge‑locking washer (pair)
- 1x M5x16 flat‑head screw
- 1x M4 self‑locking hex nut
- 1x M5 hex nut
- 1x O‑ring 5x2.5 mm black
EBIKE24 Kiox 400C Universal Display Mount - incl. Fidlock Ahead stem mount:
- 1x EBIKE24 Kiox 400C display mount
- 1x Fidlock Vacuum Ahead Cap incl. screw
- 1x Fidlock Ahead Cap clamp incl. screw
- 1x M4 self‑locking hex nut
Properties
| Bosch E-Bike System: | Bosch Smart System |
|---|---|
| Bosch System: | Bosch Active Line Plus from 2024 Smart System, Bosch Active Line from 2024 Smart System, Bosch Cargo Line 2022 - 2025 Smart System, Bosch Cargo Line from 2025 Smart System, Bosch Performance Line 2023 - 2025 Smart System, Bosch Performance Line CX-R from 2025 Smart System, Bosch Performance Line CX 2022 - 2025 Smart System, Bosch Performance Line CX Race from 2023 Smart System, Bosch Performance Line CX from 2025 Smart System, Bosch Performance Line PX from 2025 Smart System, Bosch Performance Line SX from 2024 Smart System, Bosch Performance Line Speed 2023 - 2025 Smart System, Bosch Performance Line Speed from 2025 Smart System, Bosch Performance Line from 2025 Smart System |
| Compatibility: | for Bosch Kiox 400C Display Smart System (BRC3200) |
| Drive system: | Bosch drive |
| Functions: | with cut-out for Apple Airtag on the inside |
| Handlebar clamp: | 31.8 & 35.0 mm |
| Item: | EBIKE24 Kiox 400C Universal Display Holder |
| Manufacturer: | Bosch, eBike24 |
| Mounting: | Depending on the set selected, it is mounted on the stem or handlebar. |
| Note: | The sets do NOT include a Kiox 400C display. This is available separately. |
