FIT 2.0 electronic frame lock Linka

Preview: FIT 2.0 electronic frame lock Linka Preview: FIT 2.0 electronic frame lock Linka - Dimensions & hole spacing
FIT 2.0 electronic frame lock Linka

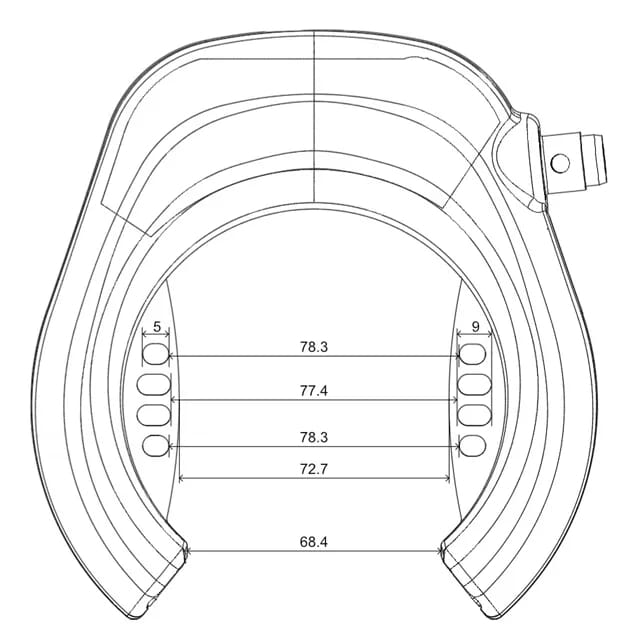

FIT 2.0 electronic frame lock Linka - Dimensions & hole spacing

249.00€

Prices incl. VAT plus shipping costs

  • Item number: 11130
  • Manufacturer Part Number: 501068

Currently not available, we will be happy to request the item for you.

Description Reviews 0 Enquiry
Close menu

Smart security - that's the promise of the Linka electronic frame lock for the FIT 2.0 system. It allows you to secure your e-bike conveniently via smartphone or the FIT 2.0 remote control. The FIT 2.0 frame lock is connected directly to the motor and supplied with power from there. The electronic Linka frame lock can then be opened and closed at the touch of a finger.

Features of the Linka FIT 2.0 electronic frame lock

  • Frame lock for e-bikes
  • Electronic lock
  • Controlled via the FIT e-bike control app
  • compatible with FIT 2.0 e-bike remote control
  • Only as a spare part

Notes on fitting and retrofitting the Linka frame lock

The Linka electronic frame lock for the FIT 2.0 system cannot simply be retrofitted. Please contact your e-bike manufacturer beforehand if you need to modify your system. Please also note that the connection cable must be routed into the motor compartment for installation. The Linka frame lock is connected using a Higo Micro Q male connector. The Digital Key or Display Lock function must be enabled for use via the app.

Specifications
Manufacturer: FIT E-Bike System
FIT E-Bike System Integration: FIT 2.0
Item: FIT 2.0 electronic frame lock Linka
Scope of delivery: 1x FIT 2.0 electronic frame lock Linka incl. 2 mounting screws M5 x 14
Compatibility: Only for e-bikes with FIT 2.0 and Linka frame lock already installed
Maker's ref. no.: 501068
