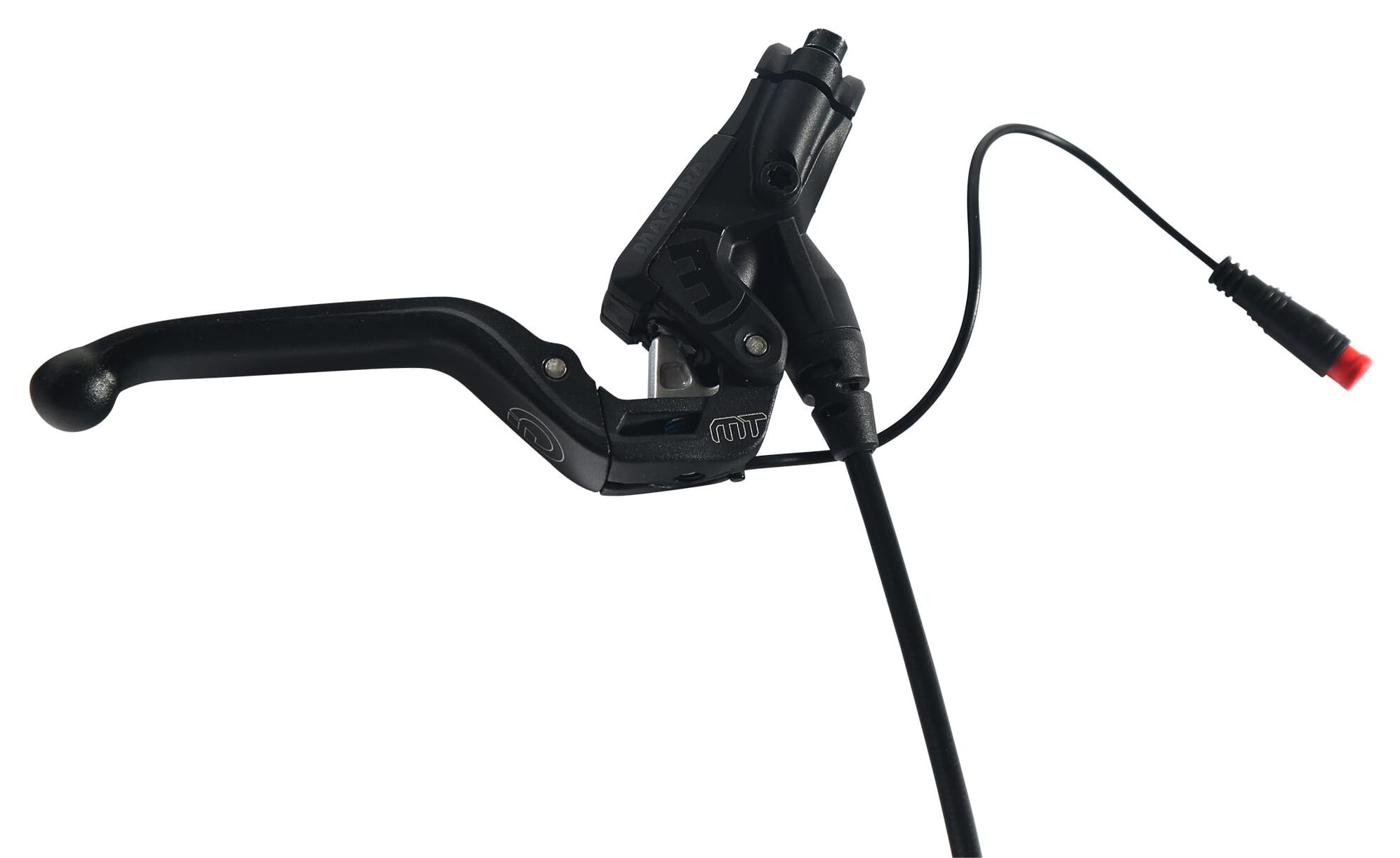

Magura MT4e disc brake rear brake for Flyer FIT eBikes

MAGURA MT4e

Rear brake suitable for all Flyer FIT eBikes with the 3.5" Flyer D1 display.

The "all-round carefree brake" for the eBike! The MT4e is based on the proven technologies of the MT series and has been specially optimised for the higher requirements of an S-pedelec or eBike. The integrated interruption switch activates the brake light before the braking effect occurs, thus effectively warning following road users and/or switching off the drive during braking for maximum safety. Special emphasis was placed on high-quality materials for a long service life. In combination with new Sport brake pads and the MDR-P, MDR-C or Storm HC brake discs, it finally unfolds its full effect in terms of braking performance and durability. The new brake discs boast greater lateral rigidity and heat resistance with reduced vibration. The adjustable lever width(Reach Adjustment) allows you to find your individual setting.

Features

• eBike optimised
• Brake light
• Interrupter switch
• Carbotecture grip housing
• Grip width adjustment (with tool)
• 3-finger ball-end brake lever
• Weight 250g

Range of use

• S-pedelec
• eBike
• city
• Touring & Trekking

Technologies

Carbotecture®
A mixture of high-tech polymers and carbon or glass fibres is transformed into a plastic granulate in several complex processes. During the manufacturing process from this granulate to the finished component, the carbon fibres are optimally aligned to the load requirements. With this Carboflow process, the granulate can be injection moulded into any desired shape. Compared to the classic lightweight material aluminium, our Carbotecture® offers significant advantages: With the same tensile and breaking strength as aluminium, Carbotecture® is 50% lighter, so it weighs only half as much!

eBike technology - mechanical switch in the brake lever activates the brake light and controls the drive circuit when braking

Easy Bleed Technology - quick and easy bleeding

Triple Arch Design - for optimum rigidity of the brake calliper

The scope of delivery of this brake includes an MT4e rear brake with a cable length of approx. 2000mm and a MAGURA QM 41 adapter for a 180mm brake disc.


Note: The Magura MT4e disc brake is supplied without the separately available 180mm brake disc.

Recommended brake discs: MAGURA MDR-P and MAGURA MDR-C or Storm HC
