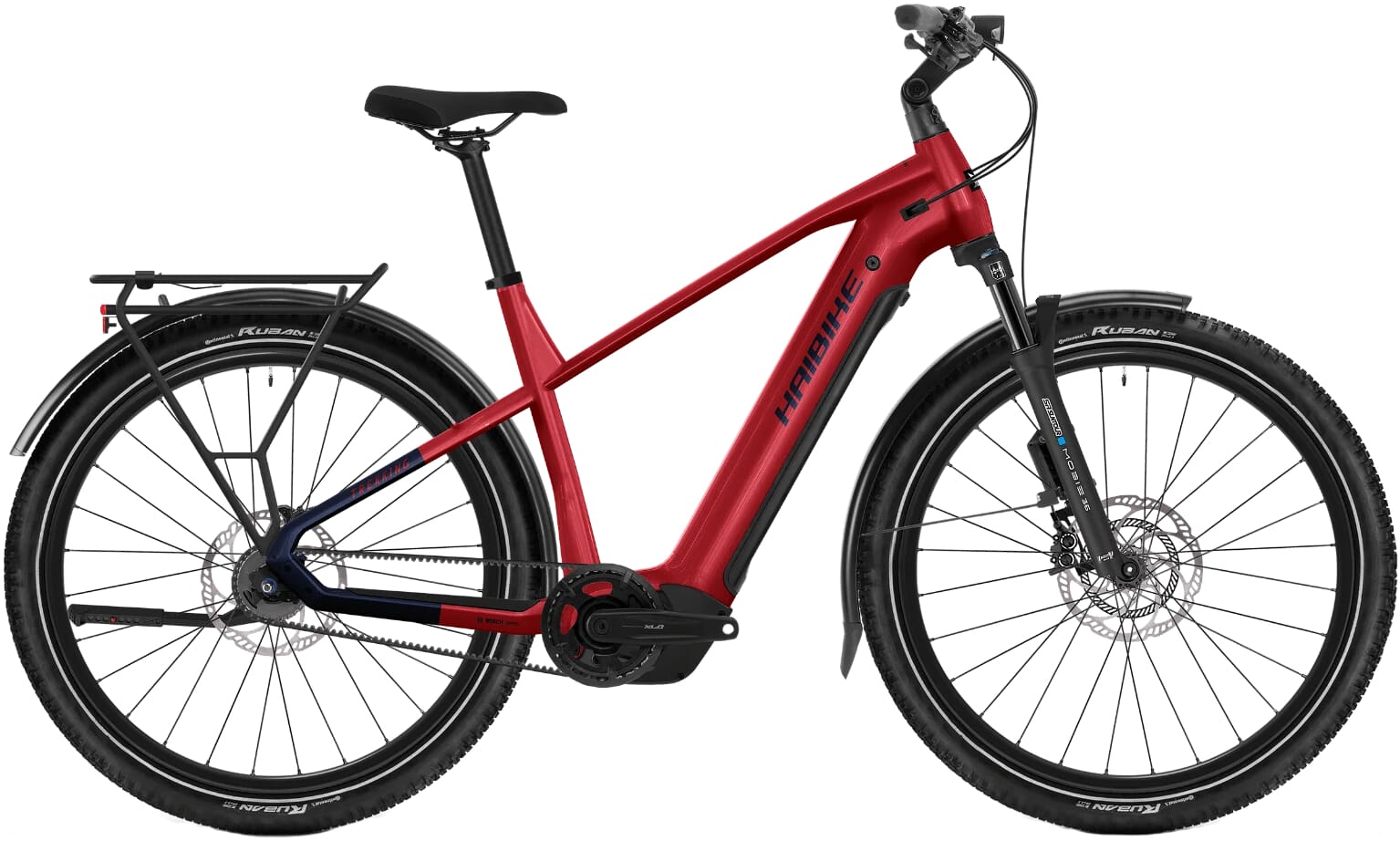

Haibike Trekking 9 ABS - 2026

4,999.00€

Item number: 10240-001
Manufacturer Part Number: 45428530
EAN: 4054624166853

The Haibike Trekking 9 ABS 2026 is a versatile trekking electric bike with high-quality components. The Bosch PowerTube 800Wh battery integrated in the down tube ensures an impressive range on all your tours. At the same time, you get powerful acceleration and support up to 25 km/h from the Bosch Performance Line CX Gen5 Smart System motor. The Bosch Kiox 500 display attached to the handlebars allows you to keep an eye on all riding data such as speed, range and the current support level. The bike is controlled via the Bosch LED remote control unit, which you can also use to activate the lights and the push assist.

Features of the Haibike Trekking 9 ABS - 2026

Trekking e-bike with Bosch Smart System
Bosch Performance Line CX Gen5 motor
Bosch PowerTube 800Wh battery
Bosch Kiox 500 + LED remote
Magura MT-C brakes with anti-lock braking system (ABS)
SR Suntour Mobie34 DS fork

Safety on the Haibike Trekking 9 ABS - 2026

The Magura MT-C brake with integrated anti-lock braking system (ABS) ensures maximum safety and control in every situation. The ABS allows you to brake simultaneously with the front and rear brakes. This prevents the front wheel from locking, which can help prevent you from slipping on the Haibike Trekking 9 ABS 2026. It doesn't matter what surface you are on. The anti-lock braking system works on both tarmac and gravel paths. Furthermore, the SR Suntour Mobie34 DS fork optimally cushions the Trekking e-bike on uneven surfaces.

E-Bike Types:	Cross E-Bike, Trekking E-Bike
Model year:	2026
Battery capacity:	800 Wh - 899 Wh
Drive system:	Bosch drive
Manufacturer:	Haibike
Derailleur/drive type:	Hub gear - belt drive
Bosch System:	Bosch Performance Line CX from 2025 Smart System
Frame:	27.5" aluminium frame
Fork:	SR Suntour Mobie34 DS \| Air, 100mm
Battery:	Bosch PowerTube 800Wh
Gear shift:	Shimano Nexus 5-speed
Tyres:	Continental Ruban Reflex \| 58-584, reflective stripes
Brakes:	Magura MT C Allroad ABS, 4 pistons, 203 mm
Saddle:	Selle Royal Essenza
Seat post:	Dropper-Post Remote \| 34.9 mm, aluminium
Carrier:	System luggage carrier, MIK
Item:	Haibike Trekking 9 ABS - 2026
Colour:	fruity red/blue glossy
Headlights:	Litemove SE-110, 110 lux
Stem:	XLC A-Head adjustable
Display:	Bosch Kiox 500 + LED Remote
Side stand:	Ursus R90 Mooi Plus, 40 mm, Adjustable
Maker's ref. no.:	10240-001: 45428530 \| 10240-002: 45428540 \| 10240-003: 45428550 \| 10240-004: 45428560
Mudguard:	Curana Apollo 70, aluminium
Material:	Aluminium
Spring travel:	Front: 100mm
Grips:	Herrmans DD42, Lockable Grips
Rims:	Schürmann YAK Disc 25-584 32H
Motor:	Bosch Performance Line CX Gen5 \| 250W, 25km/h, 85Nm
Headset:	Cane Creek Viscoset
Rear light:	Spanninga Aerline 2.0 Brake
Front hub:	Shimano HB-TC500-15-B 15x110 mm, 32H
Rear hub:	Shimano Nexus SG-C7000-5D, 32H
Handlebar:	Ergoriser \| oversize, 720 mm
Permissible total weight:	150 kg
Chain:	Gates Carbon Drive Belt CDX, 125T
Shift lever:	Nexus Rapidfire
Charger:	Bosch Standard Charger 4Ah
Brake lever:	Magura MT C Allroad Lever
Size:	S = 40cm \| M = 45cm \| L = 50m \| XL = 55cm
