Impulse drive system is a mid-motor system on Kalkhoff / Raleigh / Rixe / Gazelle / Univega - electric bike models.

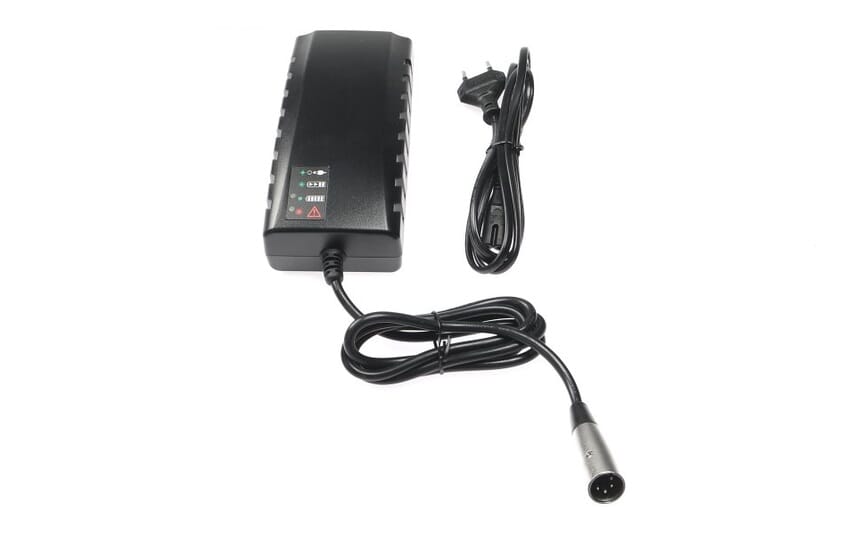

Features of the Derby Cycle charger
- For Impulse batteries of the 1st and 2nd generation
- For a wide range of manufacturers with Impulse mid-motor
- Optionally available with charging tray
- For which motor is the Impulse 1.0 / 2.0 charger suitable?
The Impulse 1.0 / 2.0 charger is suitable for Impulse e-bike drive systems of the first and second generation.
How do I tell the difference between Impulse 1.0 and Impulse 2.0?
The most important feature to distinguish the Impulse 1.0 from the Impulse 2.0 motor is the shift recognition. This reduces the motor power during the shifting process to enable smoother shifting.
Which older chargers are compatible with this charger (successor product)?
Original Derby Cycle Impulse - BSC4203000 or BSC42003000
Which bikes are compatible with the Impulse 1.0 / 2.0 charger?
- other manufacturers with Impulse mid-motor
Note: This original Impulse charger can be purchased with or without the charging tray.
|Drive system:||Impulse drive|
|Impulse / Xion System:||Impulse 2.0|
|Item:||Impulse 1.0 / 2.0 Charger - 36 Volt Battery - with charging base option|
|Scope of delivery:||Charger. Charging station and connection cable|
|Technical data:||Input 230V. AC voltage 50Hz. max. 2.0A<br>Output 42.0V. Direct current. 3.0A|
|Compatibility:||Pulses 1.0 / pulses 2.0|
|Incompatibility:||Impulse EVO / Impulse 3.0 / other drive manufacturers e. g. Bosch, Panasonic, BionX|
