€5,199.00
On order, delivery date unknown
Description

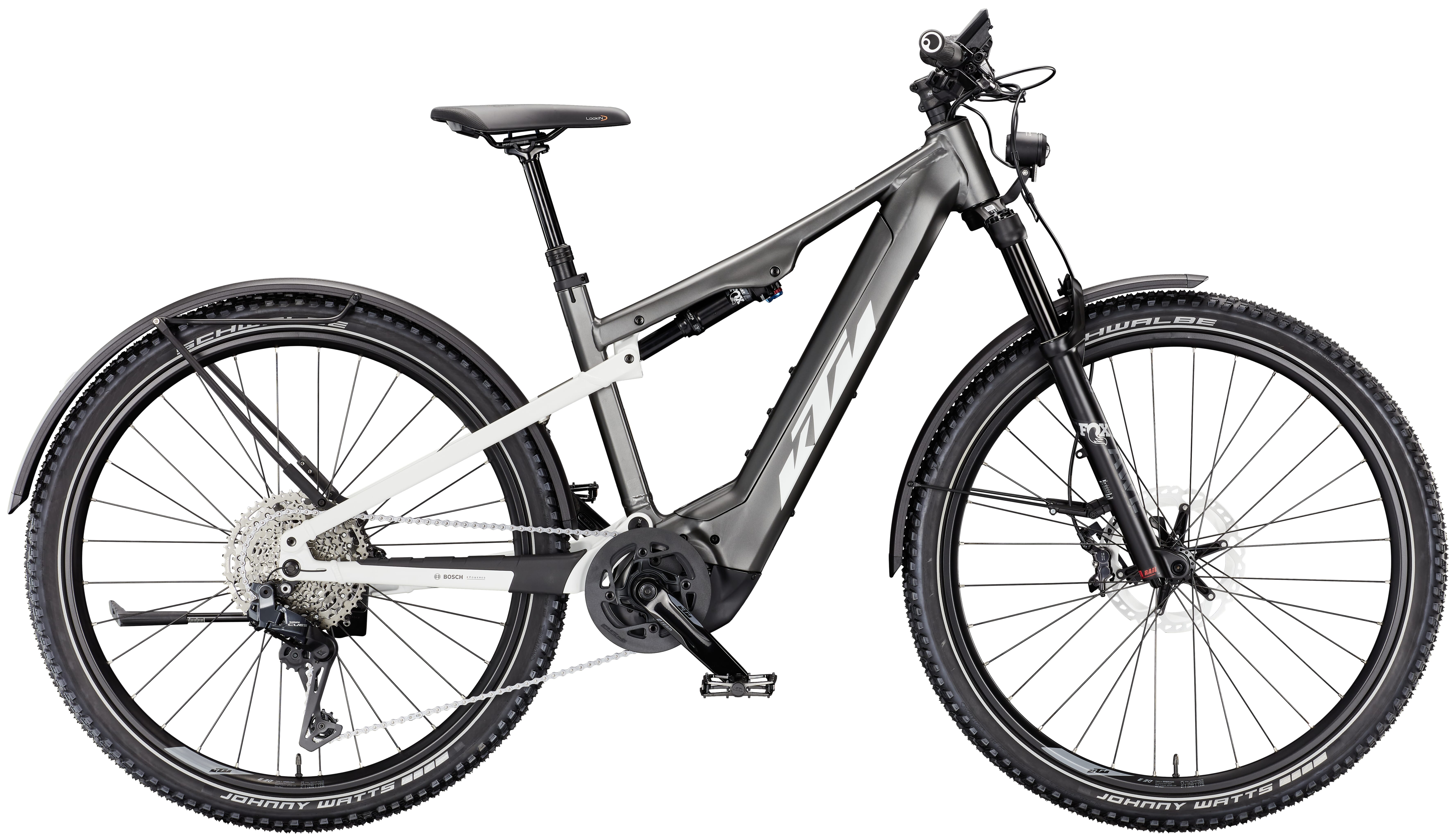

The KTM Macina Chacana 791 LFC - 2026 combines advanced e-MTB technology with extensive everyday and touring functionality. As a full-suspension e-bike with 130 mm front and 125 mm rear travel, it is ideal for riders seeking comfort, versatility and performance on long tours, off-road trails, or daily commuting. Its foundation is the robust Macina Chacana aluminium frame with integrated Bosch PowerTube 750 Wh battery. Combined with the powerful Bosch Performance CX motor, the bike provides support on climbs, against headwinds, or when carrying luggage - with a natural riding feel and excellent range. The compact Bosch Kiox 300 Display impresses with its high-resolution colour TFT screen, intuitive operation, and wireless connectivity, delivering all riding data at a glance and enabling use of the eBike Flow app for navigation and system updates.
With factory-fitted mudguards and integrated front and rear lights, you are well equipped even in poor weather or low-light conditions.
Features of the KTM Macina Chacana 791 LFC - 2026
- KTM Macina Chacana 791 LFC with aluminium frame
- Bosch Performance CX motor with 85 Nm
- Bosch PowerTube 750 Wh battery
- Bosch Kiox 300 Display
- Shimano CUES Di2 U8050-11 SGS derailleur
- FOX 34 Float AWL 29" E 130mm 15x110 fork
Shimano CUES Di2 U8050-11 Derailleur
A technical highlight is the Shimano CUES Di2 U8050-11 SGS derailleur. It combines the electronic precision of Di2 technology with the robustness of the CUES series, specially developed for e-bikes. Shifting is smooth, quiet, and accurate even under load. The Shadow+ design keeps the derailleur compact and protected.
eBike24 recommends: The KTM Macina Chacana 791 LFC is a powerful and comfortable full-suspension e-MTB for riders who want sporty off-road performance as well as reliable everyday usability.
Properties
| Battery: | Bosch PowerTUBE 750Wh horizontal |
|---|---|
| Battery capacity: | 700 Wh - 799 Wh |
| Battery position: | Intube battery / frame integrated |
| Brake: | Shimano Deore XT T8100 / M8120 4-piston |
| Carrier: | Racktime Alumee rails (platform option) |
| Cassette: | Shimano LG400-11 / 11-50 |
| Chain: | KMC e500 LG e-bike |
| Chainring: | Chainring FSA steel 36T with Chainguard |
| Charger: | Bosch STANDARD Charger 4A |
| Colour: | Machine Grey + White Matt (White + Black) |
| Crank: | KTM E-TEAM ISIS 170mm 016 |
| Damper: | FOX Float DPS Performance 230x57.5 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Front: Shimano MT800 CL 203 freeza | Rear: Shimano EM810 CL 180 magnet |
| Display: | Bosch KIOX 300 TFT display |
| Drive system: | Bosch drive |
| E-Bike Types: | E-Mountainbike (E-MTB), Fully E-MTB |
| Fork: | FOX 34 Float AWL 29" E 130mm 15x110 |
| Frame: | Macina Chacana 29" Alloy6061 125 UDH PT750 Bosch BDU37/M2286 |
| Front hub: | Shimano TC500B CL 32H 110-15TA |
| Front light: | Litemove AE-130 90-130Lux HighBeam |
| Front wheel: | Ambrosio E30 Trail 32H 622x30TC |
| Grips: | Ergon GA20 |
| Handlebar: | KTM COMP Trail35 rizer15 760mm |
| Headset: | Acros AICR internal 1.1/8"-1.5" angle lim |
| Item: | KTM Macina Chacana 791 LFC - 2026 |
| Manufacturer: | KTM |
| Model year: | 2026 |
| Motor: | Bosch PERFORMANCE CX BDU3740 |
| Mudguard: | Racktime aluminium 72mm B&M Xeltec |
| Pedal: | MTB pedal flat VPE-527 alloy |
| Permissible total weight: | 147 kg |
| Rear derailleur: | Shimano CUES Di2 U8050-11 SGS shadow |
| Rear hub: | Shimano TC500B CL 32H 148-12TA |
| Rear wheel: | Ambrosio E30 Trail 32H 622x30TC |
| Saddle: | Selle Royal Lookin Athletic 3D |
| Saddle clamp: | KTM Line JD-SC140A - 35.0mm |
| Seat post: | KTM COMP dropper internal 30.9 T:150 |
| Shift lever: | Shimano CUES Di2 EN605 Switch |
| Side stand: | KTM 28" adjustable |
| Spokes: | Front: DT Champion 2.0 black | Rear: DT Alpine II 2.34 black |
| Stem: | KTM TEAM Trail35 |
| Tyres: | Front: Schwalbe Johnny Watts Perf. DD RaceGuard 60-622 Reflex | Rear: Schwalbe Johnny Watts Perf. DD RaceGuard 60-622 Reflex |
