KTM Macina Chacana 891 - 2026

5,599.00€

Item number: 11494-001
Manufacturer Part Number: 1260032103

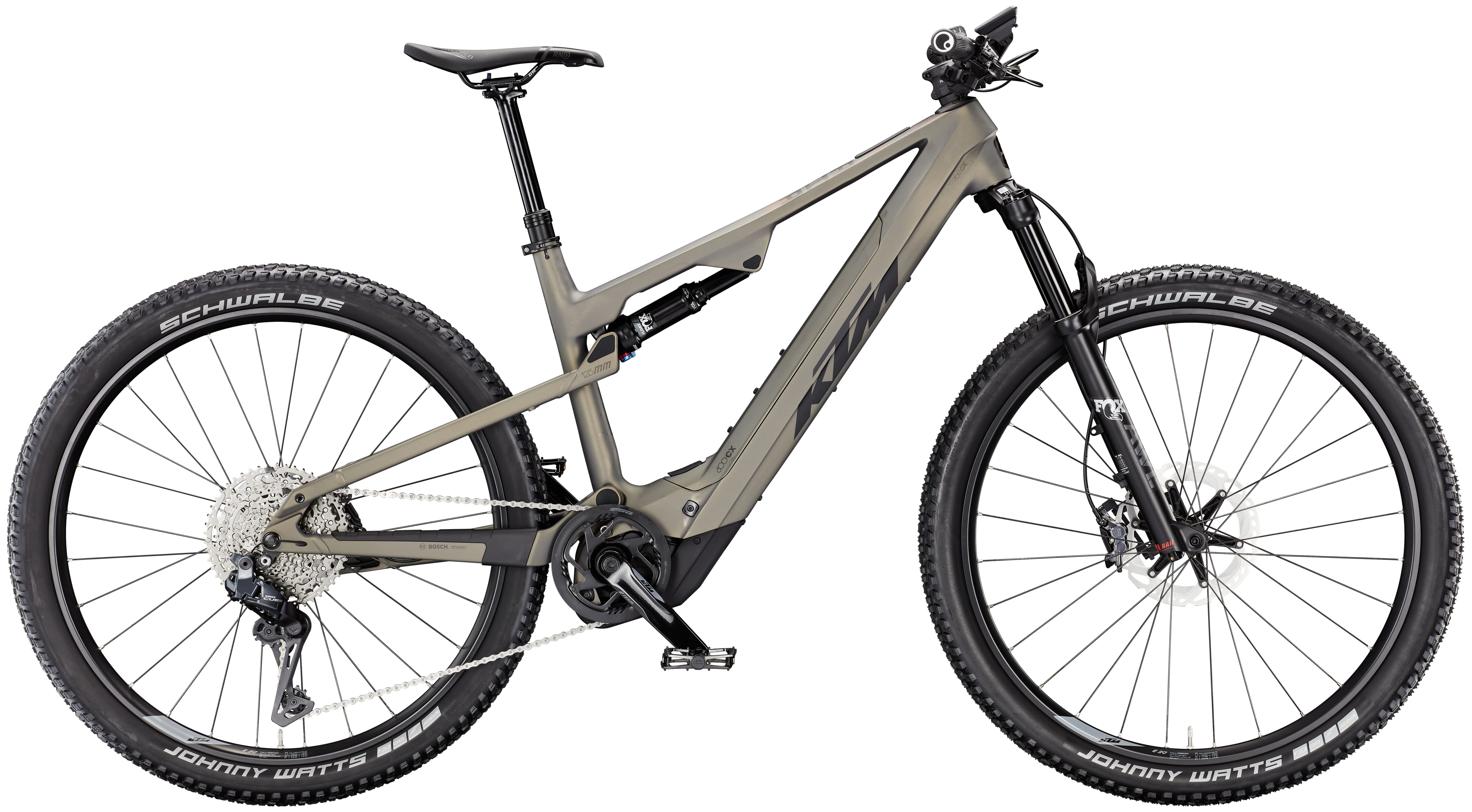

The KTM Macina Chacana 891 - 2026 is the perfect electric bike for anyone looking for a full-suspension e-MTB designed for touring, everyday use and light trails. Powerful support is provided by the latest Bosch Performance Line CX motor, powered by the fully integrated Bosch PowerTube 800 Wh battery. The system is managed via the Bosch Kiox 300 display, delivering precise data on performance, range and navigation at all times. Reliable Shimano Deore XT M8100 / M8120 four-piston brakes with large rotors ensure maximum control and safety, even on long descents.

Features of the KTM Macina Chacana 891 - 2026

KTM Macina Chacana 891 with aluminium frame
Bosch Performance Line CX motor with 100 Nm
Bosch PowerTube 800 Wh battery
Bosch Kiox 300 display
Shimano Deore XT M8100 / M8120 four-piston brakes
Shimano CUES Di2 U8050-11 derailleur

Shimano CUES Di2 U8050-11 derailleur

A key highlight of the KTM Macina Chacana 891 - 2026 is the Shimano CUES Di2 U8050-11 derailleur, which impresses with electronic shifting precision and Linkglide technology. This ensures exceptionally smooth, quiet and low-wear shifting, even under heavy load. In combination with the Shimano LG400-11 cassette and the EN605 shift lever, you benefit from perfectly matched gearing for steep climbs as well as fast descents.

eBike24 recommends: The KTM Macina Chacana 891 is the ideal choice for riders looking for a powerful and versatile full-suspension e-MTB - perfect for demanding day trips, extended multi-day tours or spontaneous off-road adventures.

E-Bike Types:	E-Mountainbike (E-MTB), Fully E-MTB
Model year:	2026
Battery capacity:	800 Wh - 899 Wh
Drive system:	Bosch drive
Manufacturer:	KTM
Derailleur/drive type:	Derailleur - chain drive
Battery position:	Intube battery / frame integrated
Bosch System:	Bosch Performance Line CX from 2025 Smart System
Frame:	Macina Chacana AI6061 125 UDH PT800 Bosch BDU38/M5290
Fork:	FOX 34 Float AWL 29" E 130mm 15x110
Battery:	Bosch PowerTUBE 800Wh horizontal
Tyres:	Front: Schwalbe Johnny Watts Perf. DD RaceGuard Folding 65-622 \| Rear: Schwalbe Johnny Watts Perf. DD RaceGuard Folding 65-622
Saddle:	Selle San Marco RND Manganes Rails
Seat post:	KTM COMP II dropper internal 34.9 T:150
Item:	KTM Macina Chacana 891 - 2026
Colour:	Olive Pearl Matt (Black + Orange)
Stem:	KTM TEAM Trail35
Display:	Bosch KIOX 300 TFT display
Damper:	FOX Float DPS Performance 230x57.5
Chainring:	FSA steel 36T Direct Mount
Saddle clamp:	KTM TEAM Light CL-FJ21 - 39.0mm x 12
Grips:	Ergon GA20
Motor:	Bosch PERFORMANCE CX BDU3840
Headset:	Acros AICR internal 1.1/8"-1.5" angle lim
Pedal:	MTB pedal flat VPE-527 alloy
Front hub:	DT Swiss 370 CL 28H 110/15TA
Rear hub:	DT Swiss 370 CL 28H 148/12 TA
Handlebar:	KTM COMP Trail35 rizer15 760mm
Permissible total weight:	127 kg
Crank:	KTM E-TEAM ISIS 170mm 016
Cassette:	Shimano LG400-11 / 11-50
Rear derailleur:	Shimano CUES Di2 U8050-11 SGS shadow
Chain:	KMC e500 LG e-bike
Shift lever:	Shimano CUES Di2 EN605 Switch
Charger:	Bosch STANDARD Charger 4A
Spokes:	Front: DT Champion 2.0 black \| Rear: DT Champion 2.0 black
Front wheel:	Ambrosio E30 Trail 28H 622x30TC
Rear wheel:	Ambrosio E30 Trail 28H 622x30TC
Disc brakes:	Front: Shimano RT64 CL 203 \| Rear: Shimano EM600 CL 180 magnet
Brake:	Shimano Deore XT M8100 / M8120 4-piston
