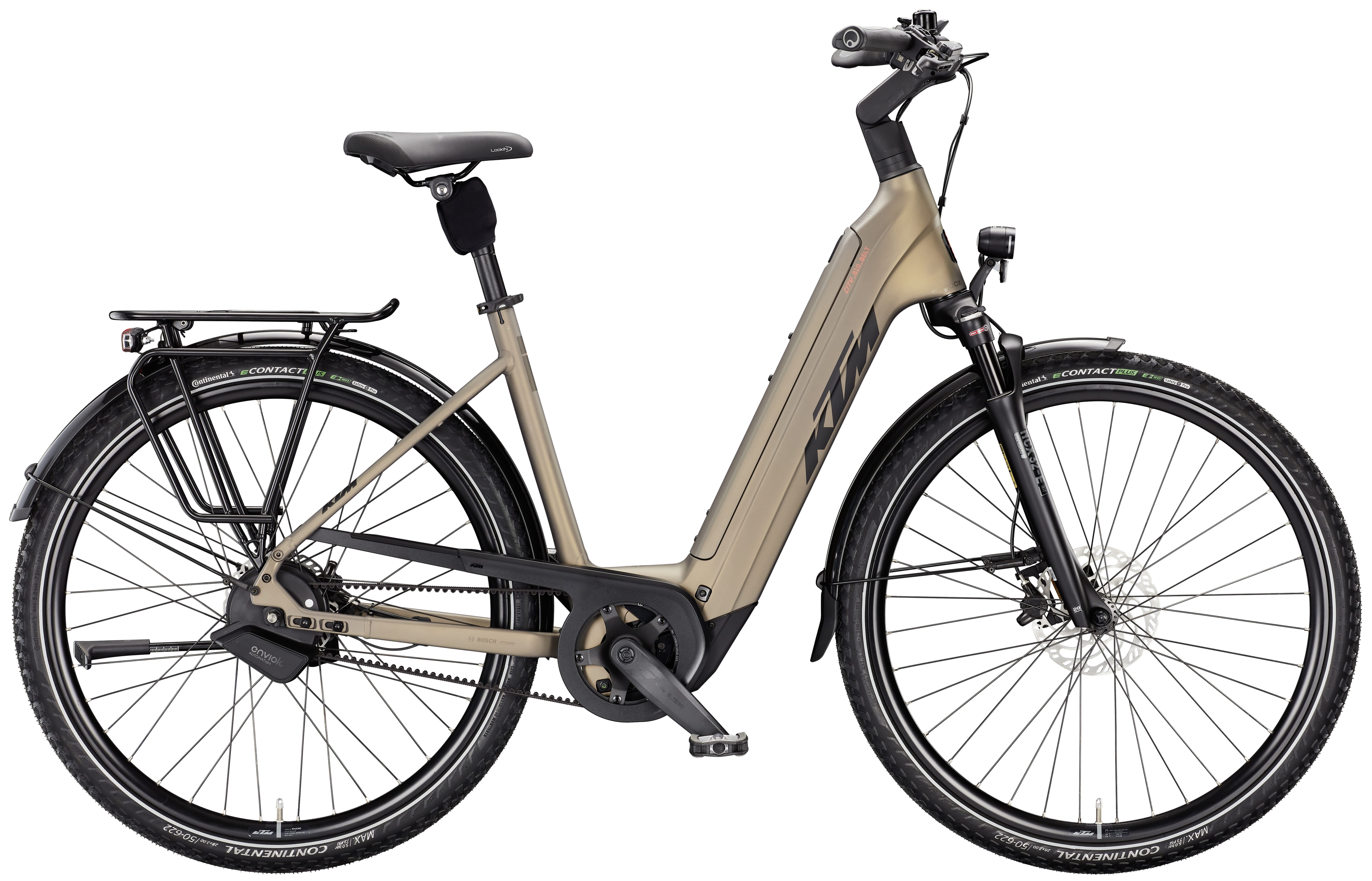

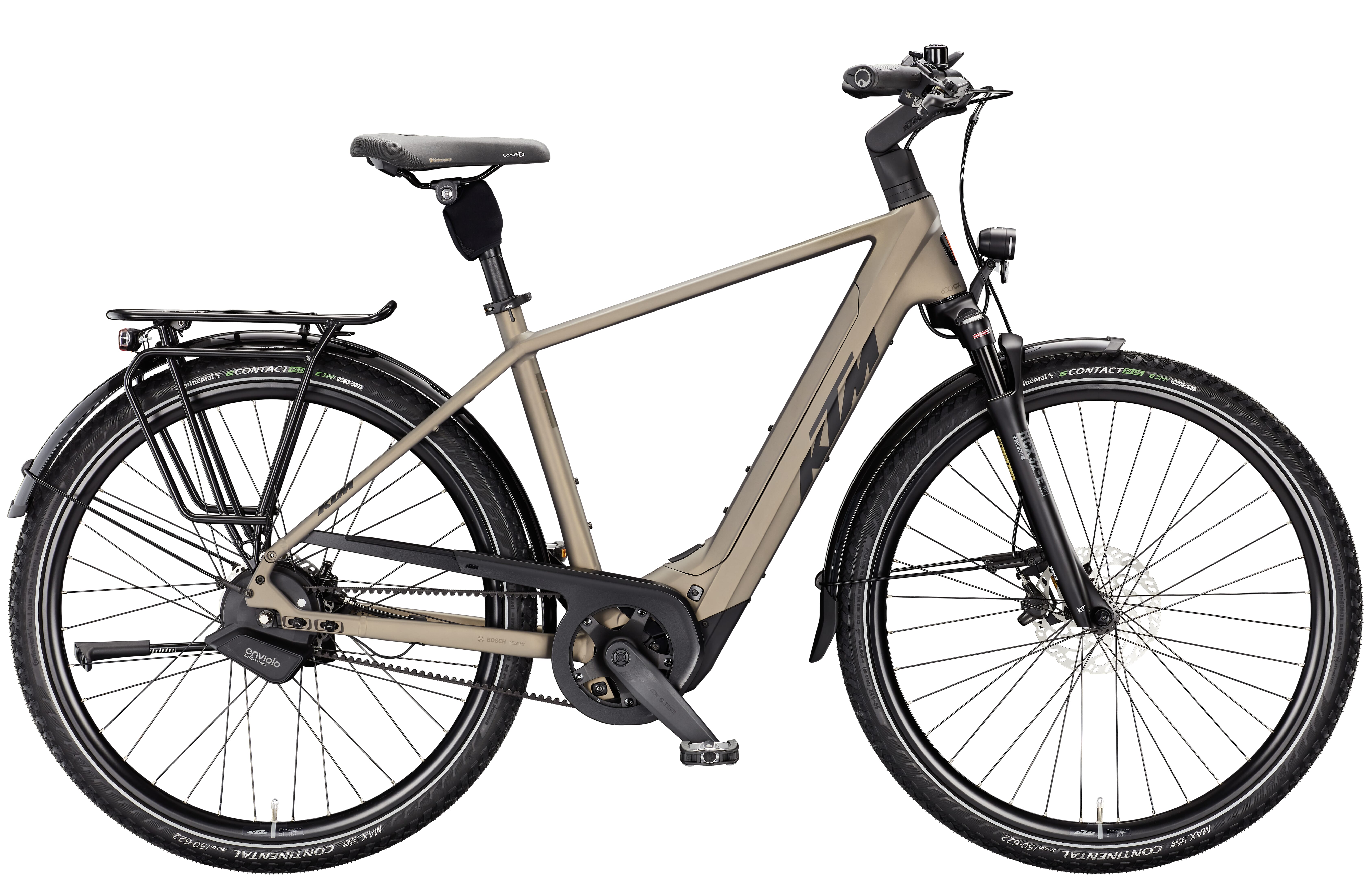

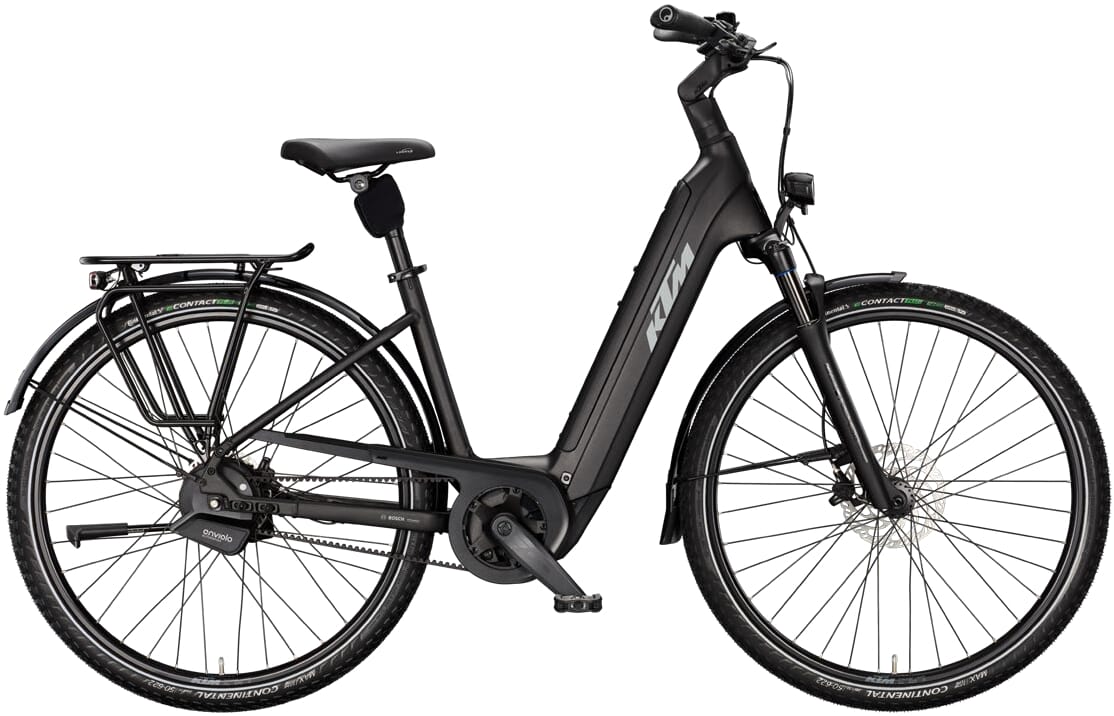

KTM Macina City 810 Belt - 2026

5,599.00€

Item number: 11542-001
Manufacturer Part Number: 1260180106

The KTM Macina City 810 Belt - 2026 combines modern technology, maximum comfort and low-maintenance components to create a city e-bike in a class of its own - ideal for daily city commuting and longer tours with maximum efficiency. The high-quality Macina City Alloy 6061 frame was specially designed for use with a belt drive and the powerful Bosch Perfomance CX motor. The integrated Bosch PowerTube 800Wh battery ensures impressive ranges, while the Suntour NCX32-E Air suspension fork with 63 mm travel absorbs bumps with ease. The Bosch Kiox 500 display gives you a clear and colourful overview of all riding data. It enables intuitive operation, navigation and training analyses - for maximum control on every ride. The city bike also sets standards in terms of lighting: the B&M IQ-XS front light with up to 150 lux and HighBeam function lights up the road as bright as day, even at night. The B&M Dart brex rear light ensures good visibility to the rear - discreet but effective.

Features of the KTM Macina City 810 Belt - 2026

High-quality city e-bike
Bosch Perfomance CX motor with 90 Nm
Bosch PowerTube 800Wh battery
Bosch Kiox 500 display
Bosch ConnectModule
Suntour NCX32-E Air suspension fork
B&M IQ-XS front light

eBike24 recommends: The KTM Macina City 810 Belt is the ideal solution for anyone who prioritises quality, comfort and a silent riding experience in everyday urban life.

E-Bike Types:	Urban & City E-Bike
Model year:	2026
Battery capacity:	800 Wh - 899 Wh
Drive system:	Bosch drive
Manufacturer:	KTM
Derailleur/drive type:	Hub gear - chain drive
Battery position:	Intube battery / frame integrated
Bosch System:	Bosch Performance Line CX from 2025 Smart System
Frame:	Macina City Alloy 6061 Belt PT800 Bosch BDU38/T5970
Fork:	Suntour NCX32-E Air LO 63mm Al 1 1/8
Battery:	Bosch PowerTUBE 800Wh horizontal
Tyres:	Front: Continental E-Contact Plus 50-622 \| Rear: Continental E-Contact Plus 50-622
Saddle:	Selle Royal Lookin
Seat post:	Suntour SP25-NCX suspension 30.9/350
Carrier:	KTM tour snap-it 2.0/monkeyload childseat + rack clip
Item:	KTM Macina City 810 Belt - 2026
Colour:	Olive Pearl Matt (Black + Orange)
Stem:	KTM Line adjust. 0-60° ICR
Display:	Bosch KIOX 500 TFT display
Side stand:	KTM 28" adjustable MY2025
Mudguard:	SKS B55 CAB City 28" rear
Chainring:	Gates CDX 46T
Saddle clamp:	KTM Line JD-SC99 - 34.9mm
Grips:	GRIP ERGON GP10
Motor:	Bosch PERFORMANCE CX BDU3840
Headset:	Acros AICR internal 1.5"-1.5"
Rear light:	B&M Dart brex
Front light:	B&M IQ-XS 100-150Lux HighBeam
Pedal:	Trekking pedal VP-616 anti-slip
Front hub:	Shimano Deore M5100 CL 36H 100-5QR
Rear hub:	Enviolo TR-380% 36H
Handlebar:	Ergotec Lady Town 31.8 690mm
Permissible total weight:	147 kg
Crank:	KTM E-TEAM2 ISIS 170mm 08
Cassette:	Gates Carbon-Drive CDX 22T Enviolo
Rear derailleur:	Enviolo automatig cliq pro control
Chain:	Gates carbon drive belt 122T CDX
Chainguard:	KTM type 10 (BELT) for Bosch BDU38
Charger:	Bosch STANDARD Charger 4A
Spokes:	Front: DT Champion 2.0 black \| Rear: DT Alpine II 2.34 black
