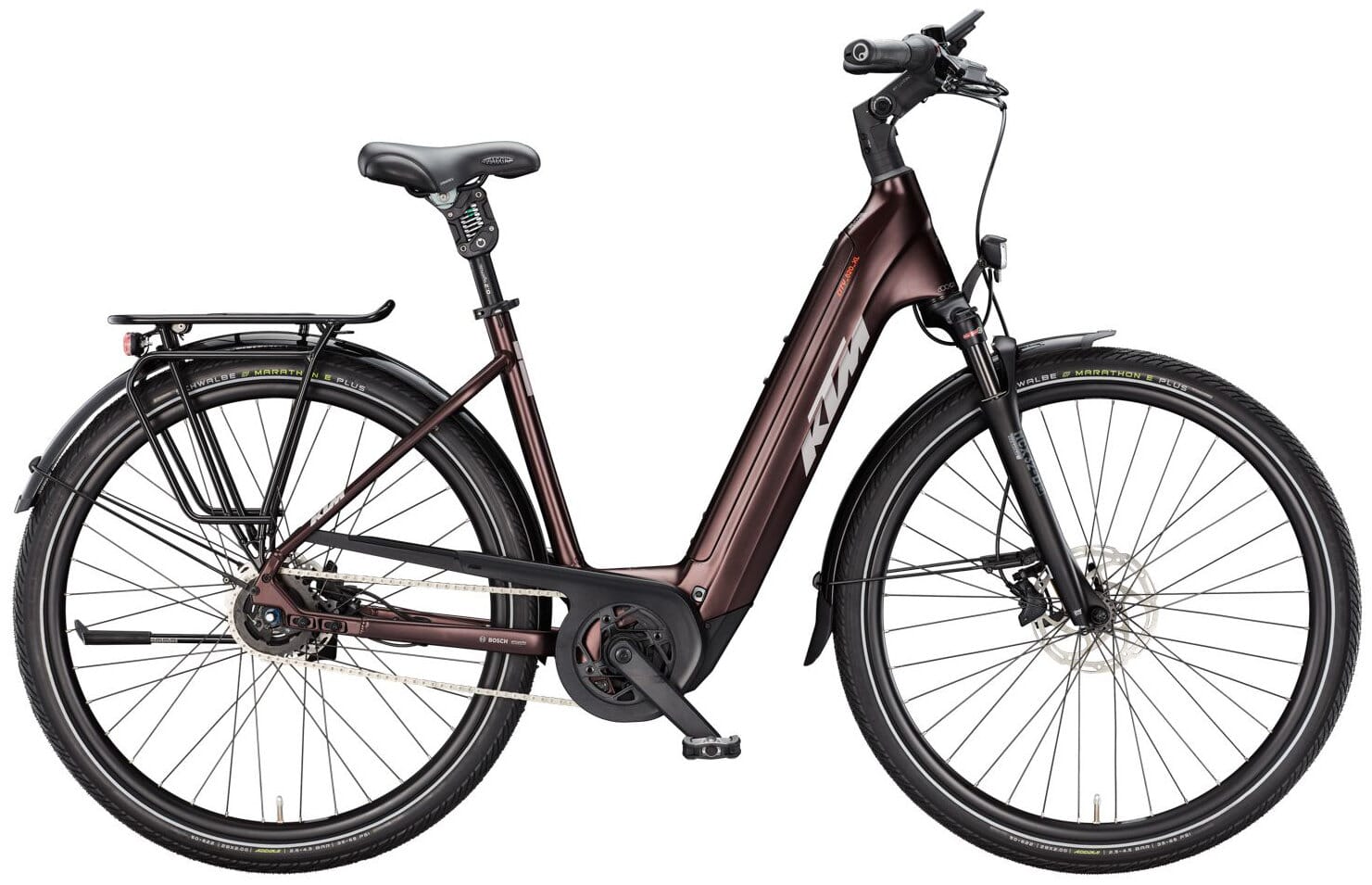

KTM Macina City 820 XL - 2025 | it fits people up to 138 kg

4,399.00€

Item number: 10393-001
Manufacturer Part Number: 1250182503
EAN: 9008594495562

The KTM Macina City 820 XL is a city eBike with a comfortable Low entry that has been specially developed for heavier adventurers. It has a maximum payload of 167 kg (max. person travelling 137.3 kg + eBike 29.7 kg) and is therefore ideal for heavy luggage or riders who are a little overweight. With the powerful Bosch CX motor and an 800 Wh battery, the City 820 XL offers pleasant support on all routes. It also has German Road Traffic Licensing Regulations-compliant road equipment, with Busch and Müller lights, SKS mudguards and a heavy-duty KTM Tour luggage rack, which round off the all-round carefree package.

Features of the KTM Macina City 820 XL - 2025:

27.5" aluminium step-through frame (max. rider weight 137 kg)
Bosch Performance CX motor (BDU3840) - 85 Nm
Bosch Powertube 800 Wh battery
Bosch LED Remote + Kiox 500 display
Shimano Nexus 5-speed gears
KTM Tour (snap-it 2.0 + monkeyload) luggage rack

eBike24 recommends: The KTM Macina City 820 XL is the perfect companion for daily city commuting thanks to its robust construction and city features optimised for urban use.

E-Bike Types:	Urban & City e-Bikes
Model year:	2025
Battery capacity:	800 Wh - 899 Wh
Drive system:	Bosch drive
Manufacturer:	KTM
Frame type:	Low-entry / Wave
Derailleur/drive type:	Hub gear - chain drive
e-bike load capacity:	more than 150 kg
Battery position:	Intube battery / frame integrated
Bosch System:	Bosch Performance Line CX from 2025 Smart System
Frame:	Macina City Alloy 6061
Fork:	Suntour NCX32-D coil LO 63mm
Battery:	Bosch PowerTUBE 800Wh horizontal
Tyres:	Schwalbe Marathon E-Plus Perf. DualGuard 50-622 Reflex
Saddle:	Selle Royal Viaggio URC
Seat post:	bySchulz G.2 ST suspension 30.9/350
Carrier:	KTM Tour (Snap-it 2.0 + Monkeyload)
Weight:	29.7 kg
Item:	KTM Macina City 820 XL - 2025
Colour:	BLACK LAVA MATT
Stem:	Ergotec Sepia 50 XL 90mm
Display:	Bosch INTUVIA LCD Display
Side stand:	KTM 28" bike stand MY2025, adjustable
Wheels:	KTM Line - Shimano Deore M5100 \| KTM Line - Shimano Nexus 5 Disc
Spring travel:	Front: 63mm
Grips:	Ergon GP1 short
Motor:	Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Rear light:	B&M Toplight 2C
Front light:	B&M Briq-S 60Lux
Pedal:	Trekking pedal VP-616 anti-slip
Wheel size:	28"
Handlebar:	Ergotec Lady Town 630mm
Crank:	KTM E-Comp2 ISIS 170mm Q8
Cassette:	Esjot 30T
Chain:	KMC Z1eHX
Shift lever:	Shimano Nexus 5 Revoshifter
Charger:	Bosch Standard Charger 4A
Disc brakes:	Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 160
Control unit:	Bosch LED Remote
Brake:	Tektro HD-T390 / E390 2-piston
