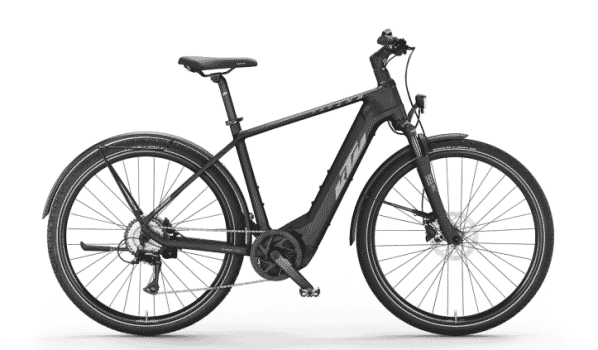

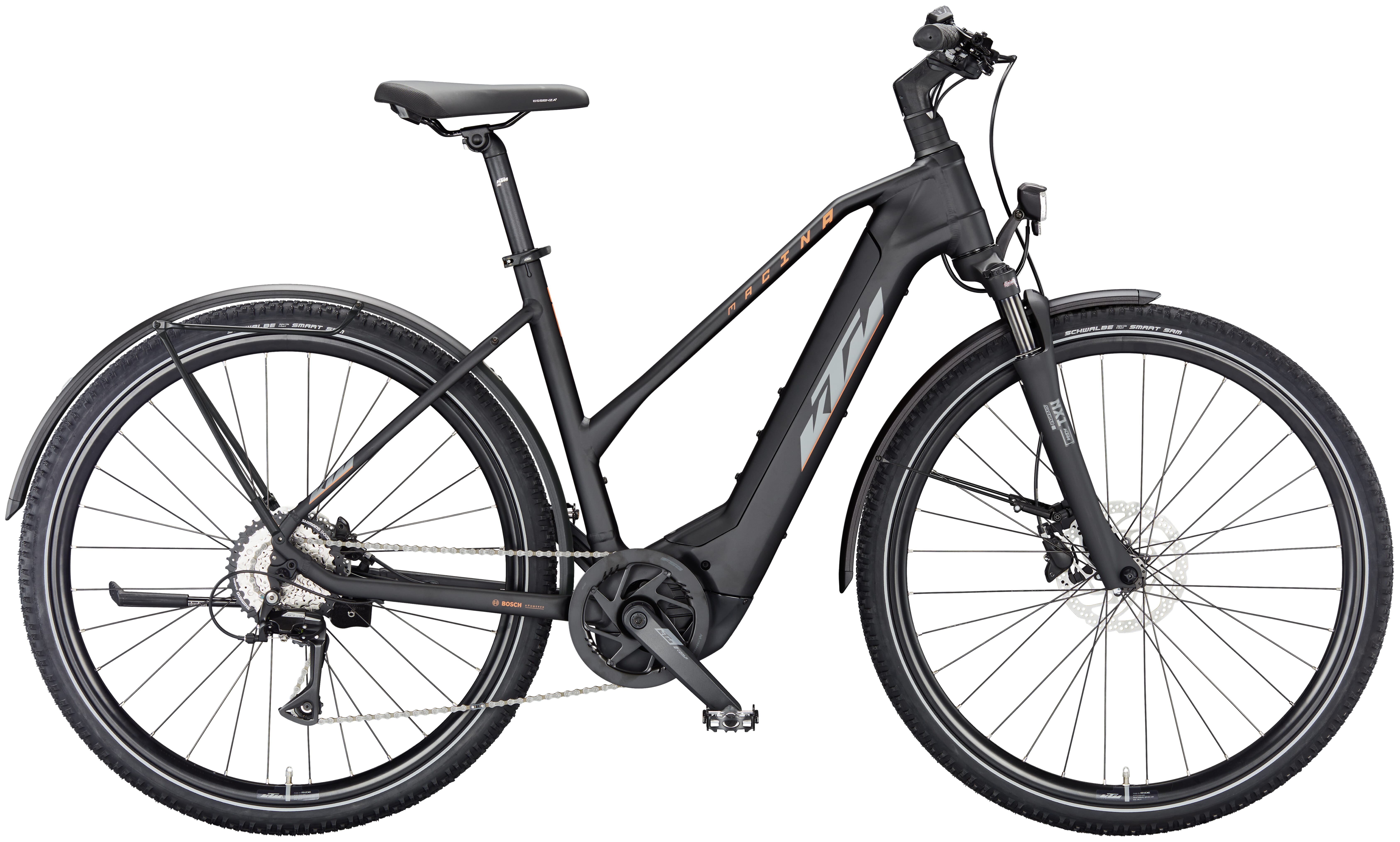

KTM Macina Cross CX 510 LFC - 2026

2,999.00€

Item number: 11510-001
Manufacturer Part Number: 1260107106

The KTM Macina Cross CX 510 LFC - 2026 is a versatile trekking electric bike that has been specially developed for everyday use and leisure. With the robust Macina Trekking Onroad Alloy 6061 frame, the integrated Bosch PowerTube 500 Wh battery and the powerful Bosch Performance Line CX motor, this model offers reliable support on any terrain - whether in the city, in the countryside or on longer tours.The Suntour NX1 suspension fork with 63 mm travel ensures a comfortable ride and effortlessly compensates for minor bumps.

Features of the KTM Macina Cross CX 510 LFC - 2026

Trekking e-bike with Bosch Smart System
Bosch Performance Line CX motor with 85 Nm
Bosch PowerTube 500 Wh battery
Suntour NX1 suspension fork
Shimano MT200 / MT200 2-piston brake

eBike24 recommends: The KTM Macina Cross CX 510 LFC - an all-round reliable trekking e-bike with sensible equipment and powerful Bosch technology - ideal for everyday use, commuting and touring.

E-Bike Types:	Cross E-Bike, Trekking E-Bike
Model year:	2026
Battery capacity:	500 Wh or more
Drive system:	Bosch drive
Manufacturer:	KTM
Derailleur/drive type:	Derailleur - chain drive
Battery position:	Intube battery / frame integrated
Bosch System:	Bosch Performance Line CX from 2025 Smart System
Frame:	Macina Trekking Onroad Alloy6061 PT750Wh Bosch BDU37/T2930
Fork:	Suntour NX1 coil LO 63mm
Battery:	Bosch PowerTUBE 500Wh horizontal
Tyres:	Front: Schwalbe Smart Sam SBC K-Guard 47-622 Reflex \| Rear: Schwalbe Smart Sam SBC K-Guard 47-622 Reflex
Saddle:	Selle Royal Essenza Athletic
Seat post:	KTM Line 30.9/350
Carrier:	Racktime Alumee rails (platform option)
Item:	KTM Macina Cross CX 510 LFC - 2026
Colour:	Black Matt (Grey + Orange), Black Matt (Grey + Orange)
Stem:	KTM Line +20° ICR
Side stand:	KTM 28" adjustable
Mudguard:	Racktime aluminium 52mm B&M Xeltec
Chainring:	FSA steel 42T with chainguard w/o Megatooth
Saddle clamp:	KTM Line JD-SC99 - 34.9mm
Grips:	KTM COMP Ergo Lock
Motor:	Bosch PERFORMANCE CX BDU3740
Headset:	Acros AICR internal 1.1/8"-1.5" angle lim
Front light:	B&M Briq-S 60Lux
Pedal:	MTB pedal VP-195E alloy
Front hub:	Shimano Deore M6000 CL 32H 100-5QR
Rear hub:	Shimano Deore M6000 CL 32H 135-5QR
Handlebar:	KTM COMP low rizer 640mm
Permissible total weight:	145 kg
Crank:	KTM E-COMP ISIS 170mm 016
Cassette:	Shimano HG400-8 / 11-40
Rear derailleur:	Shimano Acera M3020-8 SGS
Chain:	Shimano HG40-8
Shift lever:	Shimano Altus M315-8 display
Charger:	Bosch STANDARD Charger 4A
Spokes:	Front: DT Champion 2.0 black \| Rear: DT Alpine II 2.34 black
Front wheel:	Ryde Rival Sport 32H 622x25C
Rear wheel:	Ryde Rival Sport 32H 622x25C
