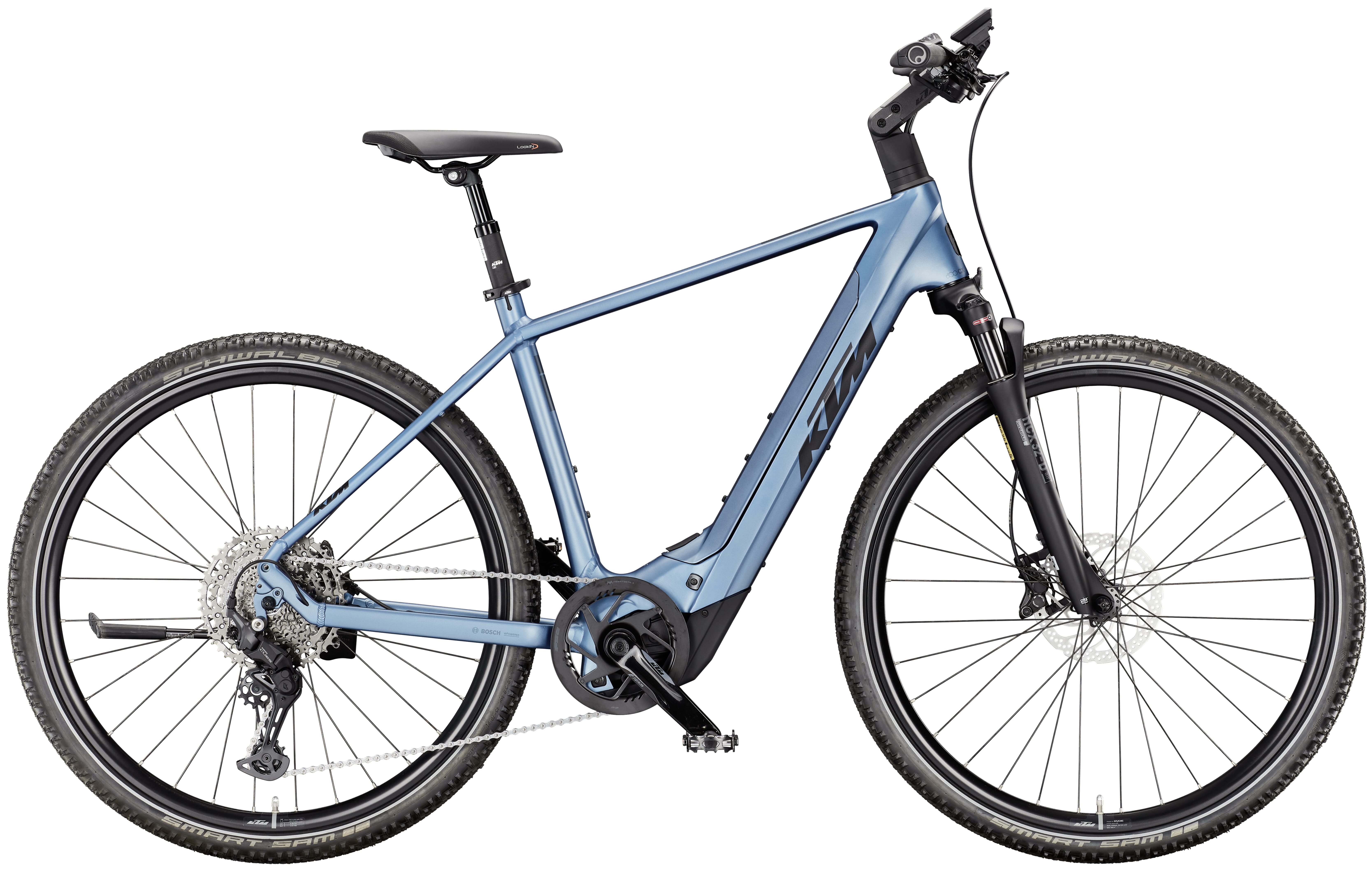

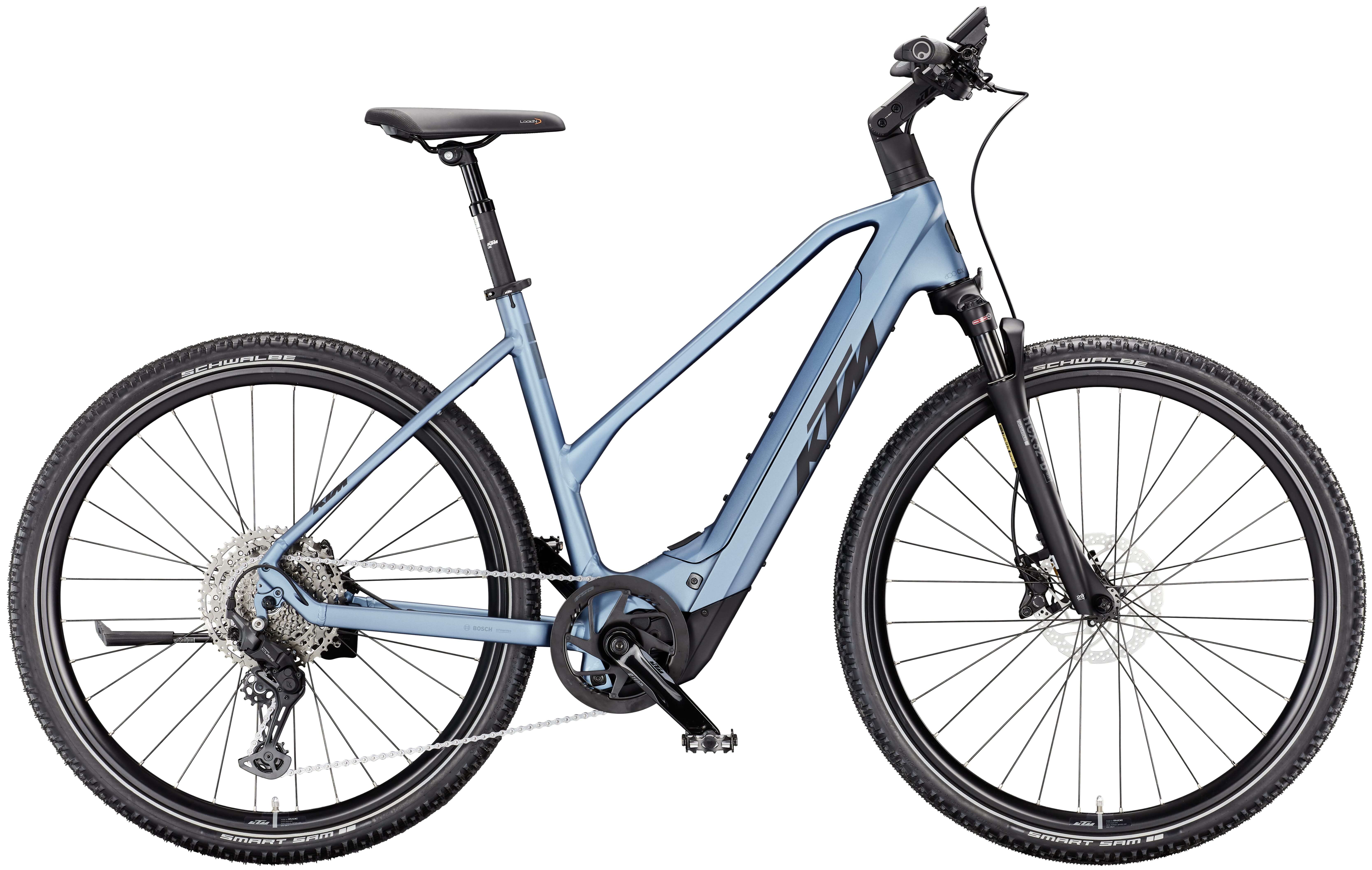

KTM Macina Cross CX 810 - 2026

3,999.00€

Item number: 11507-001
Manufacturer Part Number: 1260101106

The KTM Macina Cross CX 810 - 2026 is your high-performance e-trekking bike for ambitious touring riders and demanding everyday mobility. The high-quality trekking onroad frame is matched to the latest Bosch Performance Line CX drive unit and, in conjunction with the powerful Bosch PowerTube 800 Wh battery, offers a long range and reliable support - even on long or demanding tours. With the modern Bosch Kiox 300 display, you always have an overview of your riding data and system information thanks to the clear menu navigation and colour display. The Suntour NCX32-D Air suspension fork with 63 mm travel ensures comfortable handling and effectively dampens bumps.

Features of the KTM Macina Cross CX 810 - 2026

Sporty trekking electric bike
Bosch Performance Line CX with 100 Nm
Bosch PowerTube 800 Wh battery
Bosch Kiox 300 display
Suntour NCX32-D Air suspension fork
Shimano MT402 (3-F) / MT420 4-piston brakes

eBike24 recommends: The KTM Macina Cross CX 810 is the ideal choice for anyone looking for a sporty and comfortable trekking e-bike with a long range, sophisticated technology and well thought-out features. Whether it's a daily commute to work, a weekend trip or a cycle tour - this e-bike will reliably get you to your destination.

E-Bike Types:	Cross E-Bike, Trekking E-Bike
Model year:	2026
Battery capacity:	800 Wh - 899 Wh
Drive system:	Bosch drive
Manufacturer:	KTM
Derailleur/drive type:	Derailleur - chain drive
Battery position:	Intube battery / frame integrated
Bosch System:	Bosch Performance Line CX from 2025 Smart System
Frame:	Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38/T5940
Fork:	Suntour NCX32-D Air LO 63mm 1 1/8
Battery:	Bosch PowerTUBE 800Wh horizontal
Tyres:	Front: Schwalbe Smart Sam Perf. 47-622 Reflex \| Rear: Schwalbe Smart Sam Perf. 47-622 Reflex
Saddle:	Selle Royal Lookin Athletic 3D
Seat post:	KTM Line Elegance suspension 30.9/300
Item:	KTM Macina Cross CX 810 - 2026
Colour:	Steel Blue Matt (Black + Silver), Steel Blue Matt (Black + Silver)
Stem:	KTM Line adjust. 0-60° ICR
Display:	Bosch KIOX 300 TFT display
Side stand:	KTM 28" adjustable
Chainring:	FSA steel 42T with chainguard Direct Mount
Saddle clamp:	KTM Line JD-SC99 - 34.9mm
Grips:	GRIP ERGON GP10
Motor:	Bosch PERFORMANCE CX BDU3840
Headset:	Acros AICR internal 1.5"-1.5"
Pedal:	MTB pedal VP-195E alloy
Front hub:	Shimano Deore M5100 CL 32H 100-5QR
Rear hub:	Shimano Deore M5100 CL 32H 135-5QR
Handlebar:	KTM COMP low rizer 640mm
Permissible total weight:	143 kg
Crank:	KTM E-TEAM ISIS 170mm 016
Cassette:	Shimano LG400-11 / 11-50
Rear derailleur:	Shimano CUES U6000-11/10 LG shadow+
Chain:	KMC e11 Sport EPT eBike
Shift lever:	Shimano CUES U6000-11 display
Charger:	Bosch STANDARD Charger 4A
Spokes:	Front: DT Champion 2.0 black \| Rear: DT Alpine II 2.34 black
Front wheel:	Ryde Rival Sport 32H 622x25C
Rear wheel:	Ryde Rival Sport 32H 622x25C
Disc brakes:	Front: Shimano RT64 CL 180 \| Rear: Shimano EM600 CL 160 magnet
Brake:	Shimano MT402 (3-F) / MT420 4-Piston
