Description
With the KTM Macina Cross CX 820 2025, you get a practical all-rounder eBike that is suitable for everyday use as well as for tours on uneven terrain. The built-in Bosch Performance CX motor provides powerful support so that even demanding climbs can be mastered effortlessly. In addition, the Bosch PowerTube 800Wh battery integrated in the down tube provides you with sufficient power for extended tours. While riding, the Bosch Intuvia 100 display shows you all the important data such as speed and kilometres travelled. The display is operated via the Bosch LED remote, which is located on the left-hand side of the KTM Comp Low Rizer handlebar. The built-in fork and brakes ensure comfort and safety. If you are riding the KTM Macina Cross CX 820 on uneven terrain, the Suntour NX1 fork reliably absorbs shocks. Furthermore, the Shimano MT200 brakes allow you to stop quickly and safely in any situation.
eBike24 recommends: The Macina Cross CX 820 is made for both roads and bumpy forest tracks. Whether it's a commute to work or an eBike tour on holiday - the trekking eBike is your faithful companion.
Features of the KTM Macina Cross CX 820 - 2025
- Bosch Performance CX motor
- Bosch PowerTube 800Wh
- Bosch Intuvia 100
- Bosch LED Remote
- Shimano MT200 2-piston brake
- Suntour NX1 fork
- KTM Comp Low Rizer handlebars
Properties
| Battery: | Bosch PowerTUBE 800Wh horizontal |
|---|---|
| Battery capacity: | 800 Wh - 899 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Shimano MT200 / MT200 2-piston |
| Cassette: | Shimano LG400-10 / 11-48 |
| Chain: | Shimano LG500 |
| Charger: | Bosch Standard Charger 4A |
| Colour: | OLIVE PEARL |
| Control unit: | Bosch LED Remote |
| Crank: | KTM E-Race ISIS 170mm Q2 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Shimano RT30 CL 180 / EM300 CL 160 magnet |
| Display: | Bosch INTUVIA LCD Display |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Fork: | Suntour NX1 coil LO 63mm |
| Frame: | Macina Trekking Onroad Alloy 6061 |
| Frame type: | Ladies / Trapeze, Mens |
| Grips: | KTM Comp Ergo Lock |
| Handlebar: | KTM Comp low rizer 640mm |

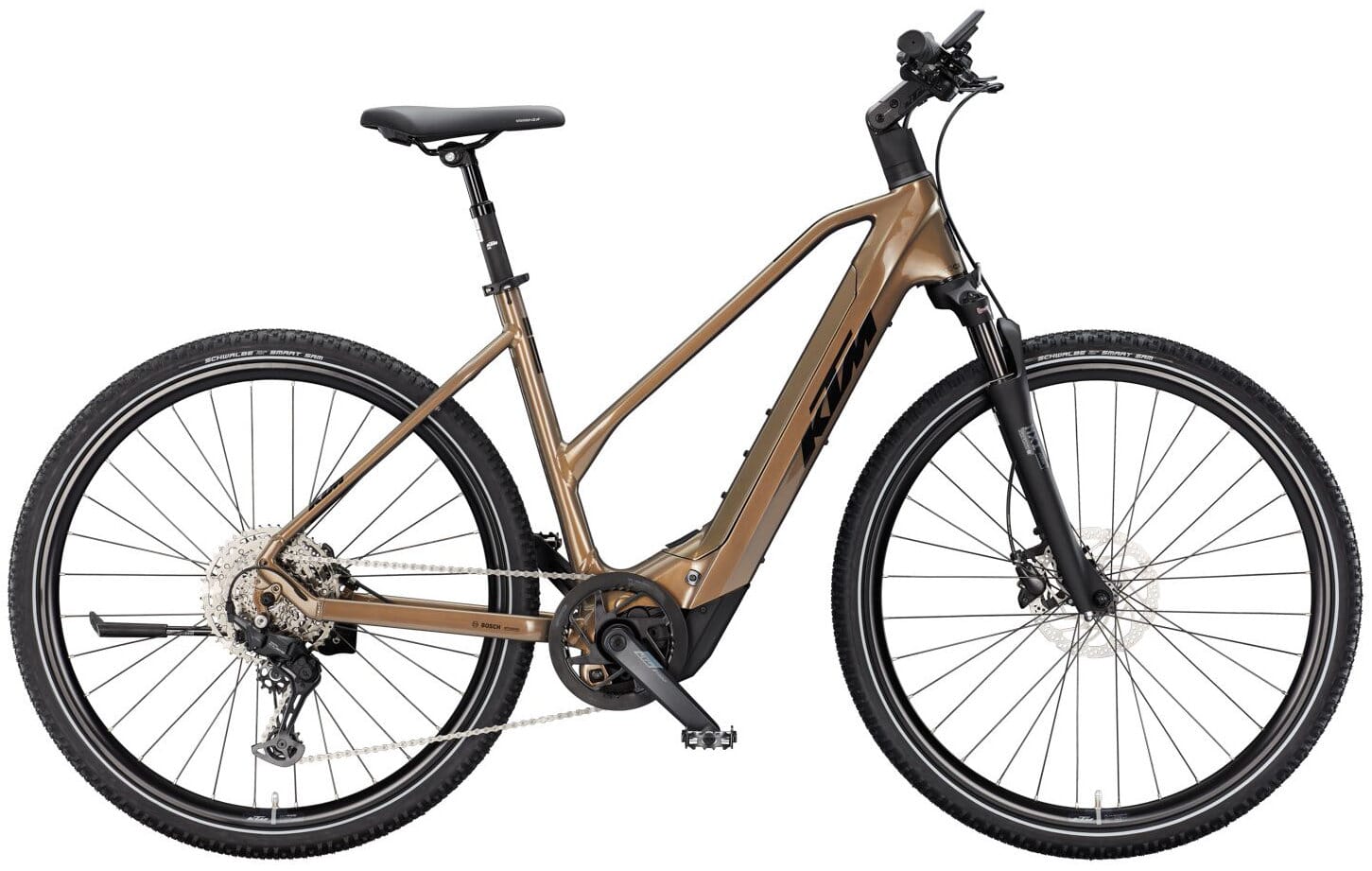

| Item: | KTM Macina Cross CX 820 - 2025 |
| Manufacturer: | KTM |
| Model year: | 2025 |
| Motor: | Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm |
| Pedal: | MTB pedal VP-195E alloy |
| Rear derailleur: | Shimano CUES U6000-11/10 LG shadow+ |
| Saddle: | Selle Royal Essenza Athletic |
| Seat post: | KTM Line Elegance Suspension 30.9/300 |
| Shift lever: | Shimano CUES U6000-10 display |
| Side stand: | KTM 28" bike stand, adjustable |
| Spring travel: | Front: 63mm |
| Stem: | KTM Line adjust. 0-60° ICR |
| Tyres: | Schwalbe Smart Sam SBC K-Guard 47-622 Reflex |
| Weight: | 24.7 kg |
| Wheel size: | 28" |
| Wheels: | KTM Line - Shimano Deore M6000 |
