KTM Macina Cross SX 20 2025 | sporty trekking e-bike

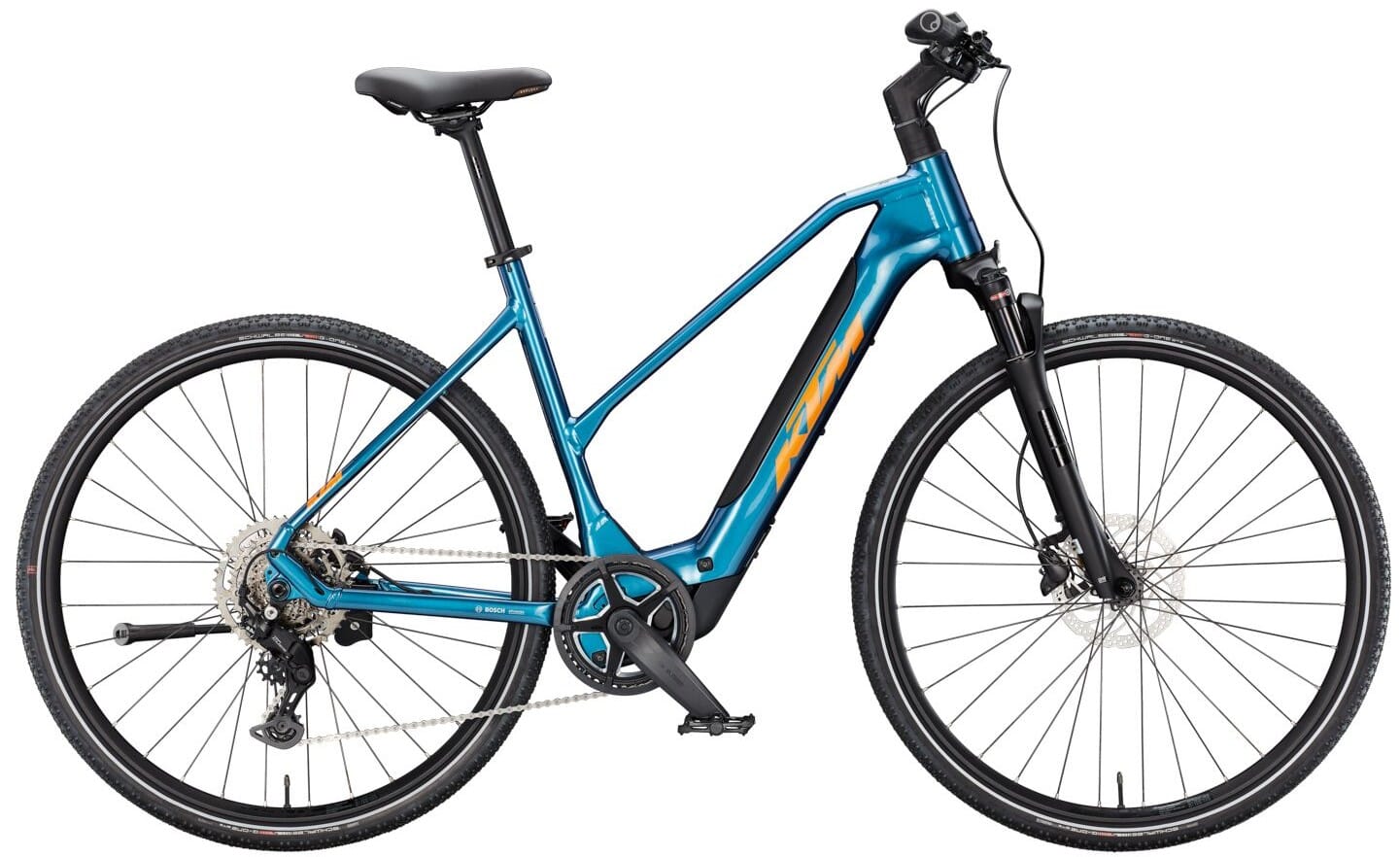

Preview: KTM Macina Cross SX 20 2025 Ladies

3,299.00€

Item number: 9311-001
Manufacturer Part Number: 1250111106
EAN: 9008594492233

The KTM Macina Cross SX 20 stands for uncompromising riding fun. Without much fuss, the sporty trekking bike impresses with its low weight, lively drive and reliable equipment. The compact Bosch Performance SX motor with 55 Nm and a 400 Wh battery provide enough power for exciting e-bike tours. You can also take a shortcut along field and forest paths with the Macina Cross SX 20, because this electric bike is just fun to ride. Brakes and gears are made by Shimano and perform reliably.

Features of the KTM Macina Cross SX 20 2025

Sporty trekking e-bike
Bosch Performance Line SX drive - 55 Nm
fully integrated 400 Wh CompactTube battery
Bosch Purion 200 display
Shimano CUSE 9-speed gears
2-piston Shimano disc brakes

eBike24 recommends: The KTM Macina Cross SX 20 is the right choice for those who like it easy - get on, ride and have fun. You will definitely enjoy the solid technology and the up-to-date e-bike system for a long time.

E-Bike Types:	Cross e-Bikes, Trekking e-Bikes
Model year:	2025
Battery capacity:	400 Wh - 499 Wh, Dual Battery compatible
Drive system:	Bosch drive
Manufacturer:	KTM
Frame type:	Ladies / Trapeze, Mens
Derailleur/drive type:	Derailleur - chain drive
Battery option:	Dual Battery compatible
Bosch System:	Bosch Performance Line SX from 2024 Smart System
Battery position:	Intube battery / frame integrated
Frame:	Macina Trekking Offroad Alloy 6061 CPT400Wh Bosch BDU31 / T-4110
Battery:	Bosch CompactTube 400Wh SMART SYSTEM
Tyres:	Schwalbe G-One Bite Evo TLE 45-622
Saddle:	Selle Royal Explora Gel
Seat post:	KTM Line 27.2/350
Weight:	19.1 kg
Suspension fork:	Suntour NCX32-D Air LO 63mm
Display:	Bosch PURION 200 Display & Remote SMART SYSTEM
Chainring:	KTM aluminium 42T Direct Mount
Grips:	Ergon GP1 SD
Motor:	Bosch PERFORMANCE SX SMART SYSTEM - 25km/h / 55Nm
Pedal:	Trekking pedal VP-616 anti-slip
Handlebar:	KTM Comp II low rizer 640mm
Permissible total weight:	130 kg
Crank:	KTM E-TEAM2 ISIS 170mm Q8
Cassette:	Shimano LG400-9 / 11-46T
Rear derailleur:	Shimano CUES U4000-9 shadow
Chain:	KMC e500 LG e-bike
Shift lever:	Shimano CUES U4000-9 display
Charger:	Bosch Compact Charger 2A SMART SYSTEM
Stand:	Hebie 28" adjustable
Front wheel:	KTM Line - Shimano Deore M6000 CL 32H 100-5QR Black Jack Ready25 32H 622x25TC DT Champion 2.0 black
Rear wheel:	KTM Line - Shimano CUES TC500 CL 32H 142-12TA Black Jack Ready25 32H 622x25TC DT Alpine II 2.34 black
Disc brakes:	Shimano RT30 CL 180 / 160
Brake:	Shimano MT201 / MT200 2-Piston
