€3,299.00
On order, delivery date unknown
Description

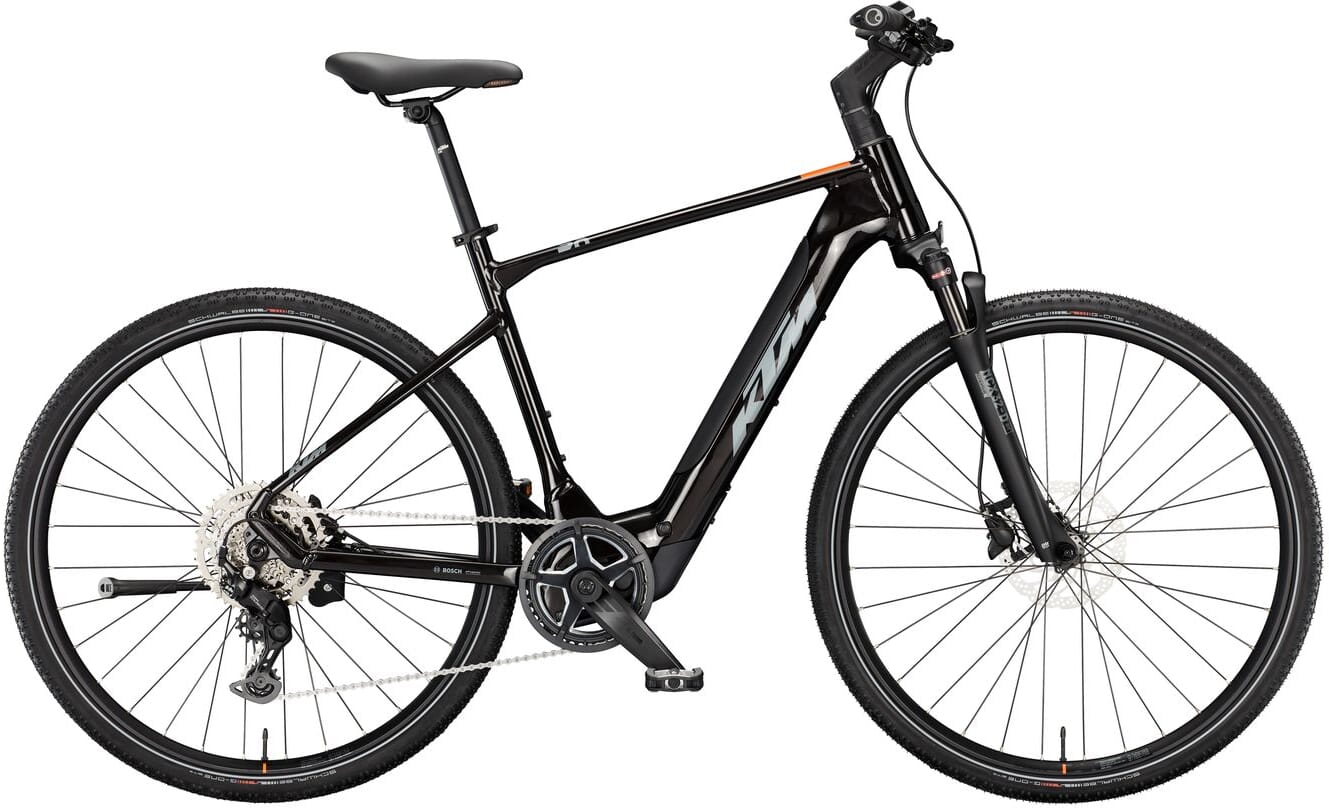

The KTM Macina Cross SX 20 stands for uncompromising riding fun. Without much fuss, the sporty trekking bike impresses with its low weight, lively drive and reliable equipment. The compact Bosch Performance SX motor with 55 Nm and a 400 Wh battery provide enough power for exciting e-bike tours. You can also take a shortcut along field and forest paths with the Macina Cross SX 20, because this electric bike is just fun to ride. Brakes and gears are made by Shimano and perform reliably.
Features of the KTM Macina Cross SX 20 2025
- Sporty trekking e-bike
- Bosch Performance Line SX drive - 55 Nm
- fully integrated 400 Wh CompactTube battery
- Bosch Purion 200 display
- Shimano CUSE 9-speed gears
- 2-piston Shimano disc brakes
eBike24 recommends: The KTM Macina Cross SX 20 is the right choice for those who like it easy - get on, ride and have fun. You will definitely enjoy the solid technology and the up-to-date e-bike system for a long time.
Properties
| Battery: | Bosch CompactTube 400Wh SMART SYSTEM |
|---|---|
| Battery capacity: | 400 Wh - 499 Wh, Dual Battery compatible |
| Battery option: | Dual Battery compatible |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line SX from 2024 Smart System |
| Brake: | Shimano MT201 / MT200 2-Piston |
| Cassette: | Shimano LG400-9 / 11-46T |
| Chain: | KMC e500 LG e-bike |
| Chainring: | KTM aluminium 42T Direct Mount |
| Charger: | Bosch Compact Charger 2A SMART SYSTEM |
| Colour: | Flaming Black (grey + orange) |
| Crank: | KTM E-TEAM2 ISIS 170mm Q8 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Shimano RT30 CL 180 / 160 |
| Display: | Bosch PURION 200 Display & Remote SMART SYSTEM |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Frame: | Macina Trekking Offroad Alloy 6061 CPT400Wh Bosch BDU31 / T-4110 |
| Frame type: | Ladies / Trapeze, Mens |
| Front wheel: | KTM Line - Shimano Deore M6000 CL 32H 100-5QR Black Jack Ready25 32H 622x25TC DT Champion 2.0 black |
| Grips: | Ergon GP1 SD |
| Handlebar: | KTM Comp II low rizer 640mm |
| Manufacturer: | KTM |
| Model year: | 2024 |
| Motor: | Bosch PERFORMANCE SX SMART SYSTEM - 25km/h / 55Nm |
| Pedal: | Trekking pedal VP-616 anti-slip |
| Permissible total weight: | 130 kg |
| Rear derailleur: | Shimano CUES U4000-9 shadow |
| Rear wheel: | KTM Line - Shimano CUES TC500 CL 32H 142-12TA Black Jack Ready25 32H 622x25TC DT Alpine II 2.34 black |
| Saddle: | Selle Royal Explora Gel |
| Seat post: | KTM Line 27.2/350 |
| Shift lever: | Shimano CUES U4000-9 display |
| Stand: | Hebie 28" adjustable |
| Suspension fork: | Suntour NCX32-D Air LO 63mm |
| Tyres: | Schwalbe G-One Bite Evo TLE 45-622 |
| Weight: | 19.1 kg |
