€4,999.00
Home delivery (Germany) 17/03/2026 - 19/03/2026
Description

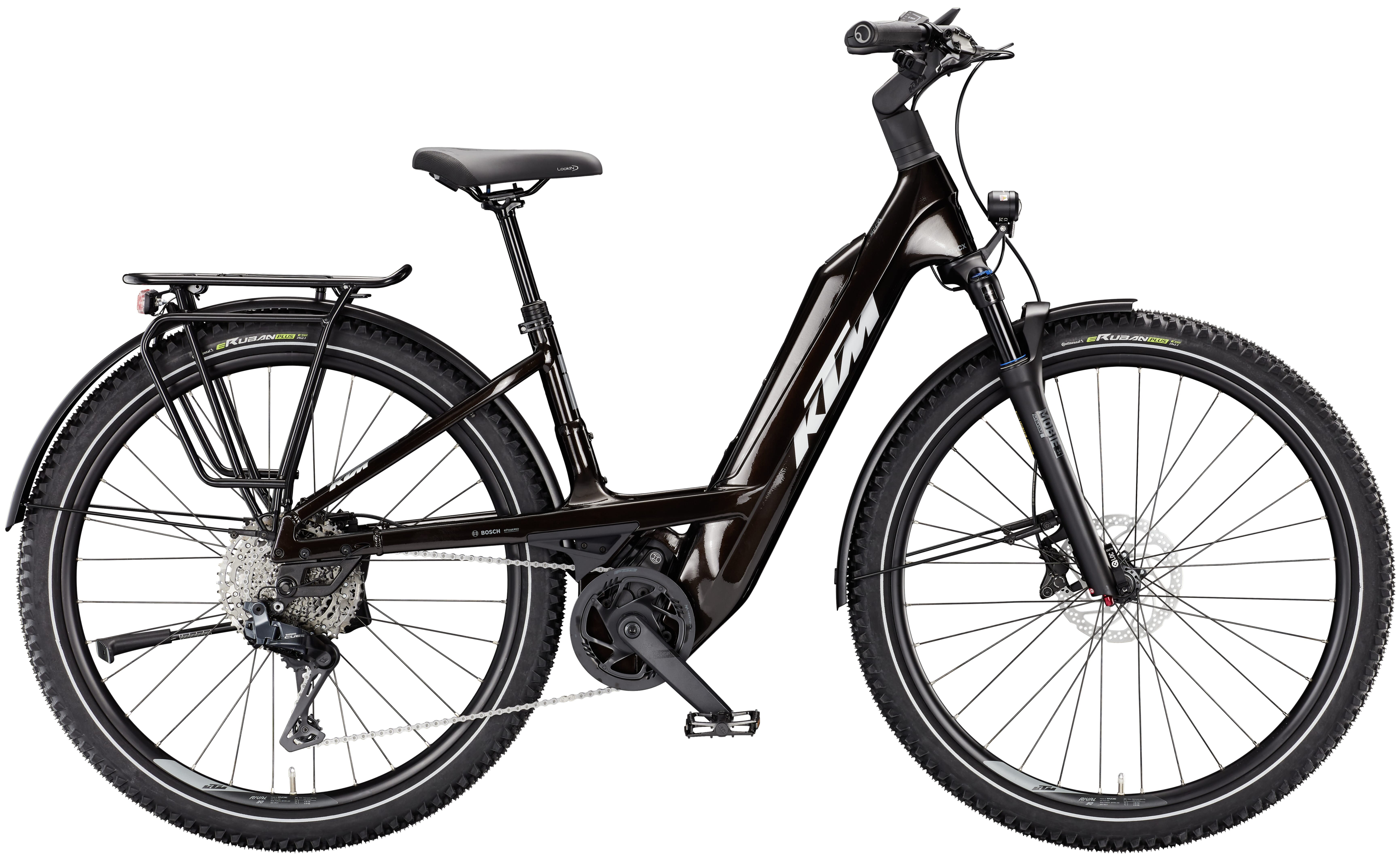

With the KTM Macina Every 830 Di2 - 2026, you get a practical hardtail trekking electric bike with high-quality equipment and a convenient step-through frame. At its core is the Bosch Performance Line CX Gen5 motor, providing powerful and reliable support. At the same time, the integrated Bosch PowerTube 800 Wh battery in the downtube supplies the bike with ample energy. Thanks to its large capacity, even extended e-bike tours are easily possible.
During your ride, you can check all relevant data via the handlebar-mounted Bosch Kiox 500 Display, which provides clear information such as current speed and battery status. Using the Bosch LED Remote, you can switch between different display views and select your preferred support mode. The control unit also operates the bike’s integrated lighting system. With the Litemove SEC-150 front light, you always illuminate the road ahead, while the Busch & Müller Toplight 2C-E rear light ensures you remain visible to other road users from behind.
Features of the KTM Macina Every 830 Di2 - 2026
- Trekking e-bike with Bosch Smart System
- Bosch Performance Line CX Gen5 motor - 100 Nm
- Bosch PowerTube 800 Wh battery
- Bosch Kiox 500 Display & LED Remote
- Litemove SEC-150 front light
- Busch & Müller Toplight 2C-E rear light
- KTM COMP II dropper seatpost
Properties
| Battery: | Bosch PowerTUBE 800Wh horizontal |
|---|---|
| Battery capacity: | 800 Wh - 899 Wh |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Shimano MT402 (3-F) / MT420 4-Piston |
| Carrier: | KTM tour 60 (snap-it 2.0 + monkeyload) childseat+rack clip |
| Cassette: | Shimano LG400-11 / 11-50 |
| Chain: | Shimano LG500 |
| Charger: | Bosch STANDARD Charger 4A |
| Colour: | WHITE (BLACK+ORANGE) | FLAMING BLACK (SILVER+GREY) |
| Control unit: | Bosch LED Remote |
| Crank: | KTM E-COMP2 ISIS 170mm Q8 |
| Derailleur/drive type: | Derailleur - chain drive, electr. derailleur - chain drive |
| Disc brakes: | Shimano RT30 CL 180 / RT30 CL 180 |
| Display: | Bosch KIOX 500 TFT display |
| Drive system: | Bosch drive |
| E-Bike Types: | Hardtail E-MTB, Trekking E-Bike |
| Fork: | Suntour Mobie34-E Air 29" 2CR 80mm 15AH2 taper |
| Frame: | Macina Trekking Onroad Alloy 6061 PTS800 Bosch BDU38 /T-5250 |
| Frame type: | Step-through |
| Front light: | Litemove SEC-150 150 Lux with CT1 connector |
| Grips: | Ergon GP1 Evo |
| Item: | KTM Macina Every 830 Di2 - 2026 |
| Manufacturer: | KTM |
| Model year: | 2026 |
| Motor: | Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm |
| Pedal: | MTB pedal flat VPE-527 alloy |
| Permissible total weight: | 147 kg |
| Rear derailleur: | Shimano CUES Di2 U8050-11 SGS shadow |
| Rear light: | B&M Toplight 2C |
| Saddle: | Selle Royal Lookin Evo |
| Seat post: | KTM COMP II dropper internal travel adjust. 30.9 T:125 |
| Shift lever: | Shimano Di2 EN605 wireless |
| Side stand: | KTM 28" adjustable MY2025 |
| Spring travel: | 80 mm |
| Tyres: | Continental E-Ruban Plus 58-622 Reflex |
| Wheel size: | 28" |
| Wheels: | KTM Line - Shimano TC600B CL 32H 148-12TA Ryde Rival30 32H 622x30C DT Alpine II 2.34 black |
