€4,499.00
Home delivery (Germany) 30/04/2026 - 05/05/2026
Description

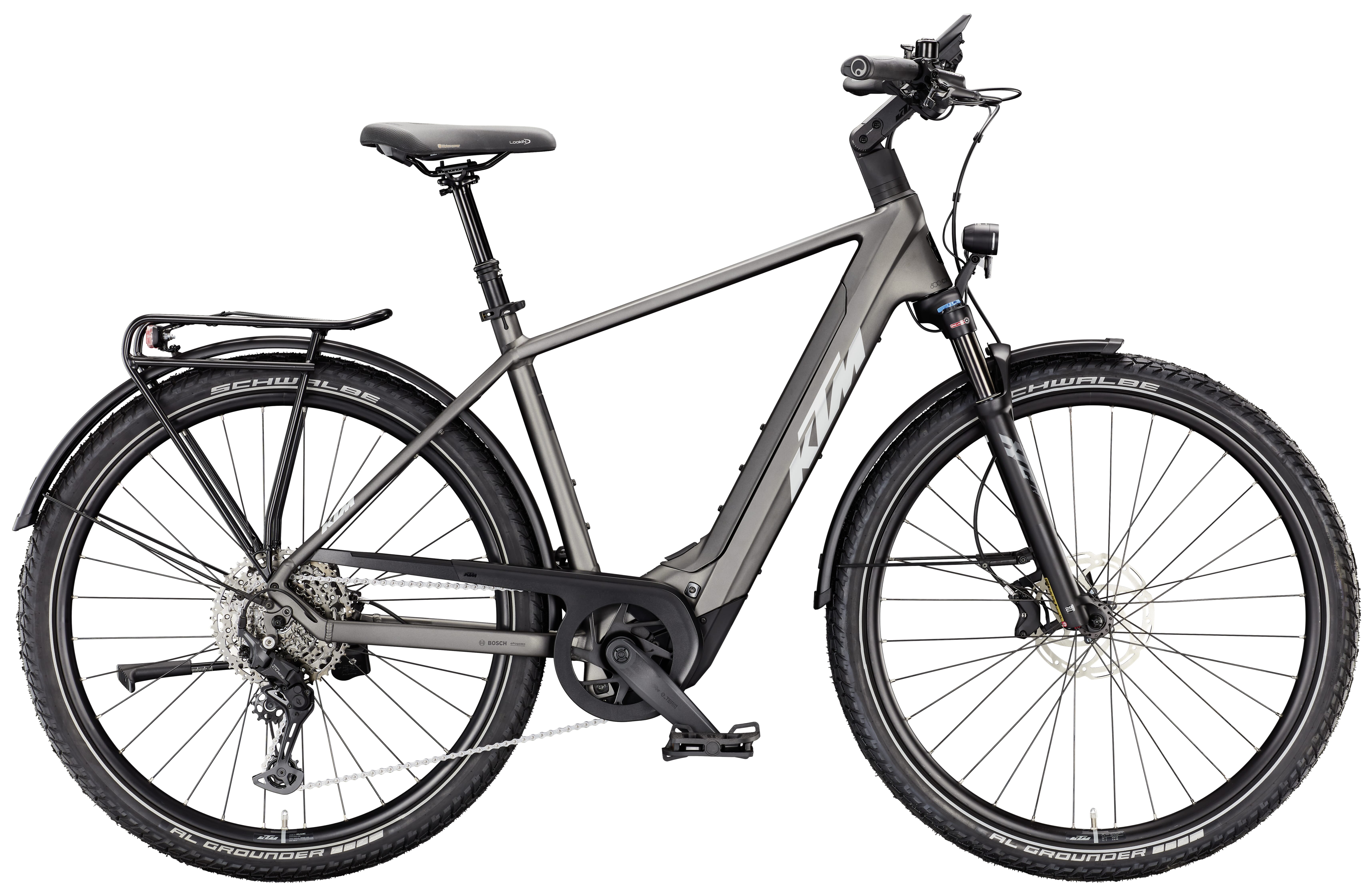

With the KTM Macina Gran 810 - 2026, you can expect a high-quality e-bike designed for comfort, range and control - ideal for touring on both firm and uneven trails. At its heart is the powerful Bosch Performance Line CX motor. With a torque of up to 100 Nm, it offers you dynamic and consistent support even on steep climbs. In combination with the Bosch PowerTube 800Wh battery, you can also enjoy an impressive range for extended trekking tours. While riding, you can read all the important data on the Bosch Kiox 500 display.
Features of the KTM Macina Gran 810 - 2026
- Trekking electric bike with Bosch Smart System
- Bosch Performance Line CX motor
- Up to 100 Nm torque
- Bosch PowerTube 800Wh battery
- Bosch Kiox 500 display
- Shimano CUES U6000 rear derailleur
- Busch and Müller lighting
Reliable equipment on the KTM Macina Gran 810
The robust Shimano CUES U6000 rear derailleur with Shadow+ technology ensures precise and reliable shifting. The Tektro TKD-139 / HD-E730 disc brakes ensure controlled and safe braking behaviour, allowing you to stop quickly in any situation. Furthermore, the Busch & Müller Toplight 2C rear light makes you clearly visible to other road users, while the Busch & Müller IQ-XS front light brightly illuminates your route.
eBike24 recommends: The KTM Macina Gran 810 is the ideal companion for trekking tours. Whether it's the daily commute to work or an excursion at the weekend - this e-bike shines with its long range and powerful support.
Properties
| : | Front: Ryde Rival30 32H 622x30C | Rear: Ryde Rival30 32H 622x30C |
|---|---|
| Battery: | Bosch PowerTUBE 800Wh horizontal |
| Battery capacity: | 800 Wh - 899 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Tektro TKD-139 / HD-E730 4-Piston |
| Carrier: | KTM light60 snap-it 2.0/monkeyload childseat + rack clip |
| Cassette: | Shimano LG400-11 / 11-50 |
| Chain: | KMC e11 Sport EPT eBike |
| Chainguard: | KTM type 9 for Bosch BDU38 |
| Chainring: | FSA steel 42T Direct Mount |
| Charger: | Bosch STANDARD Charger 4A |
| Colour: | Machine grey matt |
| Crank: | KTM E-TEAM2 ISIS 170mm 08 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Front: Tektro TR-45 2.3mm CL 180 | Rear: Tektro TR-45 2.3mm CL 160 |
| Display: | Bosch KIOX 500 TFT display |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Fork: | Suntour XCR32 ATB Air 29" LOR 80mm |
| Frame: | Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38/T5940 |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front hub: | Shimano Deore M5100 CL 32H 100-5QR |
| Front light: | B&M IQ-XS 100-150Lux HighBeam |
| Grips: | GRIP ERGON GP10 |
| Handlebar: | Ergotec Lady Town 31.8 690mm |
| Headset: | Acros AICR internal 1.5"-1.5" |
| Item: | KTM Macina Gran 810 - 2026 |
| Manufacturer: | KTM |
| Model year: | 2026 |
| Motor: | Bosch PERFORMANCE CX BDU3840 | up to 100Nm |
| Mudguard: | SKS A69R PET Trek 28" rear |
| Note: | The model is supplied with 85 Nm and can be extended by you to up to 100 Nm via the Bosch Flow app. |
| Pedal: | Ergotec EP-2 pedal |
| Permissible total weight: | 147 kg |
| Rear derailleur: | Shimano CUES U6000-11/10 LG shadow+ |
| Rear hub: | Shimano Deore M5100 CL 32H 135-5QR |
| Rear light: | B&M Toplight 2C |
| Saddle: | Selle Royal Lookin |
| Saddle clamp: | KTM Line JD-SC99 - 34.9mm |
| Seat post: | KTM Line dropper + suspension 30.9 T:100 |
| Shift lever: | Shimano CUES U6000-11 display |
| Side stand: | KTM 28" adjustable MY2025 |
| Spokes: | Front: DT Champion 2.0 black | Rear: DT Alpine II 2.34 black |
| Stem: | KTM Line adjust. 0-60° ICR |
| Tyres: | Front: Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex | Rear: Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex |
