€4,999.00
Home delivery (Germany) 18/05/2026 - 20/05/2026
Description

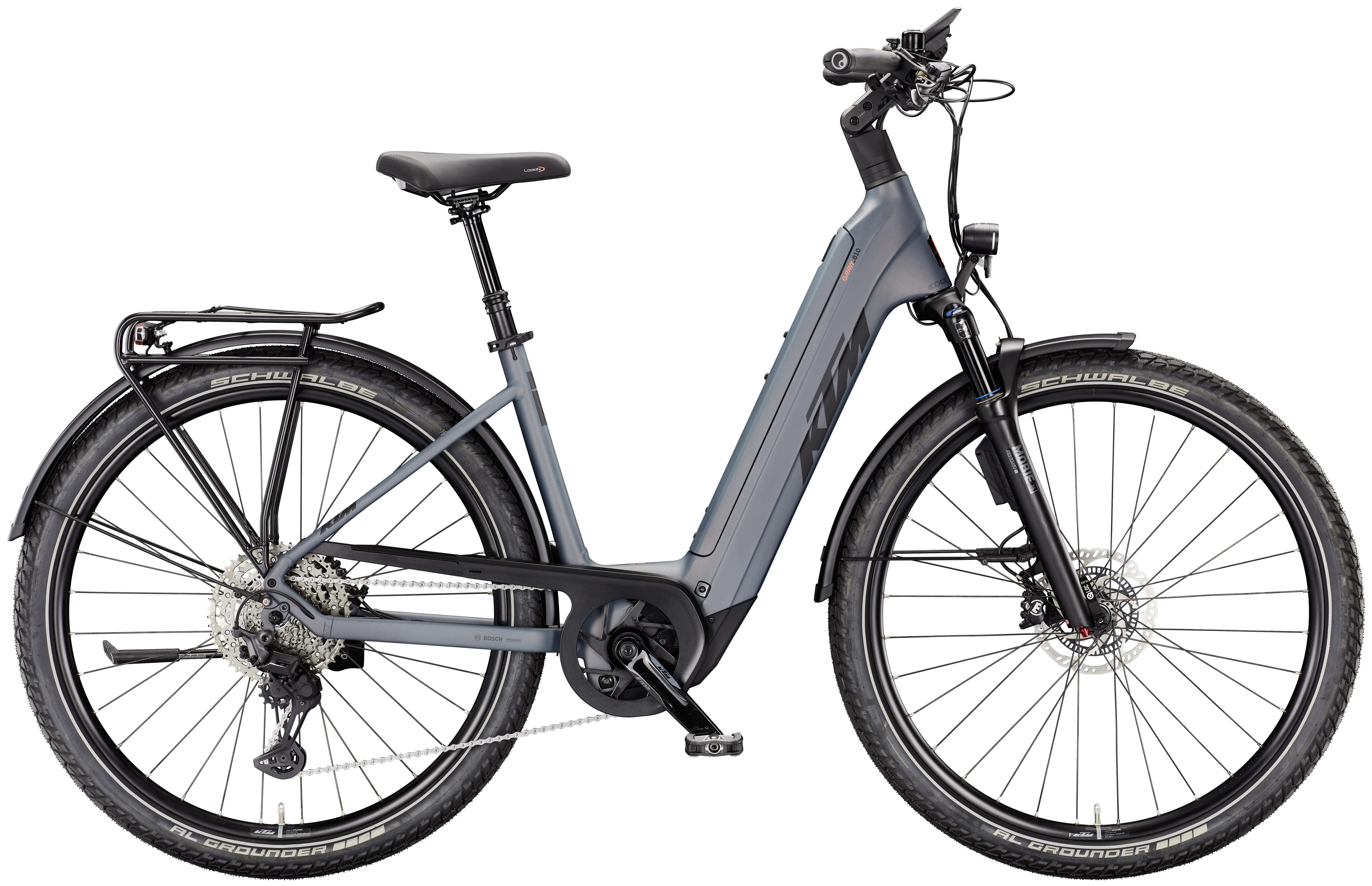

With the KTM Macina Gran 810 ABS 29 - 2026, you get a reliable trekking e-bike that combines safety, performance and comfort. It is powered by the powerful Bosch Performance Line CX motor with a torque of up to 100 Nm, which provides powerful support and dynamic riding performance. At the same time, the Bosch PowerTube 800Wh battery integrated in the down tube supplies the bike with the necessary power. Thanks to the large battery capacity, you are ideally equipped for extended tours - whether on firm tarmac roads or on more uneven paths. The system is controlled via the Bosch Kiox 500, and while riding you can read all the important riding data such as speed, range and battery status on the display.
Features of the KTM Macina Gran 810 ABS 29 - 2026
- Trekking electric bike with Bosch Smart System
- Bosch Performance Line CX motor
- Up to 100 Nm torque
- Bosch PowerTube 800Wh battery
- Bosch Kiox 500 display
- Magura MTC ABS brakes
- Suntour Mobie34 Air 29" fork
Safety on the KTM Macina Gran 810 ABS 29
A key safety feature of the Macina Gran 810 ABS 29 is the integrated Magura MTC ABS 4-piston brake system. In conjunction with the anti-lock braking system, it ensures controlled and stable braking - even on slippery surfaces or when fully loaded. The setup is complemented by the high-quality Suntour Mobie34 Air suspension fork with 80 mm travel, which reliably compensates for bumps and provides noticeably more riding comfort.
eBike24 recommends: The KTM Macina Gran 810 ABS 29 offers maximum safety combined with high-quality equipment and a comfortable ride.
Properties
| : | Front: Ryde Rival30 32H 622x30C | Rear: Ryde Rival30 32H 622x30C |
|---|---|
| Battery: | Bosch PowerTUBE 800Wh horizontal |
| Battery capacity: | 800 Wh - 899 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Magura MTC ABS 4-Piston |
| Carrier: | KTM light 60 (snap-it 1.0) |
| Cassette: | Shimano LG400-11 / 11-50 |
| Chain: | KMC e11 Sport EPT eBike |
| Chainguard: | KTM type 9 for Bosch BDU38 |
| Chainring: | FSA steel 42T Direct Mount |
| Charger: | Bosch STANDARD Charger 4A |
| Colour: | Flaming grey matt |
| Crank: | KTM E-TEAM ISIS 170mm 016 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Front: Magura MDR-C CL 180 | Rear: Magura MDR-C CL 180 |
| Display: | Bosch KIOX 500 TFT display |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Fork: | Suntour Mobie34 Air 29" 2CR 80mm 15QLC |
| Frame: | Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38/T5940 |
| Frame type: | Step-through |
| Front light: | B&M IQ-XS 100-150Lux HighBeam |
| Front wheel: | Shimano Deore M6010 CL 32H 100-15TA |
| Gearshift stages: | 11-speed |
| Grips: | Ergon GP1 SD |
| Handlebar: | Ergotec Lady Town 31.8 690mm |
| Headset: | Acros AICR internal 1.5"-1.5" |
| Item: | KTM Macina Gran 810 ABS 29 - 2026 |
| Manufacturer: | KTM |
| Model year: | 2026 |
| Motor: | Bosch PERFORMANCE CX BDU3840 | up to 100 Nm |
| Mudguard: | SKS A69R PET Trek 28" rear |
| Note: | The model is supplied with 85 Nm and can be extended by you to up to 100 Nm via the Bosch Flow app. |
| Pedal: | Trekking pedal VP-616 anti-slip |
| Permissible total weight: | 1260135 |
| Rear derailleur: | Shimano Deore XT M8130-11 LG shadow+ |
| Rear light: | B&M Toplight 2C |
| Rear wheel: | Shimano Deore M5100 CL 32H 135-5QR |
| Saddle: | Selle Royal Lookin 3D |
| Saddle clamp: | KTM Line JD-SC99 - 34.9mm |
| Seat post: | KTM Line dropper + suspension 30.9 T:100 |
| Shift lever: | Shimano Deore XT M8130-11 LG |
| Side stand: | KTM 28" adjustable |
| Spokes: | Front: DT Champion 2.0 black | Rear: DT Alpine II 2.34 black |
| Stem: | KTM Line adjust. 0-60° ICR |
| Tyres: | Front: Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex | Rear: Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex |
