KTM Macina Gran 810 Di2 - 2026

Preview: KTM Macina Gran 810 Di2 2026 - Step-through bike

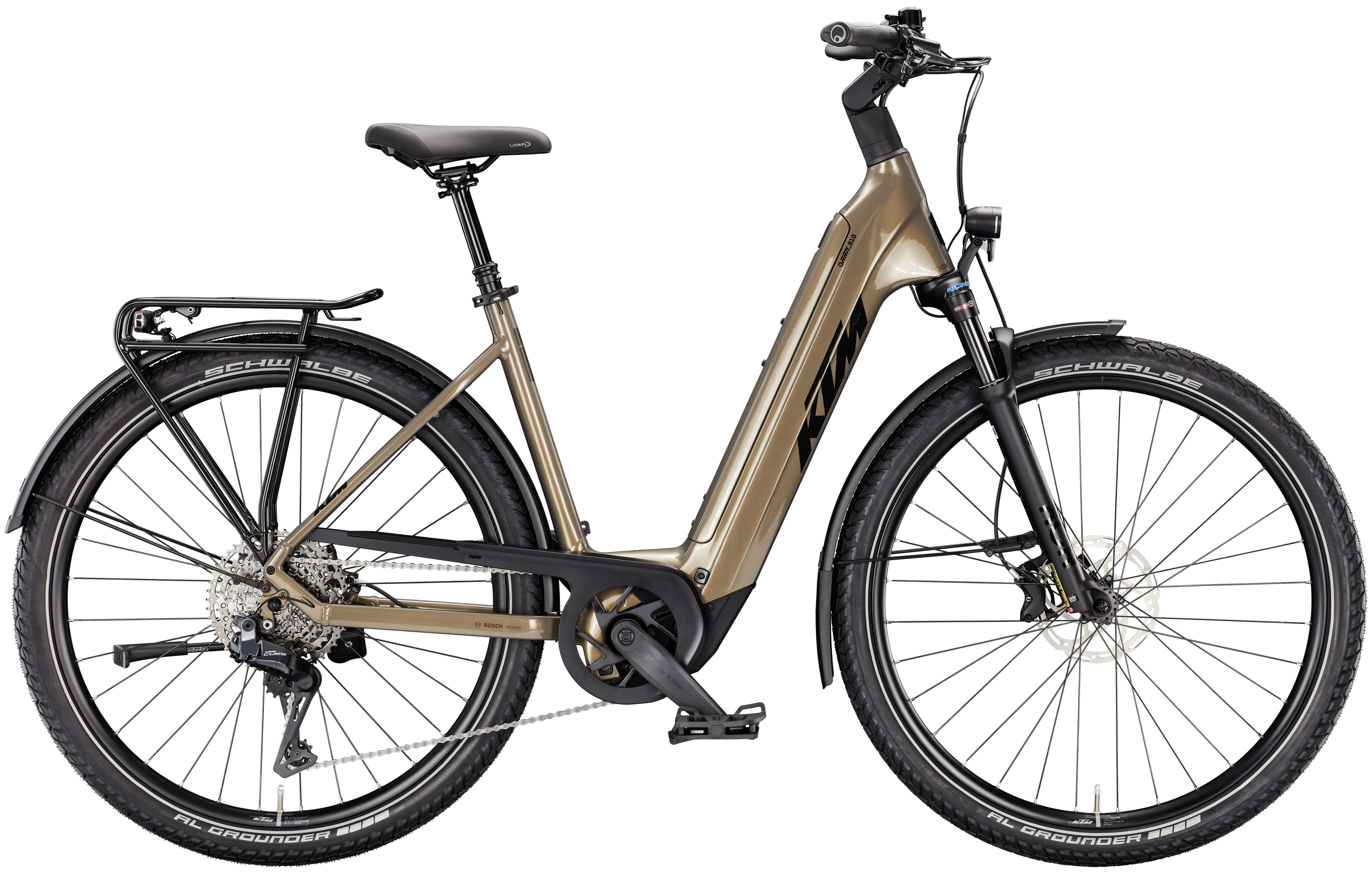

KTM Macina Gran 810 Di2 2026 - Step-through bike

4,999.00€

Prices incl. VAT plus shipping costs

Item number: 11520-001
Manufacturer Part Number: 1260130106

Close menu

The KTM Macina Gran 810 Di2 - 2026 is a stylish trekking e-bike that impresses with its features, range and riding comfort. With the powerful Bosch Performance Line CX motor, you will experience impressive support of up to 100 Nm, even on steep climbs. At the same time, the fully integrated Bosch PowerTube 800Wh battery ensures maximum range. The KTM Trekking eBike relies on the reliable Shimano CUES Di2 U8050 rear derailleur for shifting. The wireless Di2 technology with its automatic reset function ensures that the shifting mechanism is brought back into position in the event of a heavy impact. This allows you to shift gears quickly and precisely in any situation.

Features of the KTM Macina Gran 810 Di2 - 2026

Trekking electric bike with Bosch Smart System
Bosch Performance Line CX motor
Up to 100 Nm torque
Bosch PowerTube 800Wh battery
Bosch Kiox 500 display
Shimano CUES Di2 rear derailleur
Suntour XCR32 ATB Air 29" fork

Equipment on the KTM Macina Gran 810 Di2

The Macina Gran 810 Di2 is equipped with the Bosch Kiox 500 display. This provides you with all relevant riding data in razor-sharp visualisation and impresses with its intuitive operation and smart connectivity. The high-quality Busch and Müller lighting ensures optimum visibility and safety at any time of day. While the IQ-XS HighBeam front light brightly illuminates your route, the Dart Brex rear light ensures that you are clearly visible to other road users. The KTM Racktime Light 60 luggage rack is also ideal for transporting bike panniers.

eBike24 recommends: With the KTM Macina Gran 810 Di2, you can expect an all-round well thought-out trekking e-bike that perfectly combines comfort and suitability for everyday use.

Specifications

E-Bike Types:	Cross E-Bike, Trekking E-Bike
Model year:	2026
Battery capacity:	800 Wh - 899 Wh
Drive system:	Bosch drive
Manufacturer:	KTM
Frame type:	Ladies / Trapeze, Mens, Step-through
Derailleur/drive type:	Derailleur - chain drive, electr. derailleur - chain drive
Gearshift stages:	11-speed
Battery position:	Intube battery / frame integrated
Bosch System:	Bosch Performance Line CX from 2025 Smart System
Frame:	Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38/T5940
Fork:	Suntour XCR32 ATB Air 29" LOR 80mm
Battery:	Bosch PowerTUBE 800Wh horizontal
Tyres:	Front: Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex \| Rear: Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex
Saddle:	Selle Royal Lookin
Seat post:	KTM Line dropper + suspension 30.9 T:100
Carrier:	KTM light60 snap-it 2.0/monkeyload childseat + rack clip
Item:	KTM Macina Gran 810 Di2 - 2026
Colour:	Olive Pearl (Black)
Stem:	KTM Line adjust. 0-60° ICR
Display:	Bosch KIOX 500 TFT display
Side stand:	KTM 28" adjustable MY2025
Note:	The model is supplied with 85 Nm and can be extended by you to up to 100 Nm via the Bosch Flow app.
Mudguard:	SKS A69R PET Trek 28" rear
Chainring:	FSA steel 42T Direct Mount
Grips:	GRIP ERGON GP10
Motor:	Bosch PERFORMANCE CX BDU3840 \| up to 100 Nm
Headset:	Acros AICR internal 1.5"-1.5"
Rear light:	B&M Dart brex
Front light:	B&MIQ-XS 100-150Lux HighBeam
Pedal:	Ergotec EP-2 pedal
Handlebar:	Ergotec Lady Town 31.8 690mm
Permissible total weight:	146 kg
Crank:	KTM E-TEAM2 ISIS 170mm 08
Cassette:	Shimano LG400-11 / 11-50
Rear derailleur:	Shimano CUES Di2 U8050-11 SGS shadow
Chain:	KMC e11 Sport EPT eBike
Shift lever:	Shimano CUES Di2 EN605 Switch
Chainguard:	KTM type 9 for Bosch BDU38
Charger:	Bosch STANDARD Charger 4A
Spokes:	Front: DT Champion 2.0 black \| Rear: DT Alpine II 2.34 black
Front wheel:	Shimano Deore M5100 CL 32H 100-5QR
Rear wheel:	Shimano Deore M5100 CL 32H 135-5QR
Disc brakes:	Front: Tektro TR-45 2.3mm CL 180 \| Rear: Tektro TR-45 2.3mm CL 160
Brake:	Tektro TKD-139 / HD-E730 4-Piston
:	Front: Ryde Rival30 32H 622x30C \| Rear: Ryde Rival30 32H 622x30C
