€4,999.00
Home delivery (Germany) 26/03/2026 - 30/03/2026
Description

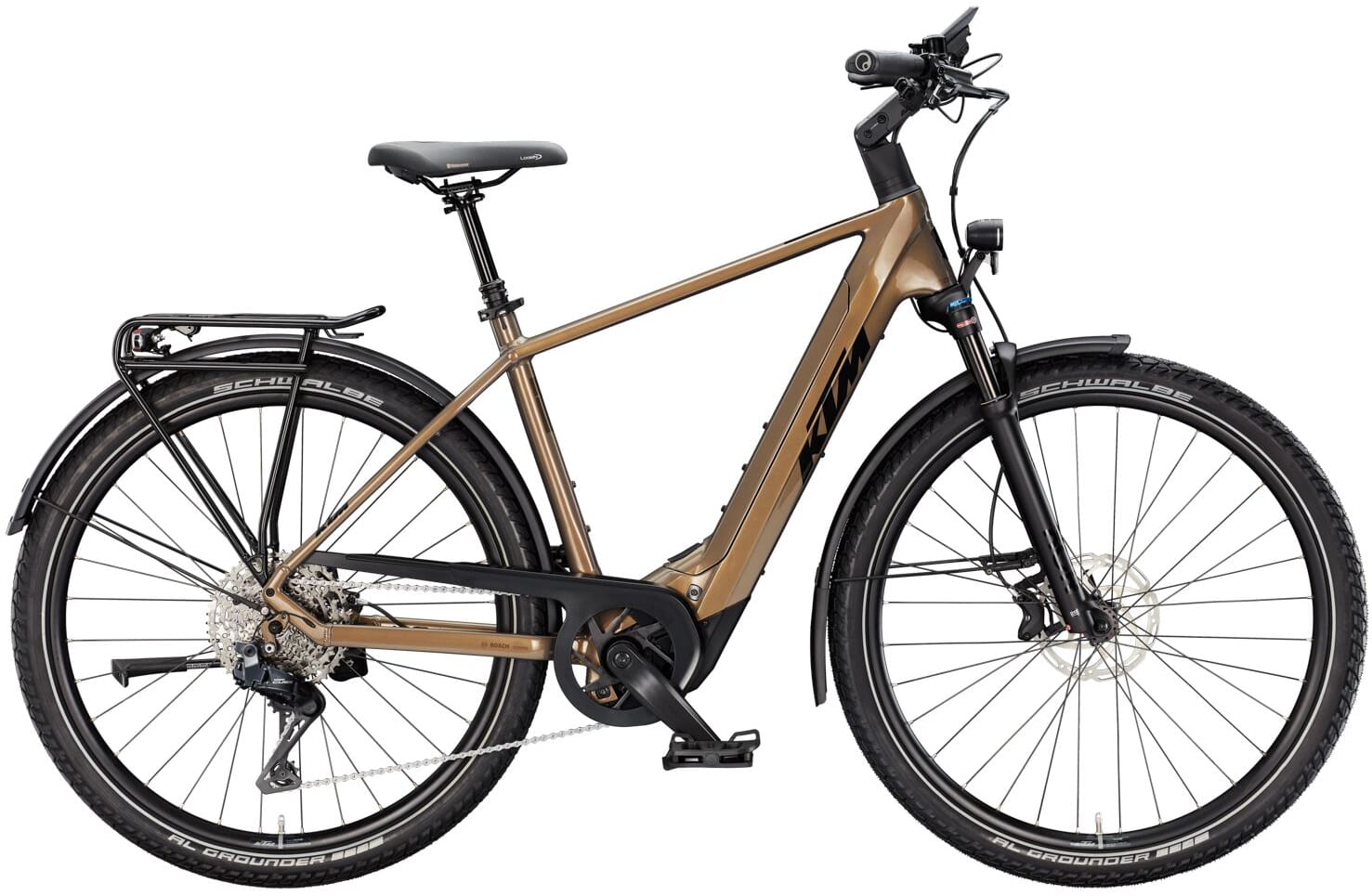

The KTM Macina Gran 810 Di2 stands for uncompromising trekking and touring pleasure. The Gran makes eBiking as pleasant as possible. Choose from three frame shapes to suit your needs. Cycle towards endless distances with the quiet Bosch Performance Line CX Gen.5 and 800 Wh battery. Shift gears electronically or fully automatically with the Shimano Cues Di2 11-speed derailleur. Master dirt roads with ease thanks to the 80 mm suspension fork, wide tyres and suspension, retractable seat post. Stay informed about your KTM Macina Gran 810 via the large Kiox 500 display. And rely on high-quality touring equipment with Busch and Müller lighting system and multifunctional luggage rack.
Features of the KTM Macina Gran 810 Di2 - 2025
- High-quality trekking eBike
- Bosch Perf. Line Gen.5 motor
- Bosch PowerTube 800 Wh
- Bosch Kiox 500 display
- Electric Shimano Cues Di2 gears with auto-shift
- 4-piston disc brakes from Tektro
- Busch and Müller lighting system
eBike24 recommends: The KTM Macina Gran is the right choice for anyone looking for an uncompromising trekking eBike for long tours.
Properties
| Battery: | Bosch PowerTUBE 800Wh horizontal |
|---|---|
| Battery capacity: | 800 Wh - 899 Wh, Dual Battery compatible |
| Battery option: | Dual Battery compatible |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Tektro TKD-139 / HD-E730 4-piston |
| Carrier: | KTM Light 60 (Snap-it 2.0 + Monkeyload) |
| Cassette: | Shimano LG400-11 / 11-50 |
| Chain: | KMC e11 Sport EPT eBike |
| Charger: | Bosch Standard Charger 4A |
| Colour: | OLIVE PEARL |
| Control unit: | Bosch LED Remote |
| Crank: | KTM E-Team2 ISIS 170mm Q8 |
| Derailleur/drive type: | Derailleur - chain drive, electr. derailleur - chain drive |
| Disc brakes: | Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 160 |
| Display: | Bosch KIOX 500 TFT display |
| Drive system: | Bosch drive |
| E-Bike Types: | Trekking E-Bike |
| Fork: | Suntour XCR32 ATB Air 29" LOR 80mm taper |
| Frame: | Macina Trekking Onroad Alloy 6061 |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front light: | B&M IQ-XS 100-150Lux HighBeam |
| GPS: | Bosch ConnectModule |
| Grips: | Ergon GP1 Evo |
| Handlebar: | Ergotec Lady Town 630mm |
| Item: | KTM Macina Gran 810 Di2 - 2025 |
| Manufacturer: | KTM |
| Model year: | 2025 |
| Motor: | Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm |
| Pedal: | Ergotec EP-2 pedal |
| Rear derailleur: | Shimano CUES Di2 U8050-11 SGS shadow |
| Rear light: | B&M Dart brex |
| Saddle: | Selle Royal Lookin Man |
| Seat post: | KTM Line Dropper + Suspension 30.9 |
| Shift lever: | Shimano Di2 EN605 wireless |
| Side stand: | KTM 28" bike stand, adjustable |
| Spring travel: | Front: 80mm |
| Stem: | KTM Line adjust. 0-60° ICR |
| Tyres: | Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex |
| Weight: | 28.1 kg |
| Wheel size: | 28" |
| Wheels: | KTM Line - Shimano Deore M5100 |
