€4,299.00
On order, delivery date unknown
Description

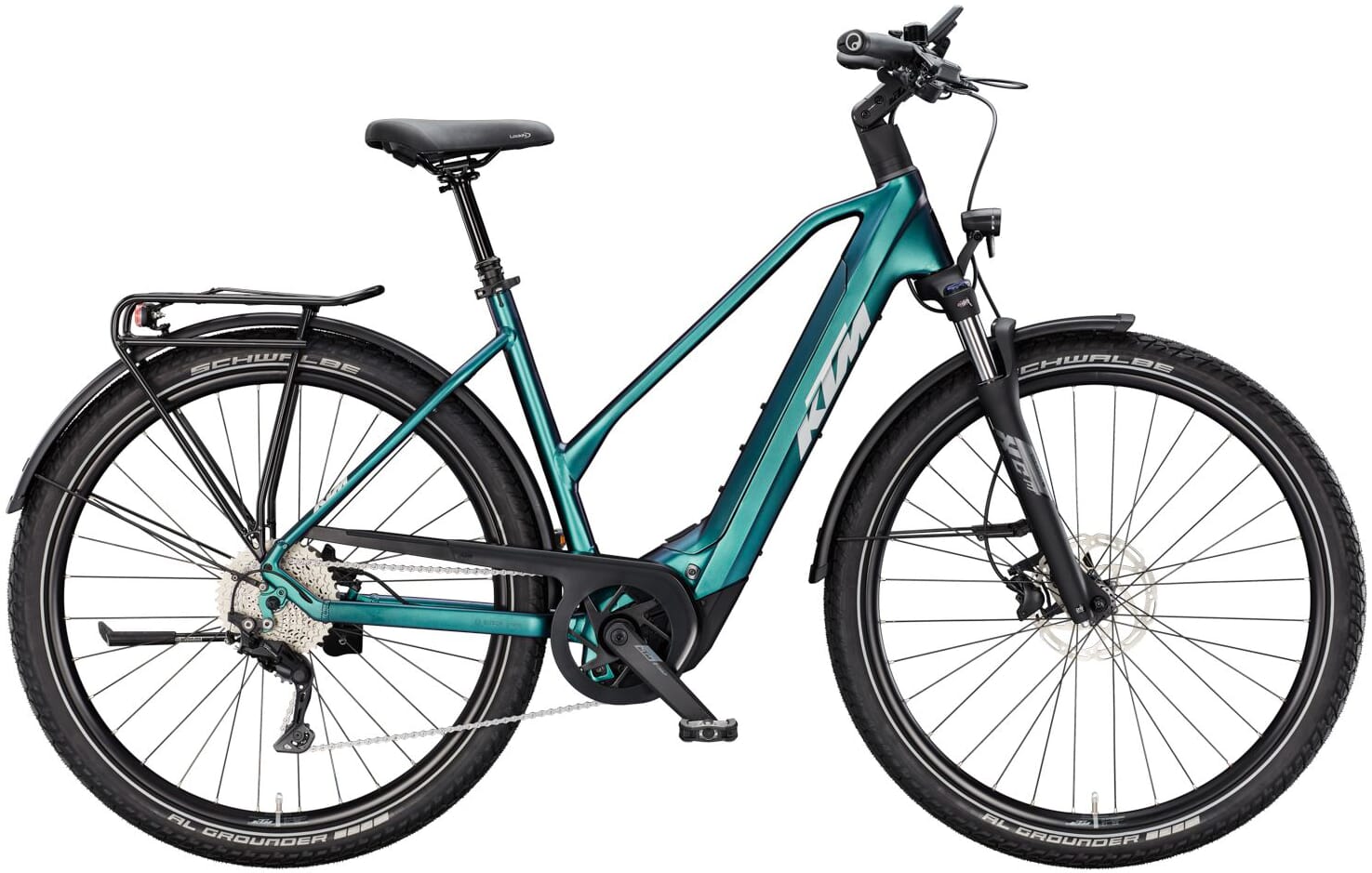

The KTM Macina Gran 820 is your faithful companion on all tours. The Gran combines powerful eBike technology with plenty of comfort features. The wide tyres, suspension seatpost and ergonomic handlebars ensure a comfortable ride. Thanks to its complete city and touring equipment with Busch and Müller lighting system, luggage rack and mudguards, it is ideal for everyday use and cycling holidays. No matter where your KTM Macina Gran 820 takes you, you can rely on the Bosch Performance Line CX Gen.5 motor. A powerful 85 Nm of torque pushes you effortlessly up every hill. The 5th motor generation is particularly quiet and can also be pedalled comfortably without assistance. With the 800 Wh battery, you don't need to worry about an empty battery.
Features of the KTM Macina Gran 820 2025
- Top trekking eBike
- Bosch Perf. Line CX Gen.5 motor
- Bosch PowerTube 800 Wh - removable
- Large Bosch Kiox 500 display
- Complete touring equipment
- Retractable suspension seat post
- Shimano Deore 10-speed gears
Ebike24 recommends: The KTM Macina Gran 820 is the ideal touring and trekking eBike for leisurely rides in and out of town.
Properties
| Battery: | Bosch PowerTUBE 800Wh horizontal |
|---|---|
| Battery capacity: | 800 Wh - 899 Wh, Dual Battery compatible |
| Battery option: | Dual Battery compatible |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Tektro TKD-139 / HD-E730 4-piston |
| Carrier: | KTM light 60 (Snap-it 2.0 + Monkeyload) |
| Cassette: | Shimano Deore M4100-10 / 11-42 |
| Chain: | KMC e11 Sport EPT eBike |
| Charger: | Bosch Standard Charger 4A |
| Colour: | GREEN PURPLE FLIP MATT |
| Control unit: | Bosch LED Remote |
| Crank: | KTM E-Team2 ISIS 170mm Q8 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 160 |
| Display: | Bosch Intuvia 100 Display |
| Drive system: | Bosch drive |
| E-Bike Types: | Trekking E-Bike |
| Fork: | Suntour XCR32 ATB Air 29" LOR 80mm taper |
| Frame: | Macina Trekking Onroad Alloy 6061 |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front light: | B&M IQ-XS 100-150Lux HighBeam |
| GPS: | Bosch ConnectModule |
| Grips: | Ergon GP1 Evo |
| Handlebar: | Ergotec Lady Town 630mm |
| Item: | KTM Macina Gran 820 - 2025 |
| Manufacturer: | KTM |
| Model year: | 2025 |
| Motor: | Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm |
| Pedal: | Ergotec EP-2 pedal |
| Rear derailleur: | Shimano Deore M4120-10 SGS shadow |
| Rear light: | B&M Dart brex |
| Saddle: | Selle Royal Lookin Man |
| Seat post: | KTM Line Dropper + Suspension 30.9 |
| Shift lever: | Shimano Deore M4100-10 display |
| Side stand: | KTM 28" bike stand MY2025, adjustable |
| Spring travel: | Front: 80mm |
| Stem: | KTM Line adjust. 0-60° ICR |
| Tyres: | Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex |
| Weight: | 28.1 kg |
| Wheel size: | 28" |
| Wheels: | KTM Line - Shimano Deore M5100 |
