€4,599.00
Home delivery (Germany) 26/03/2026 - 30/03/2026
Description

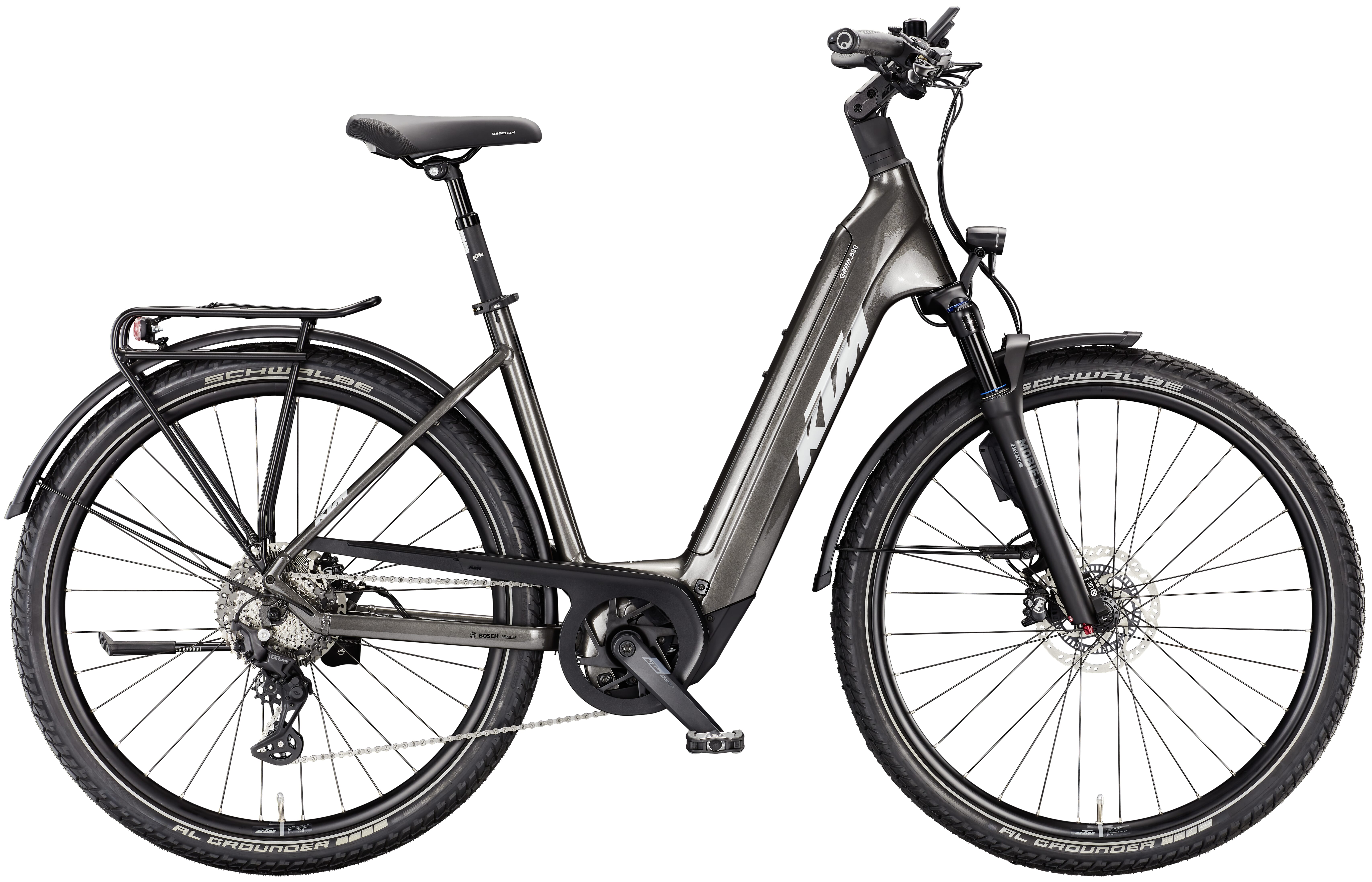

The KTM Macina Gran 820 ABS 29 - 2026 is a high-quality trekking e-bike, ideal for long tours. Driven by the powerful Bosch Performance CX motor, the model offers dynamic yet harmonious support with up to 100 Nm of torque. At the same time, the Bosch PowerTube 800Wh battery integrated in the down tube supplies the system with the necessary power and enables a long range. The Bosch Intuvia 100 LCD display is also located on the handlebar, providing you with clear information on speed, battery status and riding mode at all times.
Features of the KTM Macina Gran 820 ABS 29 - 2026
- Trekking electric bike with Bosch Smart System
- Bosch Performance Line CX motor
- Up to 100 Nm torque
- Bosch PowerTube 800Wh battery
- Bosch Kiox 500 display
- Magura MTC ABS brakes
- KTM Light 60 luggage rack
Safety & comfort on the KTM Macina Gran 820 ABS 29
For maximum control and safety, even when braking abruptly, the Macina Gran 820 is equipped with Magura MTC ABS brakes. In combination with the robust Magura MDR-C CL brake discs, you can brake reliably in any weather. The practical KTM Light 60 luggage rack with Snap-it 1.0 system is also installed. This allows you to conveniently store all your important items in a pannier bag and take them with you on your eBike.
eBike24 recommends: The KTM Macina Gran 820 ABS 29 combines safety with practical trekking equipment. This makes it an ideal e-bike for long, leisurely tours both in and out of the city.
Properties
| : | Front: Ryde Rival30 32H 622x30C | Rear: Ryde Rival30 32H 622x30C |
|---|---|
| Battery: | Bosch PowerTUBE 800Wh horizontal |
| Battery capacity: | 800 Wh - 899 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Magura MTC ABS 4-Piston |
| Carrier: | KTM light 60 (snap-it 1.0) |
| Cassette: | Shimano LG600-10 / 11-43 |
| Chain: | Shimano LG500 |
| Chainguard: | KTM type 9 for Bosch BDU38 |
| Chainring: | FSA steel 42T Direct Mount |
| Charger: | Bosch STANDARD Charger 4A |
| Colour: | Machine Grey (Silver + Black) |
| Crank: | KTM E-TEAM ISIS 170mm 016 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Front: Magura MDR-C CL 180 | Rear: Magura MDR-C CL 180 |
| Display: | Bosch INTUVIA 100 LCD display |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Fork: | Suntour Mobie34 Air 29" 2CR 80mm 15QLC |
| Frame: | Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38/T5940 |
| Frame type: | Step-through |
| Front hub: | Shimano Deore M6010 CL 32H 100-15TA |
| Front light: | B&M Myc 50Lux |
| Gearshift stages: | 10-speed |
| Grips: | Ergon GP1 SD |
| Handlebar: | Ergotec Lady Town 31.8 690mm |
| Headset: | Acros AICR internal 1.5"-1.5" |
| Item: | KTM Macina Gran 820 ABS 29 - 2026 |
| Manufacturer: | KTM |
| Model year: | 2026 |
| Motor: | Bosch PERFORMANCE CX BDU3840 | up to 100 Nm |
| Mudguard: | SKS A69R PET Trek 28" rear |
| Note: | The model is supplied with 85 Nm and can be extended by you to up to 100 Nm via the Bosch Flow app. |
| Pedal: | Trekking pedal VP-616 anti-slip |
| Permissible total weight: | 147 KG |
| Rear derailleur: | Shimano Deore M5130-10 LG shadow+ |
| Rear hub: | Shimano Deore M6000 CL 32H 135-5QR |
| Rear light: | B&M Toplight 2C |
| Saddle: | Selle Royal Essenza |
| Saddle clamp: | KTM Line JD-SC99 - 34.9mm |
| Seat post: | KTM Line Elegance suspension 30.9/300 |
| Shift lever: | Shimano Deore M5130-10 LG display |
| Side stand: | KTM 28" adjustable |
| Spokes: | Front: DT Champion 2.0 black | Rear: DT Alpine II 2.34 black |
| Stem: | KTM Line adjust. 0-60° ICR |
| Tyres: | Front: Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex | Rear: Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex |
