Description
The KTM Macina Gran 830 - 2026 was designed for e-cyclists who do not want to compromise on their tours. With the powerful Bosch Performance Line CX motor and a torque of 85 Nm, this electric bike provides reliable support even on demanding climbs. The Bosch PowerTube 800Wh battery integrated in the frame ensures impressive ranges - ideal for extended trekking tours or the daily commute. While riding, the robust Suntour XCM 32 ATB suspension fork reliably absorbs bumps and contributes to a pleasant riding experience. The system is controlled via the compact Bosch Purion 200 display - a practical combination of display and control unit that provides clear information and can be operated intuitively.
Features of the KTM Macina Gran 830 - 2026
- Trekking e-bike with Bosch Smart System
- Bosch Performance Line CX motor
- with 85 Nm torque
- Bosch PowerTube 800Wh battery
- Bosch Purion 200 display & remote
- Suntour XCM 32 ATB suspension fork
- KTM Light 60 luggage rack
High-quality equipment on the KTM Macina Gran 830
For safe braking in any weather, the Macina Gran 830 is equipped with reliable Shimano MT200 brakes, which, in combination with the Shimano RT30 centre-lock brake discs, enable precise and easily controllable braking performance. Luggage can also be carried comfortably on the KTM Light 60 luggage rack. This is compatible with the Snap-it 2.0 system and the MonkeyLoad system and can be fitted with various panniers.
eBike24 recommends: Whether for relaxed rides, the daily commute to work or longer weekend tours - the KTM Macina Gran 830 offers you a balanced combination of performance, comfort and functionality.
Properties
| : | Front: Ryde Rival30 32H 622x30C | Rear: Ryde Rival30 32H 622x30C |
|---|---|
| Battery: | Bosch PowerTUBE 800Wh horizontal |
| Battery capacity: | 800 Wh - 899 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Shimano MT200 / MT200 2-Piston |
| Carrier: | KTM light60 snap-it 2.0/monkeyload childseat + rack clip |
| Cassette: | Shimano LG400-10 / 11-48 |
| Chain: | Shimano LG500 |
| Chainguard: | KTM type 9 for Bosch BDU38 |
| Chainring: | FSA steel 42T Direct Mount |
| Charger: | Bosch COMPACT Charger 2A |
| Colour: | Machine Grey Matt (Silver) |
| Crank: | KTM E-COMP ISIS 170mm Q16 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Front: Shimano RT30 CL 180 | Rear: Shimano RT30 CL 160 |
| Display: | Bosch PURION 200 Display & Remote |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Fork: | Suntour XCM 32 ATB coil 29" NLO 80mm |
| Frame: | Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38/T5940 |

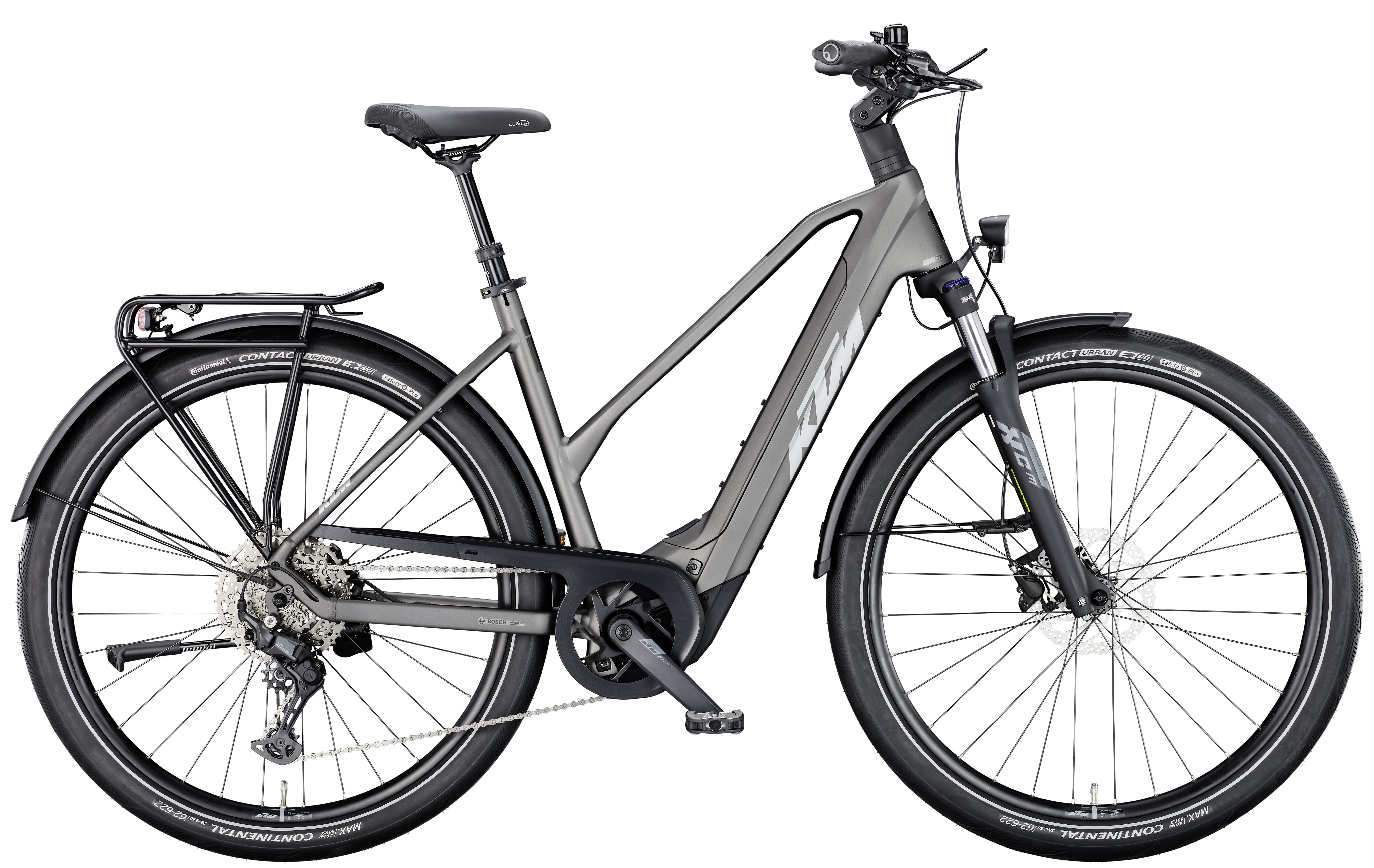

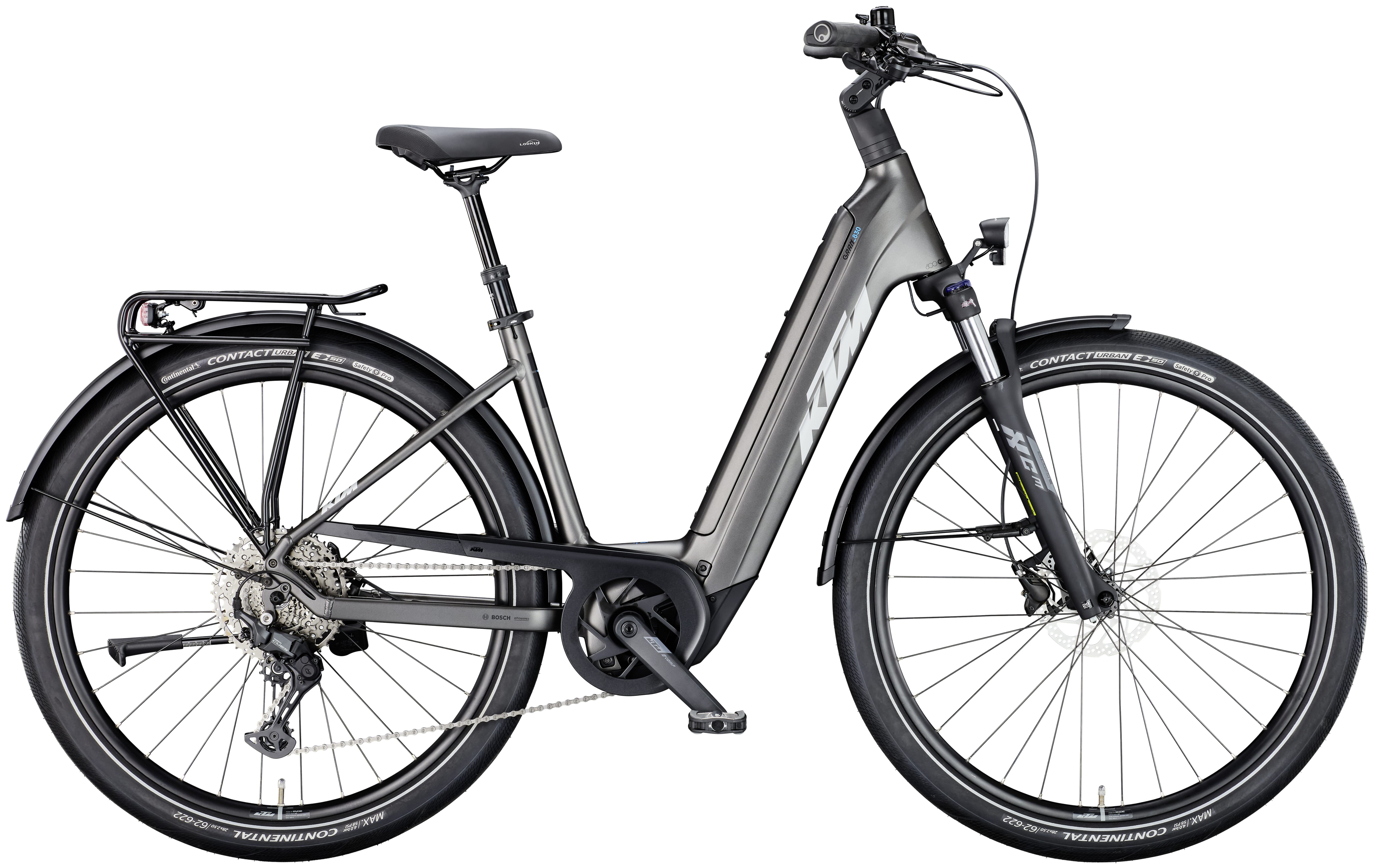

| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front hub: | Shimano Deore M5100 CL 32H 100-5QR |
| Front light: | Litemove RLX-100 100Lux down |
| Grips: | GRIP ERGON GP10 |
| Handlebar: | Ergotec Lady Town 31.8 690mm |
| Headset: | Acros AICR internal 1.5"-1.5" |
| Item: | KTM Macina Gran 830 - 2026 |
| Manufacturer: | KTM |
| Model year: | 2026 |
| Motor: | Bosch PERFORMANCE CX BDU3840 | 85 Nm |
| Mudguard: | SKS A69R PET Trek 28" rear |
| Pedal: | Trekking pedal VP-616 anti-slip |
| Permissible total weight: | 139 kg |
| Rear derailleur: | Shimano CUES U6000-11/10 LG shadow+ |
| Rear hub: | Shimano Deore M6000 CL 32H 135-5QR |
| Rear light: | B&M Toplight 2C |
| Saddle: | Selle Royal Lookin |
| Saddle clamp: | KTM Line JD-SC99 - 34.9mm |
| Seat post: | KTM Line II dropper 30.9 T:100 |
| Shift lever: | Shimano CUES U6000-10 display |
| Side stand: | KTM 28" adjustable MY2025 |
| Spokes: | Front: DT Champion 2.0 black | Rear: DT Alpine II 2.34 black |
| Stem: | KTM Line adjust. 0-60° ICR |
| Tyres: | Front: Continental Contact Urban 62-622 Reflex | Rear: Continental Contact Urban 62-622 Reflex |
