€2,499.00
Currently not available We will be happy to request the item for you.

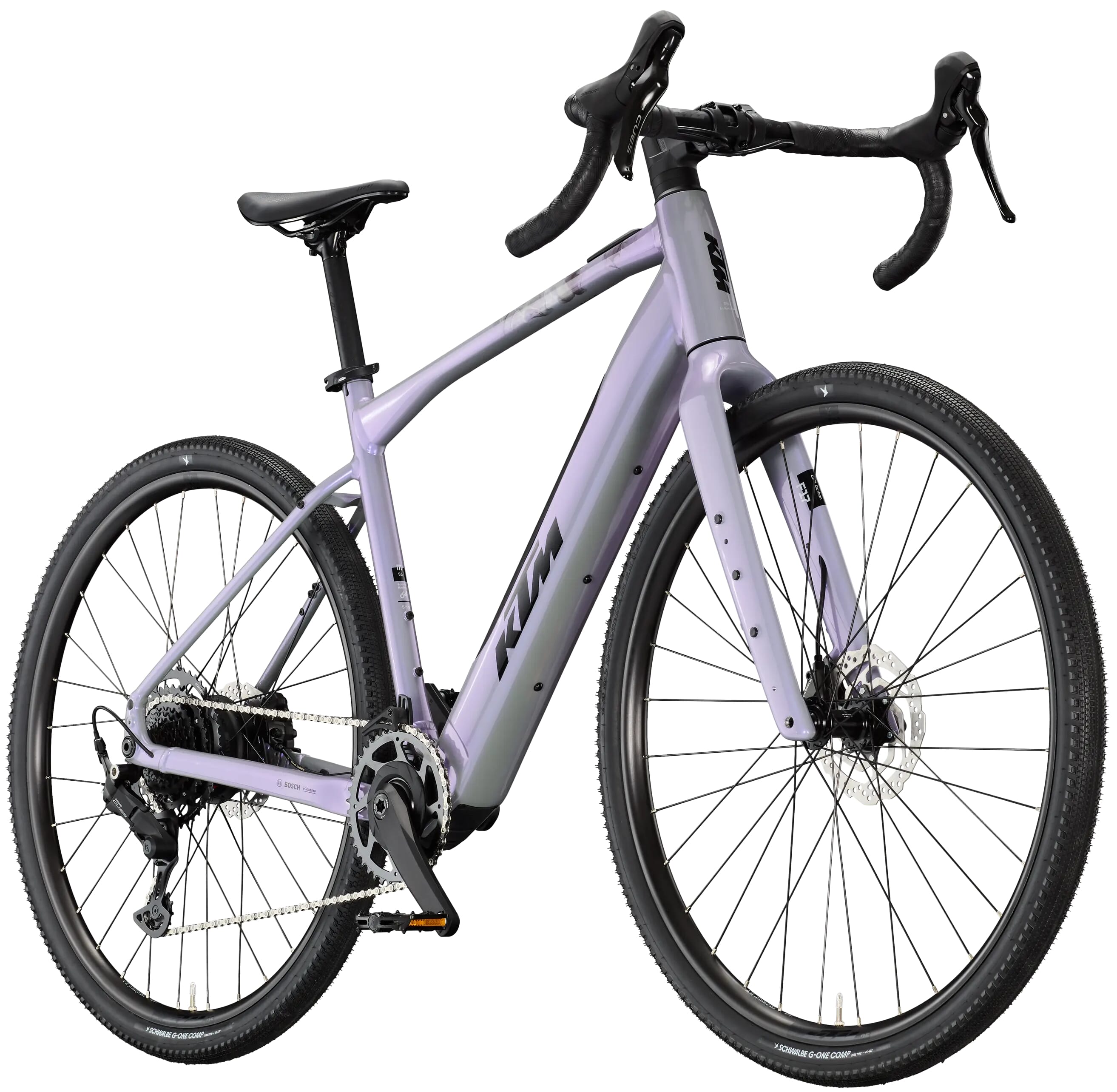

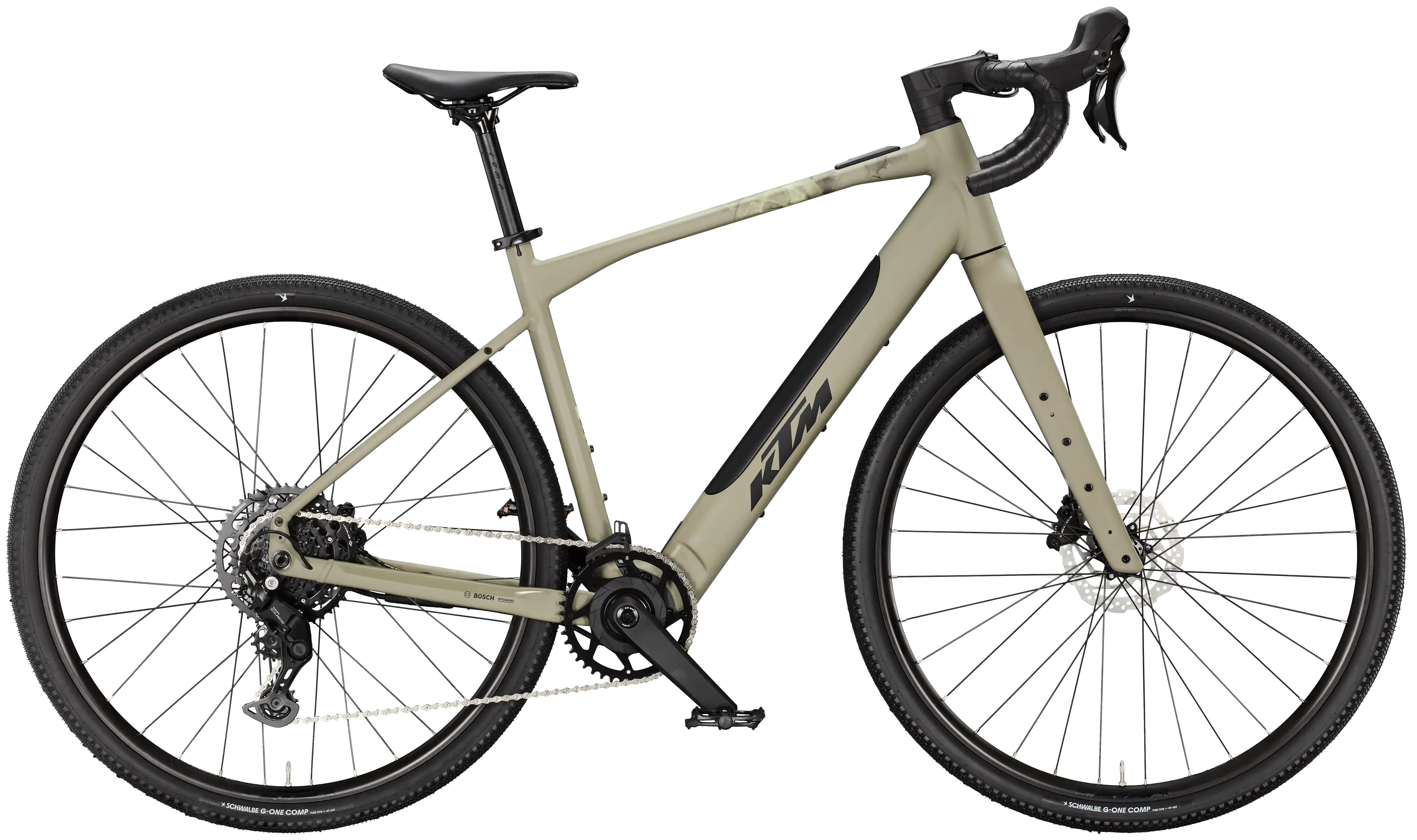

The KTM Macina Gravelator HX is a high-performance e-gravel bike featuring a modern Bosch rear motor and sporty gravel spec. The Bosch Hub Line rear motor ensures direct power transmission and provides efficient assistance on climbs and longer rides. The integrated Bosch CompactTube 400 Wh battery gives the frame a clean, uncluttered look; thanks to its compact design, it is easy to charge and can also be removed. The Gravel Carbon fork enhances comfort and riding stability, whilst offering additional mounting points for accessories. The Shimano CUES U4000 9-speed gearshift with LinkGlide technology ensures precise and durable gear changes, whilst the hydraulic Shimano disc brakes deliver reliable braking performance. With a width of 45 mm, Schwalbe G-One Comp tyres, robust KTM/Remerx wheelsets and the ergonomic gravel cockpit, the KTM Macina Gravelator HX is ideally equipped for versatile gravel riding, touring and everyday use.
Features of the KTM Macina Gravelator HX – 2027:
- Macina Gravelator-HUB AL6061 aluminium frame
- Bosch Hub Line rear motor (BDU30/R7370)
- Bosch CompactTube 400 Wh battery
- Gravel carbon fork with mounting options
- Shimano CUES U4000 9-speed gearshift
- Schwalbe G-One Comp gravel tyres (45-622)
- KTM/Remerx Ibex25 wheels with thru-axles
- KTM gravel cockpit with internal cable routing
| Battery: | Bosch CompactTUBE 360 Wh |
|---|---|
| Battery capacity: | 300 Wh - 399 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Hub Line from 2026 Smart System |
| Cassette: | Shimano LG300-9 / 11-46 LinkGLIDE |
| Chain: | KMC e500 LG e-bike |
| Derailleur/drive type: | Derailleur - chain drive |
| Drive system: | Bosch drive |
| E-Bike Types: | Gravel E-Bike |
| Fork: | Gravel Carbon Fork F17 with mount |
| Frame: | Macina Gravelator HUB AL6061 |
| Frame type: | Mens |
| Gear shift: | Shimano CUES U4000-9 LG Shadow |
| Gearshift stages: | 9-speed |
| Handlebar: | KTM COMP II Road 420mm |
| Item weight: | 17,5 kg |
| Manufacturer: | KTM |
| Model year: | 2027 |
| Motor: | Bosch Hub Line BDU306Y |
| Permissible total weight: | 128 kg (e-bike + rider + luggage) |
| Stem: | KTM TEAM Road ICR -7° |
| Tyres: | Schwalbe G-One Comp 45-622 |
