€4,799.00
Home delivery (Germany) 23/03/2026 - 25/03/2026
Description

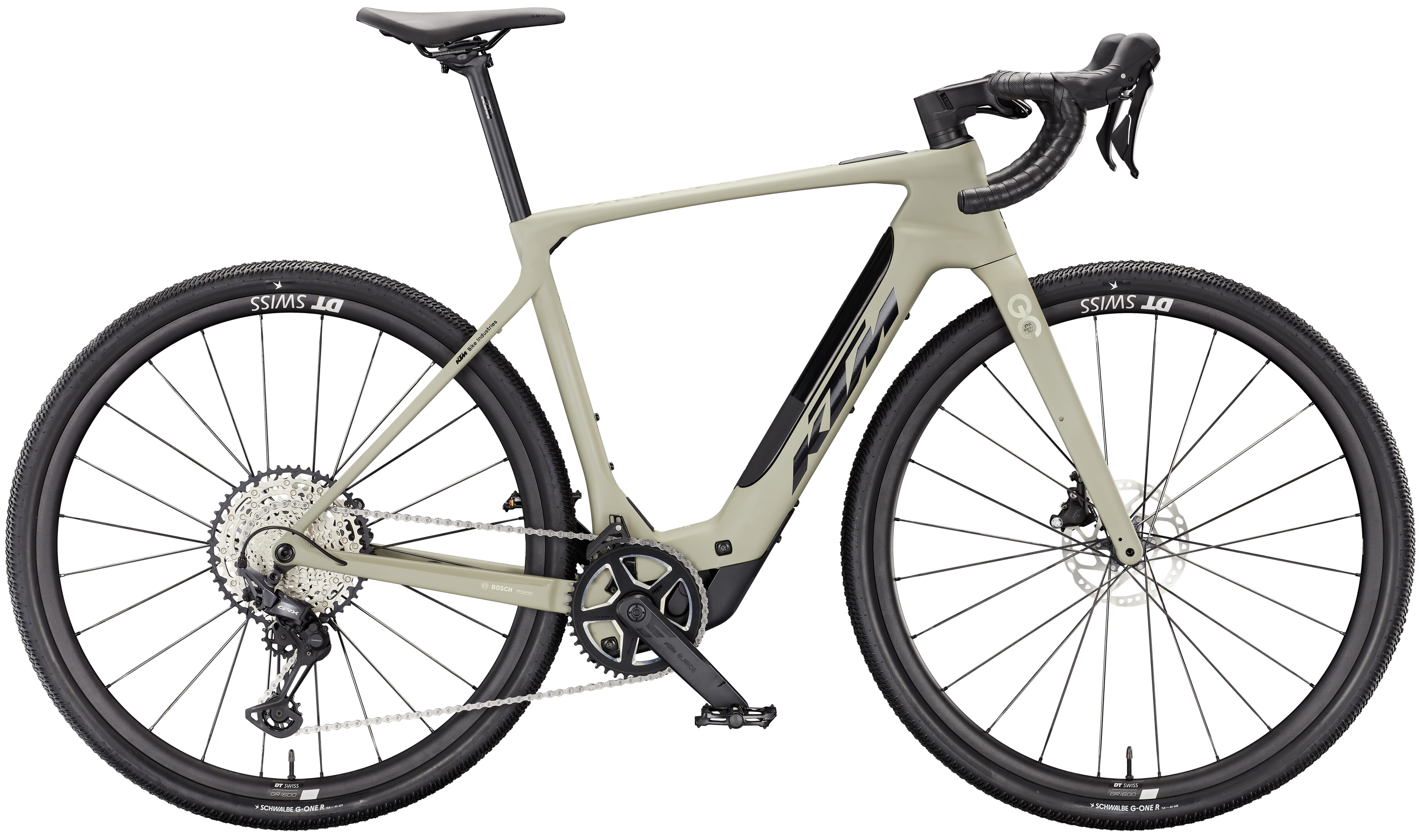

The KTM Macina Gravelator SX Elite - 2026 is a high-quality e-gravel bike with a carbon frame, designed for sporty rides and versatile use on varying terrain. The frame is made from lightweight and robust Macina Gravelator Premium Carbon with UDH mount and features an integrated Bosch CompactTube 400 Wh battery. The bike is powered by the compact yet powerful Bosch Performance SX motor, delivering smooth and sporty assistance. Control is provided via the Bosch Mini Remote, which is compact and easy to operate.
Features of the KTM Macina Gravelator SX Elite - 2026
- KTM e-gravel bike for any terrain
- Bosch CompactTube 400 Wh battery (removable)
- Bosch System Controller & Mini Remote
- Bosch Performance Line SX motor with 60 Nm
- Shimano GRX RX822 12-speed rear derailleur
- X-Strada Gravel Perf. Carbon w/mount F16 fork
The drivetrain features a Shimano GRX RX822 12-speed rear derailleur with Shadow+ technology, paired with Shimano GRX RX610/RX410 shifters. The Shimano SLX M7100 cassette (10-51 teeth) and Shimano M6100-12 chain offer a wide gear range and precise shifting. Reliable stopping power is provided by Shimano MT402/MT410 disc brakes with 160 mm Shimano RT64 CL rotors front and rear.
eBike24 recommends: The KTM Macina Gravelator SX Elite - 2026 is the perfect choice for demanding gravel enthusiasts. An electric bike that fuels your sense of adventure and turns every kilometre into pure riding pleasure.
Properties
| Battery: | Bosch CompactTUBE 400Wh |
|---|---|
| Battery capacity: | 400 Wh - 499 Wh |
| Battery option: | Dual Battery compatible, Range Extender ready |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line SX from 2024 Smart System |
| Brake: | Shimano MT402 (3-F) / MT410 2-Piston |
| Carrier: | KTM light 42 snap-it 2.0/monkeyload rack clip |
| Cassette: | Shimano SLX M7100-12 / 10-51 |
| Chain: | Shimano M6100-12 |
| Chainguard: | Horn Catena 22 44T |
| Chainring: | KTM Aluminium 42T Direct Mount |
| Charger: | Bosch COMPACT Charger 2A |
| Control unit: | Bosch System Controller & Mini Remote |
| Crank: | KTME-RACE ISIS 170mm 02 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Front: Shimano RT64 CL 160 | Rear: Shimano RT64 CL 160 |
| Drive system: | Bosch drive |
| E-Bike Types: | Gravel E-Bike |
| Fork: | X-Strada Gravel Perf. carbon w/mount F16 |
| Frame: | Macina Gravelator Prem.Carbon UDH CPT400 Bosch BDU31/R4310 |
| Grips: | KTM tape |
| Handlebar: | KTM TEAM Gravel 16° |
| Headset: | Acros AICR internal 1.1/8"-1.5" angle lim |
| Item: | KTM Macina Gravelator SX Elite - 2026 |
| Manufacturer: | KTM |
| Model year: | 2026 |
| Motor: | Bosch PERFORMANCE SX BDU3144 |
| Pedal: | KTM TEAM cross alloy ballfree |
| Permissible total weight: | 125 kg |
| Rear derailleur: | Shimano GRX RX822-12 SGS shadow+ |
| Saddle: | Selle Royal SRX |
| Saddle clamp: | KTM seatclamp R43X0 |
| Seat post: | KTM TEAM II 27.2/350 |
| Shift lever: | Shimano GRX RX610/RX410 |
| Spokes: | Front: DT Champion 2.0 black | Rear: DT Alpine II 2.34 black |
| Stem: | KTM TEAM Road -7* ICR |
| Tyres: | Front: Schwalbe G-One R Eco 45-622 | Rear: Schwalbe G-One R Eco 45-622 |
| Wheels: | Front: DT GR1600 Spline DB CL 100/12TA 622x24TC TLR | Rear: DT GR1600 Spline DB CL 142/12TA 622x24TC MS TLR |
