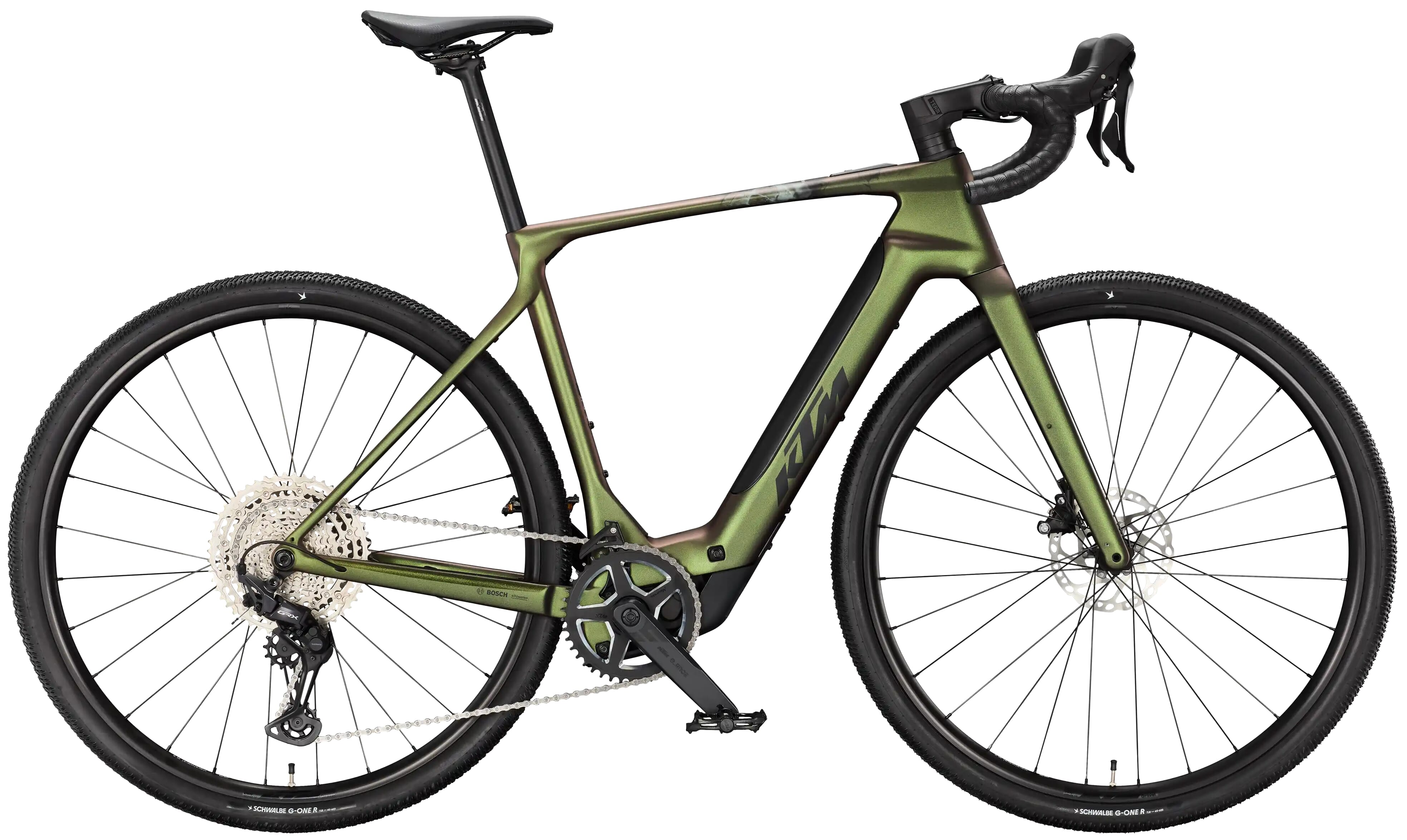

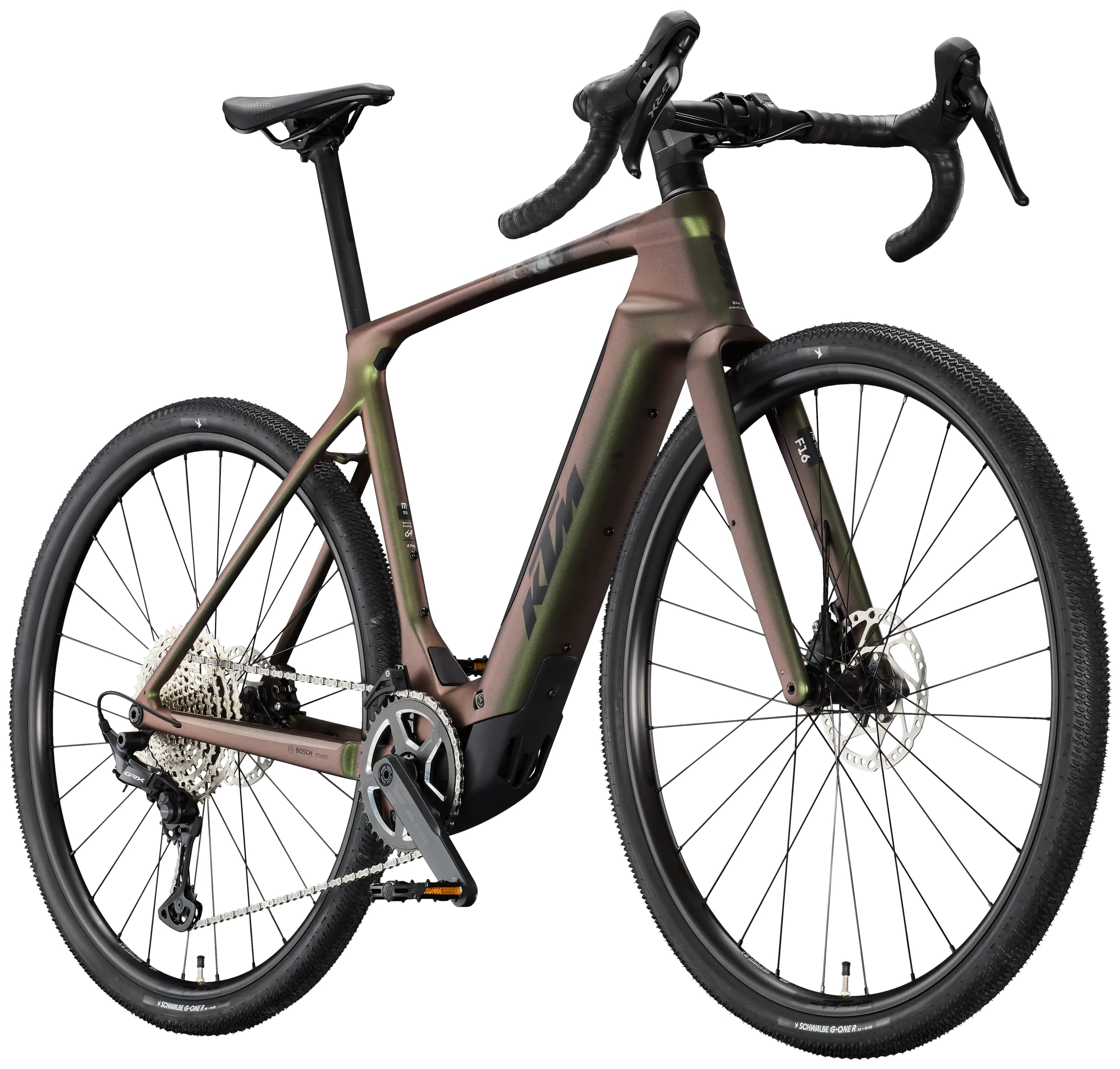

The KTM Macina Gravelator SX Elite is a sporty e-gravel bike that combines lightness, efficiency and modern drive technology. The high-quality Macina Gravelator Premium carbon frame ensures an optimal balance between stiffness and weight, providing the ideal basis for dynamic rides on tarmac and gravel. The Gravelator is powered by the Bosch Performance Line SX motor, which delivers natural and powerful assistance with up to 60 Nm of torque. The integrated Bosch CompactTube 400 Wh battery provides the perfect power for sporty rides. Controls are intuitive, via the system controller integrated into the top tube and the mini remote on the handlebars. A Shimano GRX RX822 12-speed gearshift is fitted for precise gear changes; with its wide gear range, it is ideally suited to varied terrain. High-quality components such as DT Swiss wheels, a carbon fork and high-grip gravel tyres round off the overall package and guarantee riding stability, comfort and efficiency.
Features of the KTM Macina Gravelator SX Elite – 2027:
- High-stiffness carbon frame
- Bosch Performance Line SX motor – 60 Nm
- Bosch CompactTube 400 Wh battery
- Bosch System Controller & Mini Remote
- Shimano GRX RX822 12-speed gearshift
- Shimano hydraulic disc brakes
- DT Swiss wheels
- Carbon fork
| Battery: | Bosch CompactTUBE 400Wh |
|---|---|
| Battery capacity: | 400 Wh - 499 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line SX from 2024 Smart System |
| Cassette: | Shimano DEORE M6200-12 / 10-51 |
| Chain: | Shimano DEORE M6100-12 |
| Colour: | Kiwi Matt |
| Crank: | KTM E-RACE ISIS 170mm Q2 |
| Derailleur/drive type: | Derailleur - chain drive |
| Drive system: | Bosch drive |
| E-Bike Types: | Gravel E-Bike |
| Fork: | Gravelator Perf. Carbon with F16 mount |
| Frame: | Macina Gravelator Prem.Carbon UDH - CPT400 Bosch BDU31/R4310 |
| Frame type: | Mens |
| Gear shift: | Shimano GRX RX822-12 SGS shadow+ |
| Gearshift stages: | 12-speed |
| Handlebar: | KTM TEAM II Gravel 20° |
| Item weight: | 14,9 kg |
| Manufacturer: | KTM |
| Model year: | 2027 |
| Motor: | Bosch PERFORMANCE SX BDU3144 Drive Unit |
| Pedal: | Wellgo C324DU alloy cross-pedal |
| Permissible total weight: | 115 kg (e-bike + rider + luggage) |
| Tyres: | Schwalbe G-One R Eco 45-622 |
