€5,349.00
% €5,999.00 (10.84% saved)
On order, delivery date unknown
Description

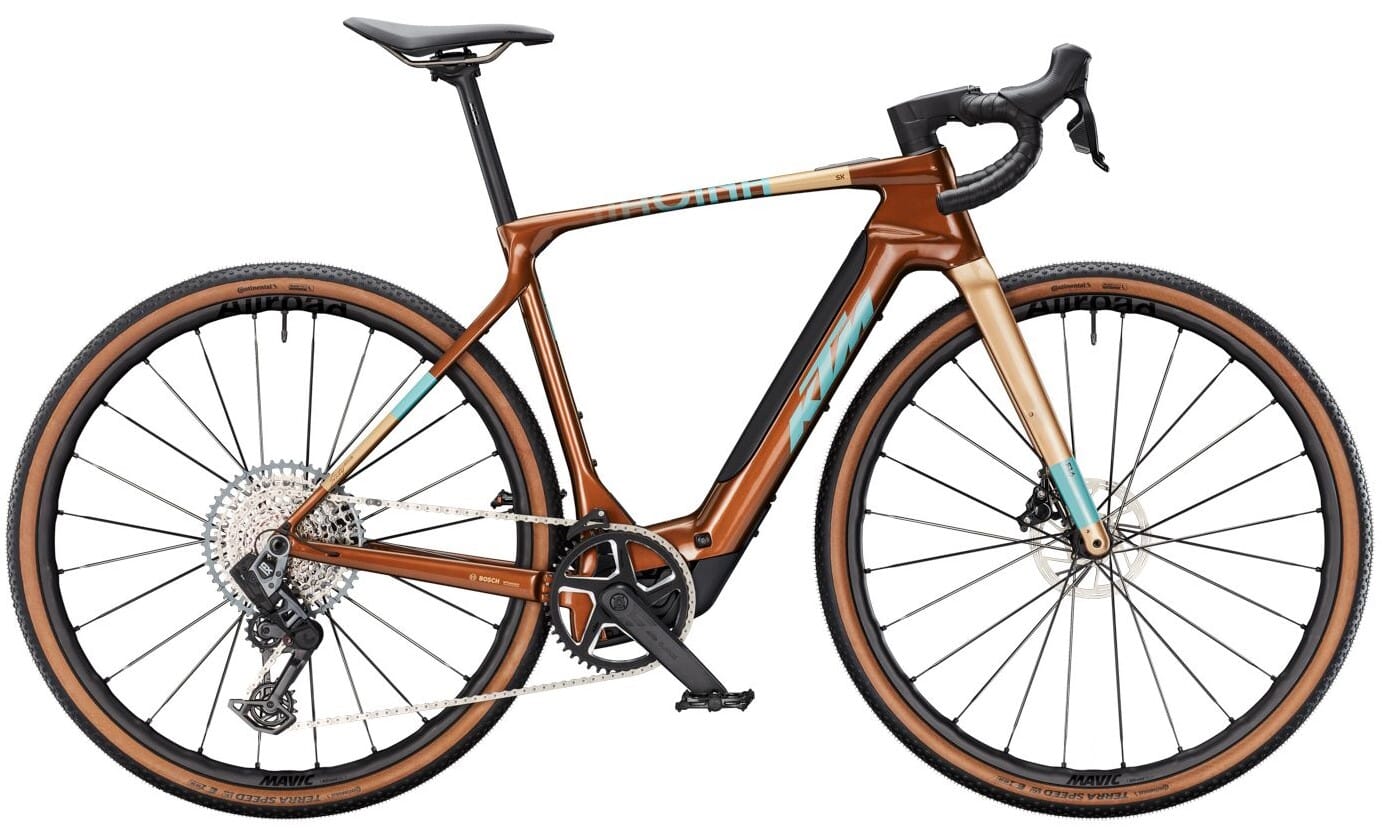

With the KTM Macina Gravelator SX Prime, you are ready for any challenge. Whether you are seeking high speeds, elevation, or narrow forest paths, the Gravelator SX Prime is always a reliable partner by your side. Thanks to its super-lightweight premium carbon frame and top-notch components, the KTM Macina Gravelator SX Prime is as light as a regular bicycle. However, with the Bosch Performance Line SX drive, it has the additional power of a true electric bike. The Macina Gravelator supports you precisely when you need it.
Features of the KTM Macina Gravelator SX Prime
- Top gravel e-bike for any terrain
- Premium carbon frame
- Bosch Performance Line SX motor – 55 Nm
- 400 Wh CompactTube battery
- Mini Remote & System Controller
- SRAM Rival XPLR eTap AXS 12
KTM Macina Gravelator SX Prime – a new era of ebikes
Thanks to the Bosch Performance Line SX drive system, it is possible to develop lighter and more powerful e-bikes. With the Macina Gravelator SX Prime, KTM takes the e-gravel bike segment to a new level: 55 Nm of torque, a 400 Wh removable Intube battery, range extender option, and minimalist controls. Combined with the immense expertise gained from years of experience in road cycling and gravel sports, the KTM Macina Gravelator SX Prime is an e-bike that leaves almost nothing to be desired.
eBike24 recommends: The KTM Macina Gravelator SX Prime is the epitome of a sporty all-rounder. It feels just as comfortable on the road as it does off the beaten path. For those who have always wished for a little extra power while gravel riding, the Gravelator is the perfect choice.
Properties
| Battery: | Bosch CompactTube 400Wh SMART SYSTEM |
|---|---|
| Battery capacity: | 400 Wh - 499 Wh, Dual Battery compatible |
| Battery option: | Dual Battery compatible |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line SX from 2024 Smart System |
| Brake: | SRAM Rival hydraulic |
| Cassette: | SRAM Rival XPLR XG-1251 / 10-44T |
| Chain: | SRAM Rival flat 12s |
| Chainring: | KTM aluminium 46T Direct Mount |
| Charger: | Bosch STANDARD Charger 4A SMART SYSTEM |
| Crank: | KTM E-RACE ISIS 170mm Q2 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | SRAM Paceline CL 160 / 160 |
| Display: | Bosch Mini Remote Dropbar SMART SYSTEM |
| Drive system: | Bosch drive |
| E-Bike Types: | Gravel E-Bike |
| Fork: | X-Strada Gravel Perf. Carbon w/mountings F16 |
| Frame: | Macina Gravelator Premium Carbon UDH CPT 400Wh Bosch BDU31 / R-4310 |
| Frame type: | Mens |
| Grips: | KTM tape |
| Handlebar: | KTM Team II Gravel 20° |
| Manufacturer: | KTM |
| Model year: | 2025 |
| Motor: | Bosch PERFORMANCE SX SMART SYSTEM - 25km/h / 55Nm |
| Pedal: | Wellgo C324DU |
| Permissible total weight: | 109 kg |
| Rear derailleur: | SRAM Rival XPLR eTap AXS 12speed |
| Saddle: | FIZIK Terra Argo X3 Kium |
| Seat post: | KTM Team II 27.2/350 |
| Shift lever: | SRAM Rival eTap AXS HRD |
| Tyres: | Continental Terra Speed TL 40-622 ProTection |
| Weight: | 13.9 kg |
