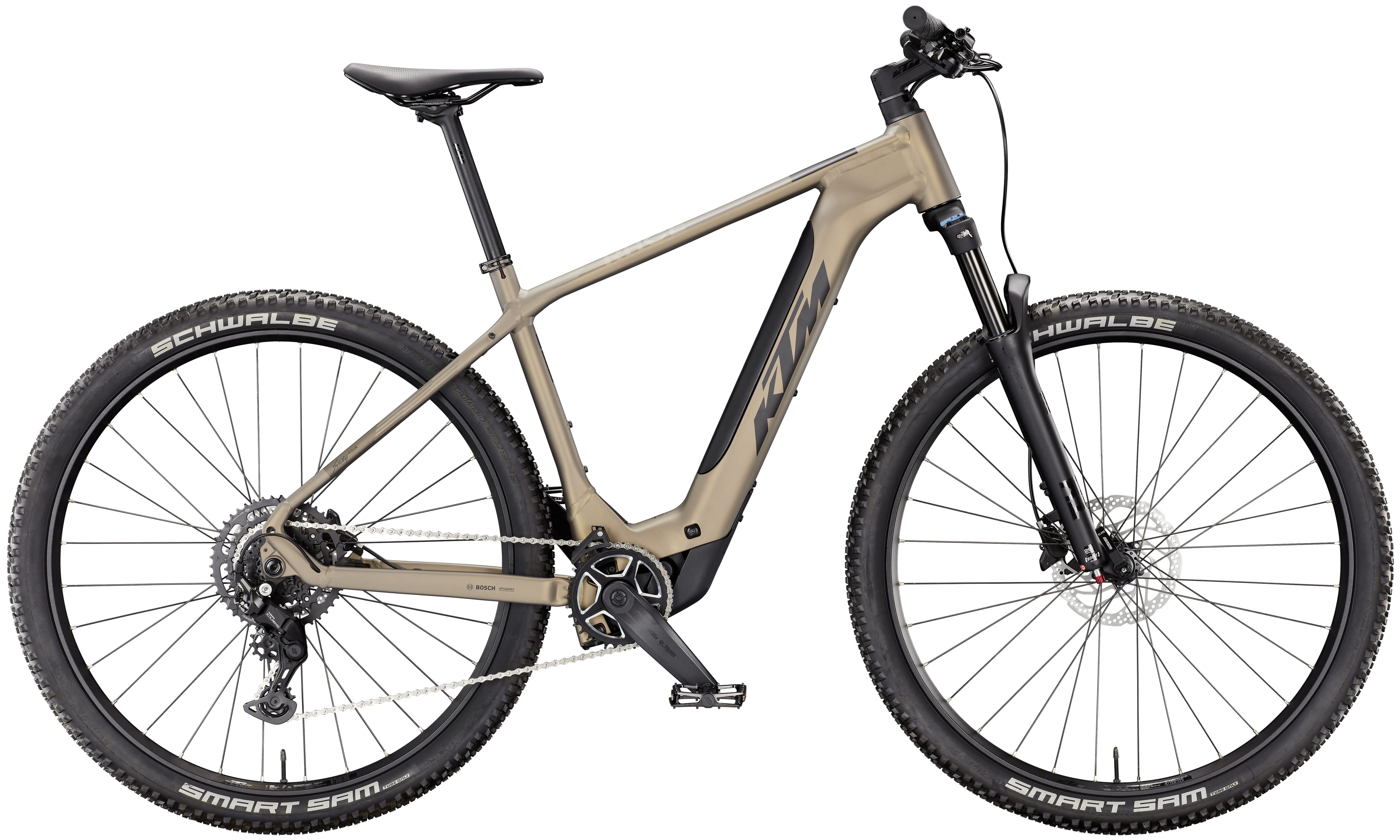

KTM Macina Race SX 20 - 2026

3,299.00€

Item number: 11456-001
Manufacturer Part Number: 1260072103

The KTM Macina Race SX 20 - 2026 is an e-mountain bike that combines advanced technology with a well-thought-out specification to offer the perfect balance of performance and comfort. Featuring the powerful Bosch Performance SX motor and the compact Bosch CompactTube 400 Wh battery, it provides reliable support even on long rides and steep climbs. The clear and intuitive Bosch Purion 200 display allows you to monitor ride data easily and adjust support levels with ease.

The robust Macina MTB 29" aluminium frame made from 6061 alloy ensures both stability and agility, while the Suntour X1 32 AIR fork with 100 mm of travel smooths out uneven surfaces and ensures a comfortable ride.

Features of the KTM Macina Race SX 20 - 2026

Lightweight e-mountain bike, ideal for beginners
Bosch CompactTube 400 Wh battery (removable)
Bosch Purion 200 display with remote control
Bosch Performance SX motor with 60 Nm of torque
Suntour X1 32 AIR suspension fork
Schwalbe Smart Sam Performance tyres

Safety and control with the KTM Macina Race SX 20

The Schwalbe Smart Sam Performance tyres offer excellent grip and rolling characteristics across a wide range of surfaces. Combined with the durable Black Jack Ready30 wheels and Shimano TC500B CL hubs, you benefit from optimal power transmission and long-lasting reliability. The precise Shimano MT201/MT200 disc brakes with RT30 CL rotors ensure consistent braking performance, even in adverse conditions.

eBike24 recommends: The KTM Macina Race SX 20 - 2026 impresses with strong performance, high-quality craftsmanship, and a versatile specification - perfect for both sporty and all-round use.

E-Bike Types:	E-Mountainbike (E-MTB)
Model year:	2026
Battery capacity:	400 Wh - 499 Wh
Drive system:	Bosch drive
Manufacturer:	KTM
Derailleur/drive type:	Derailleur - chain drive
Battery option:	Dual Battery compatible, Range Extender ready
Bosch System:	Bosch Performance Line SX from 2024 Smart System
Battery position:	Intube battery / frame integrated
Frame:	Macina MTB 29" Alloy 6061 UDH CPT400 Bosch BDU31/M4810
Fork:	Suntour X1 32 AIR 29" LOR 100mm
Battery:	Bosch CompactTUBE 400Wh
Tyres:	Front: Schwalbe Smart Sam Perf. 57-622 Reflex \| Rear: Schwalbe Smart Sam Perf. 57-622 Reflex
Saddle:	KTM Line Sport
Seat post:	KTM TEAM II 27.2/400
Item:	KTM Macina Race SX 20 - 2026
Stem:	KTM +7° ICR
Display:	Bosch PURION 200 Display & Remote
Chainring:	KTM aluminium 34T Direct Mount
Saddle clamp:	KTM TEAM Light CL-FJ21 - 31.8mm
Grips:	KTM COMP Lock
Motor:	Bosch PERFORMANCE SX BDU3144
Headset:	Acros AICR internal 1.1/8"-1.5" angle lim
Pedal:	MTB pedal flat VPE-527 alloy
Front hub:	Shimano TC500B CL 32H 110-15TA
Rear hub:	Shimano TC500B CL 32H 148-12TA
Handlebar:	KTM TEAM II rizer 15 720mm
Permissible total weight:	139 kg
Crank:	KTM E-TEAM2 ISIS 170mm 08
Cassette:	Shimano LG400-9/ 11-46
Rear derailleur:	Shimano CUES U4000-9 LG shadow
Chain:	KMC e500 LG e-bike
Shift lever:	Shimano CUES U4000-9 display
Chainguard:	Horn Catena 22 44T
Charger:	Bosch COMPACT Charger 2A
Spokes:	Front: DT Champion 2.0 black \| Rear: DT Alpine II 2.34 black
Front wheel:	Black Jack Ready30 32H 622x30TC
Rear wheel:	Black Jack Ready30 32H 622x30TC
Disc brakes:	Front: Shimano RT30 CL 180 \| Rear: Shimano RT30 CL 160
Brake:	Shimano MT201 / MT200 2-Piston
