€3,299.00
Home delivery (Germany) 17/03/2026 - 19/03/2026
Description

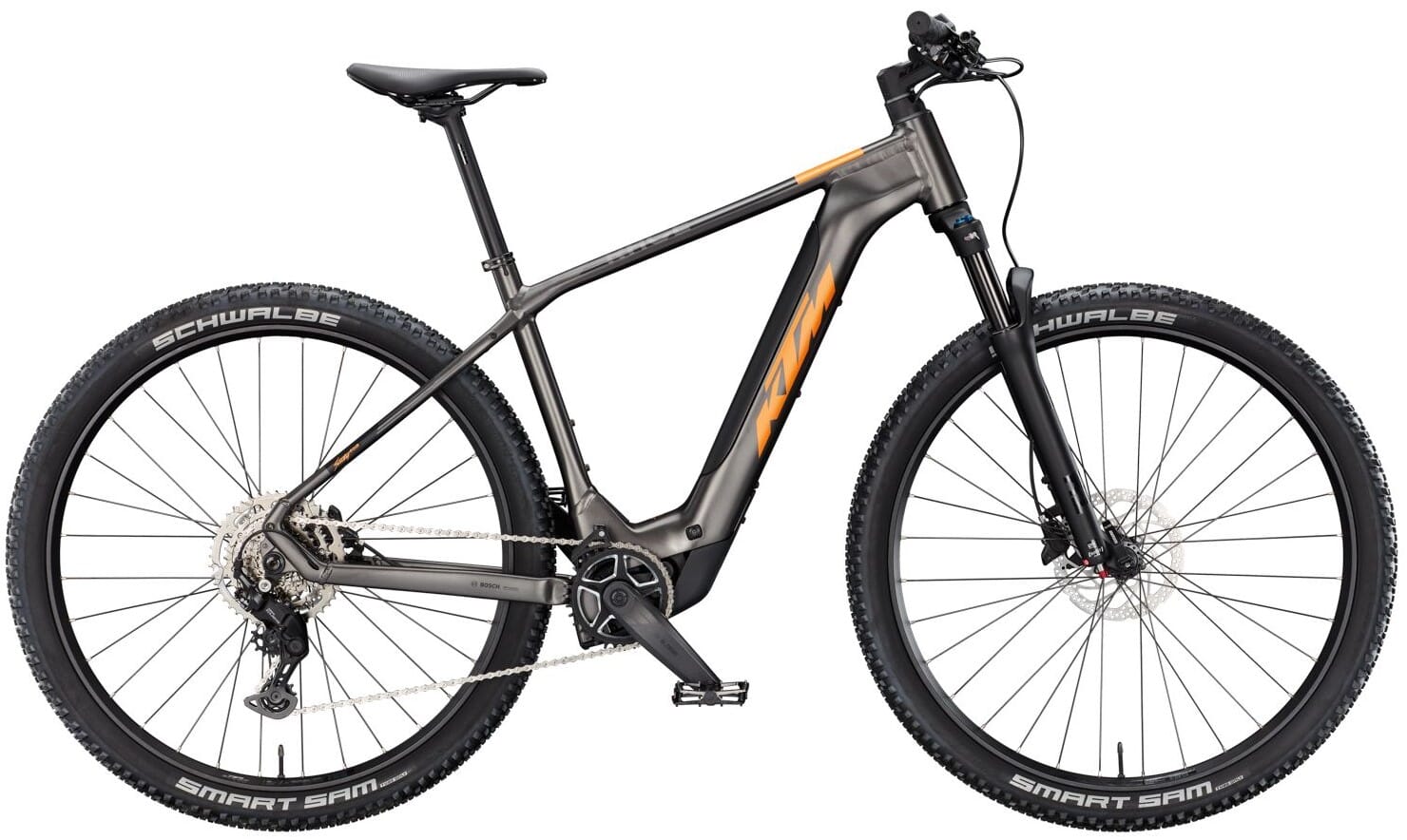

Latest drive technology and an affordable price must not be contradictory – the KTM Macina Race SX 20 proves this. Equipped with the compact Bosch Performance Line SX motor, you will experience a completely new riding experience. The lightweight mid-drive motor reduces the total weight to around the 20-kilogram mark, making the Macina Race SX 20 particularly controllable. The 100 mm suspension travel and the streamlined cockpit with the 2-in-1 Purion 200 display also underline the sporty ambitions of the KTM Macina Race SX 20.
Features of the KTM Macina Race SX 20 - 2025
• Lightweight e-mountain bike
• Compact Bosch Performance Line SX motor – 55 Nm
• 400 Wh CompactTube battery
• Range Extender – ready
• Purion 200 Display & Control unit
• Suntour X1 air suspension fork 100 mm
eBike24 recommends: The KTM Macina Race SX 20 is the perfect introduction to the world of electric mountain bikes. It is ideally suited for first trips on easy trails and also excels in daily road use.
Properties
| Battery: | Bosch CompactTube 400Wh SMART SYSTEM |
|---|---|
| Battery capacity: | 400 Wh - 499 Wh, Dual Battery compatible |
| Battery option: | Dual Battery compatible |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line SX from 2024 Smart System |
| Brake: | Shimano MT201 / MT200 2-Piston |
| Cassette: | Shimano LG400-9 / 11-46T |
| Chain: | KMC e500 LG e-bike |
| Chainring: | KTM aluminium 34T Direct Mount |
| Charger: | Bosch Compact Charger 2A SMART SYSTEM |
| Crank: | KTM E-TEAM2 ISIS 170mm Q8 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Shimano RT30 CL 180 / 160 |
| Display: | Bosch PURION 200 Display & Remote SMART SYSTEM |
| Drive system: | Bosch drive |
| E-Bike Types: | E-Mountainbike (E-MTB), Hardtail E-MTB |
| Frame: | Macina Race 29" Alloy 6061 CPT400Wh Bosch BDU31 / M-4810 |
| Frame type: | Mens |
| Front wheel: | KTM Line - Shimano TC500B CL 32H 110-15TA Ryde Rival30 32H 622x30C DT Champion 2.0 black |
| Grips: | KTM Comp Lock |
| Handlebar: | KTM Comp II rizer15 700mm |
| Manufacturer: | KTM |
| Model year: | 2024 |
| Motor: | Bosch PERFORMANCE SX SMART SYSTEM - 25km/h / 55Nm |
| Pedal: | MTB pedal flat VPE-527 alloy |
| Permissible total weight: | 131 kg |
| Rear derailleur: | Shimano CUES U4000-9 shadow |
| Rear wheel: | KTM Line - Shimano CUES TC500B CL 32H 148-12TA Ryde Rival30 32H 622x30C DT Alpine II 2.34 black |
| Saddle: | KTM Line Sport |
| Seat post: | KTM Comp II 27.2/400 |
| Shift lever: | Shimano CUES U4000-9 display |
| Suspension fork: | Suntour X1 32 Air 29" LOR 100mm 15x110 taper |
| Tyres: | Schwalbe Smart Sam Perf 57-622 |
| Weight: | 20.2 kg |
