€3,899.00
Home delivery (Germany) 22/04/2026 - 24/04/2026
Description

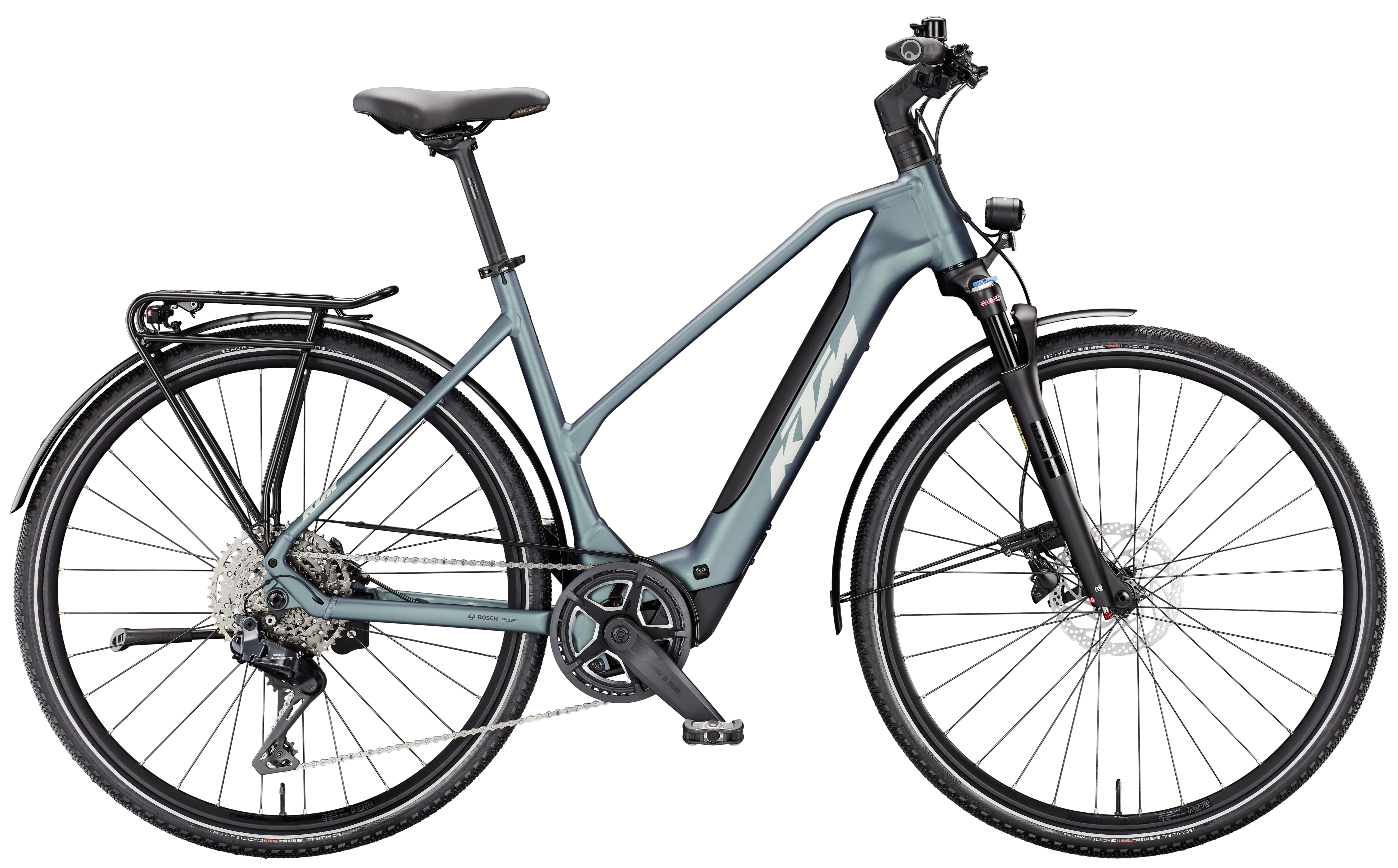

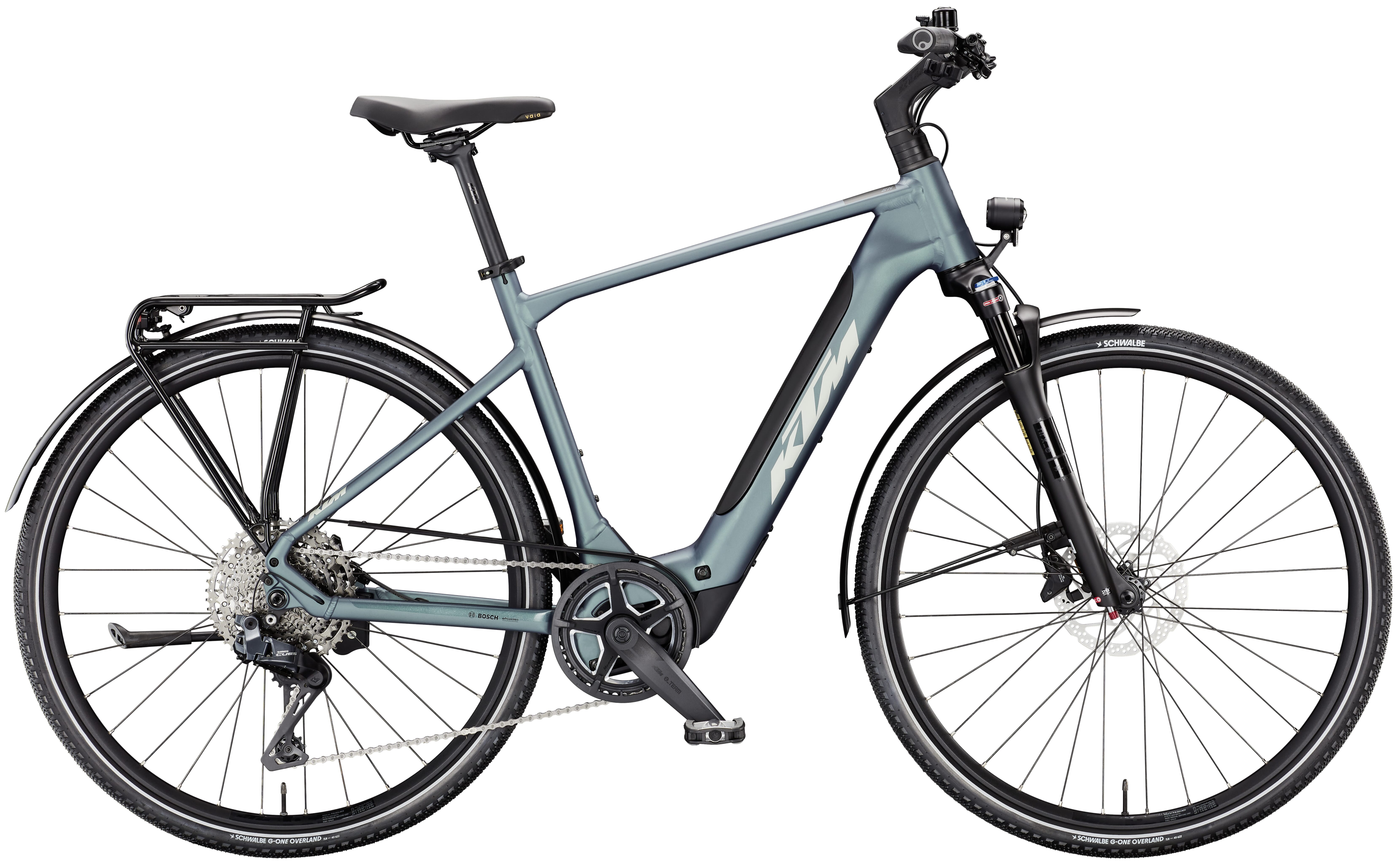

The KTM Macina Sport SX 10 - 2026 is a versatile trekking electric bike designed for everyday rides, extended tours and demanding routes alike. This model combines high-quality components, a well thought-out design and state-of-the-art technology to create an impressive overall package. The Bosch Perfomance SX motor and the Bosch CompactTube 400 Wh battery offer powerful support and an impressive range. The Macina Trekking Onroad Alloy 6061 frame offers an ideal balance of robustness and lightness. Together with the Suntour NRX32-E Air fork with 63 mm suspension travel, it ensures comfortable and stable handling - even on uneven terrain.
Features of the KTM Macina Sport SX 10 - 2026
- High-quality trekking e-bike with Bosch Smart System
- Bosch Perfomance SX motor
- Bosch CompactTube 400 Wh battery (removable)
- Bosch Purion 200 display & remote
- Suntour NRX32-E Air fork
- Shimano CUES Di2 gears
- Shimano MT402 (3-F) / MT410 2-piston brakes
Shimano CUES Di2 drivetrain
The electronic Shimano CUES Di2 drivetrain takes the riding experience to a new level. With 11 gears, precise shifting and low-maintenance technology, it enables effortless adaptation to any terrain. This is complemented by the Shimano LG400 cassette, which offers a wide gear ratio, and the durable KMC e500 LG chain.
eBike24 recommends: With the KTM Macina Sport SX 10 - 2026, you are opting for an electric bike that combines innovation, comfort and performance - perfect for your next bike tour or everyday use.
Properties
| Battery: | Bosch CompactTUBE 400Wh |
|---|---|
| Battery capacity: | 400 Wh - 499 Wh |
| Battery option: | Range Extender ready |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line SX from 2024 Smart System |
| Brake: | Shimano MT402 (3-F) / MT410 2-Piston |
| Carrier: | KTM light 42 snap-it 2.0/monkeyload rack clip |
| Cassette: | Shimano LG400-11 / 11-50 |
| Chain: | KMC e500 LG e-bike |
| Chainguard: | CHAINGUARD Horn Catena 22 44T |
| Chainring: | KTM aluminium 42T Direct Mount |
| Charger: | Bosch COMPACT Charger 2A |
| Crank: | KTM E-TEAM2 ISIS 170mm 08 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Front: Shimano RT30 CL 180 | Rear: Shimano RT30 CL 160 |
| Display: | Bosch PURION 200 Display & Remote |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Fork: | Suntour NRX32-E Air LOR 63mm |
| Frame: | Macina Trekking Onroad Alloy 6061 CPT400 Bosch BDU31/T4110 |
| Front hub: | Shimano TC500 CL 32H 100-15TA |
| Front light: | Litemove SEC-150 150Lux down |
| Front wheel: | Black Jack Ready25 32H 622x25TC |
| Grips: | ERGON GS1 |
| Handlebar: | KTM TEAM II low rizer 640mm |
| Headset: | Acros AICR internal 1.1/8"-1.5" angle lim |
| Item: | KTM Macina Sport SX 10 - 2026 |
| Manufacturer: | KTM |
| Model year: | 2026 |
| Motor: | Bosch PERFORMANCE SX BDU3144 |
| Mudguard: | SKS EVO AL 55mm 28" rear |
| Pedal: | Trekking pedal VP-616 anti-slip |
| Permissible total weight: | 139 kg |
| Rear derailleur: | Shimano CUES Di2 U8050-11 SGS shadow |
| Rear hub: | Shimano TC500 CL 32H 142-12TA |
| Rear light: | AXA Juno |
| Rear wheel: | Black Jack Ready25 32H 622x25TC |
| Saddle: | Selle Royal Vaia Gel |
| Saddle clamp: | KTM Line JD-SC99 - 31.8mm |
| Seat post: | KTM TEAM II 27.2/350 |
| Shift lever: | Shimano CUES Di2 EN605 Switch |
| Side stand: | Hebie 28" adjustable |
| Spokes: | Front: DT Champion 2.0 black | Rear: DT Alpine II 2.34 black |
| Stem: | KTM Line +20° ICR |
| Tyres: | Schwalbe G-One Overland Eco 45-622 |
