€3,299.00
% €3,899.00 (15.39% saved)
On order, delivery date unknown
Description

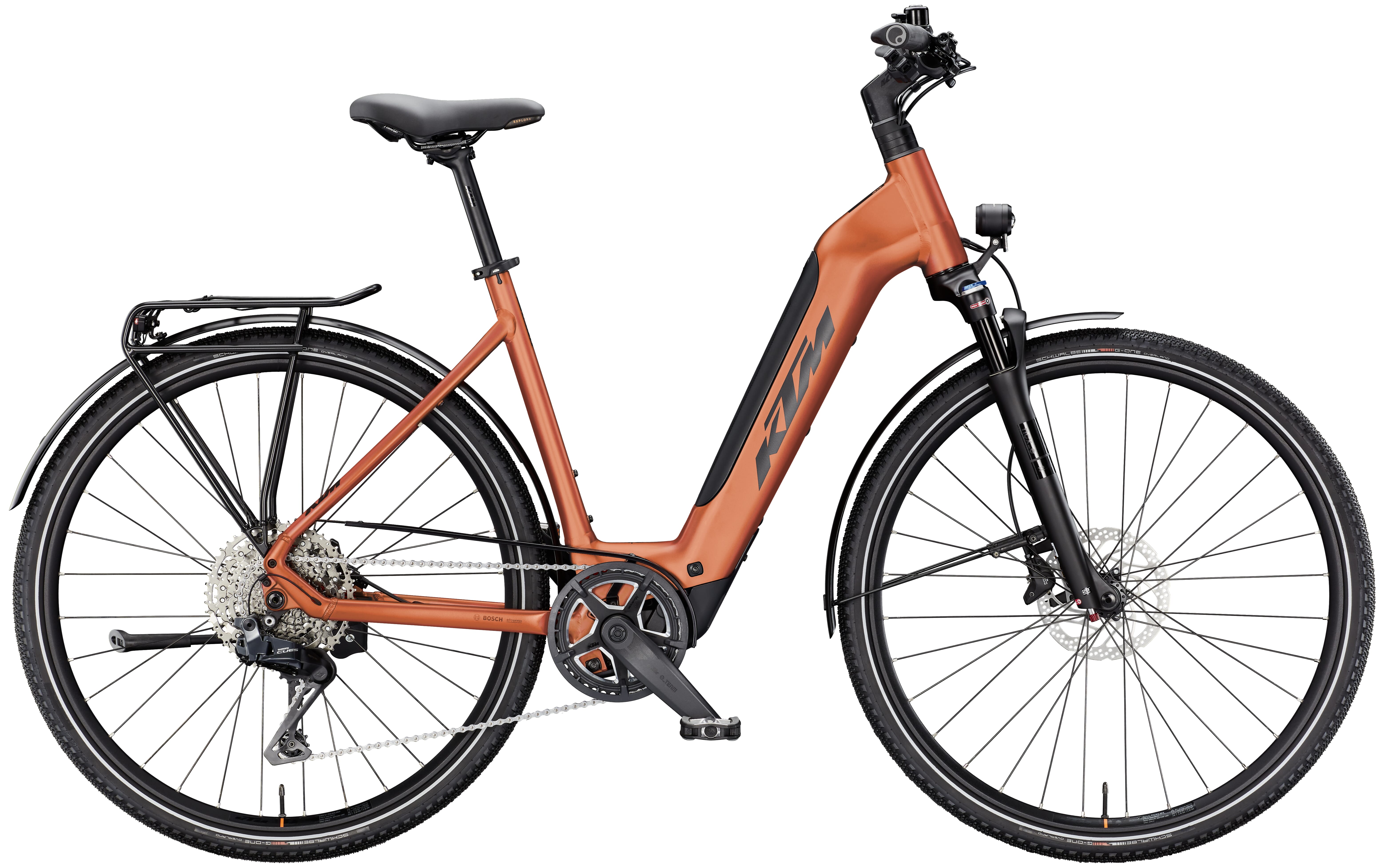

With the KTM Macina Sport SX 10, you will discover a sporty companion for extensive electric bike tours and everyday use. The Bosch Performance Line SX motor grants the Macina Sport SX 10 an inconspicuous appearance while delivering an energetic riding experience. Weighing approximately 20 kilograms in total, the KTM Macina Sport SX 10 offers particularly pleasant handling. You can always rely on the high-quality Shimano XT Linkglide e-bike transmission and the dependable Suntour NCX-E air suspension fork. Thus, the KTM Macina Sport SX 10 will undoubtedly become a faithful companion for all your journeys.
Features of the KTM Macina Sport SX 10 - 2025
• Outstanding trekking ebike for urban and rural settings
• Sturdy aluminium frame with full touring equipment
• Bosch Performance Line SX motor – 55 Nm
• Purion 200 e-bike display & control unit
• 400 Wh CompactTube Intube battery
• Shimano Deore XT Linkglide 11-speed rear derailleur
eBike24 recommends: The KTM Macina Sport SX 10 is designed for explorers who want to rely unwaveringly on their e-bike during their journeys.
Properties
| Battery: | Bosch CompactTube 400Wh SMART SYSTEM |
|---|---|
| Battery capacity: | 400 Wh - 499 Wh, Dual Battery compatible |
| Battery option: | Dual Battery compatible |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line SX from 2024 Smart System |
| Brake: | Shimano MT402 (3-F) / MT410 2-Piston |
| Carrier: | KTM Alumee light (snap-it 2.0) |
| Cassette: | Shimano LG400-11 / 11-50T |
| Chain: | KMC e11 Sport EPT e-bike |
| Chainring: | KTM aluminium 42T Direct Mount |
| Charger: | Bosch Compact Charger 2A SMART SYSTEM |
| Colour: | BURNT ORANGE MATT (BLACK) |
| Crank: | KTM E-TEAM2 ISIS 170mm Q8 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Shimano RT64 CL 180 / 160 |
| Display: | Bosch PURION 200 Display & Remote SMART SYSTEM |
| Drive system: | Bosch drive |
| E-Bike Types: | Trekking E-Bike |
| Frame: | Macina Trekking Offroad Alloy 6061 CPT400Wh Bosch BDU31 / T-4110 |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front light: | Litemove SE-150 LED 150Lux |
| Grips: | Ergon GP1 SD |
| Handlebar: | KTM Team II low rizer 640mm |
| Manufacturer: | KTM |
| Model year: | 2025 |
| Motor: | Bosch PERFORMANCE SX SMART SYSTEM - 25km/h / 55Nm |
| Mudguard: | SKS EVO AL 55mm black matt |
| Permissible total weight: | 131 kg |
| Rear derailleur: | Shimano Deore XT M8130-11 LG shadow+ |
| Rear light: | AXA Juno LED |
| Saddle: | Selle Royal Explora Gel |
| Seat post: | KTM Team II 27.2/350 |
| Shift lever: | Shimano Deore XT M8130-11 LG |
| Stand: | Hebie 28" adjustable |
| Suspension fork: | Suntour NCX-E Air LO 63mm 15QLC |
| Tyres: | Schwalbe G-One Overland SuperGround TLE 45-622 |
| Weight: | 20.3 kg |
| Wheels: | KTM Line - Shimano Deore M6010 CL |
