€4,699.00
Currently not available We will be happy to request the item for you.

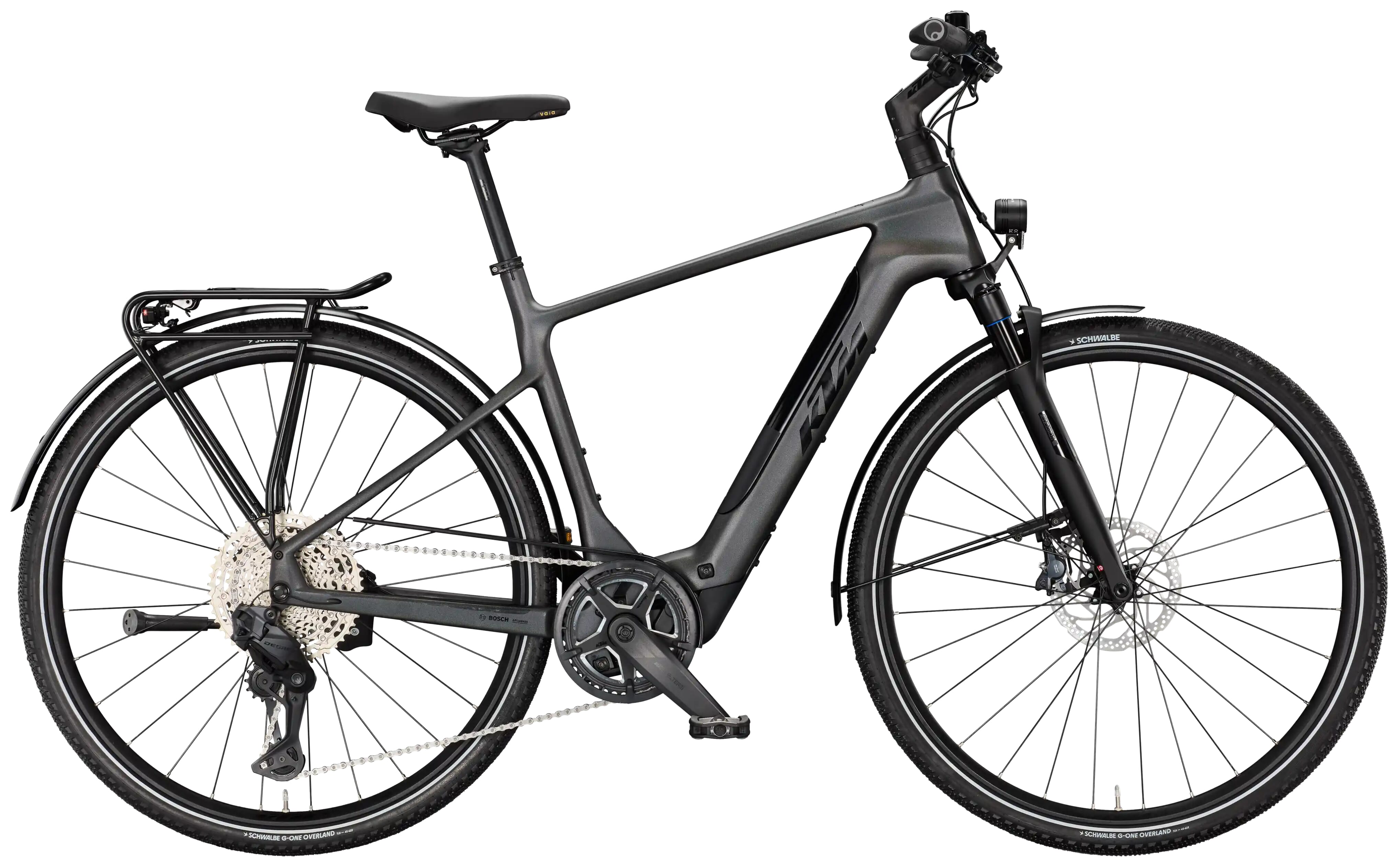

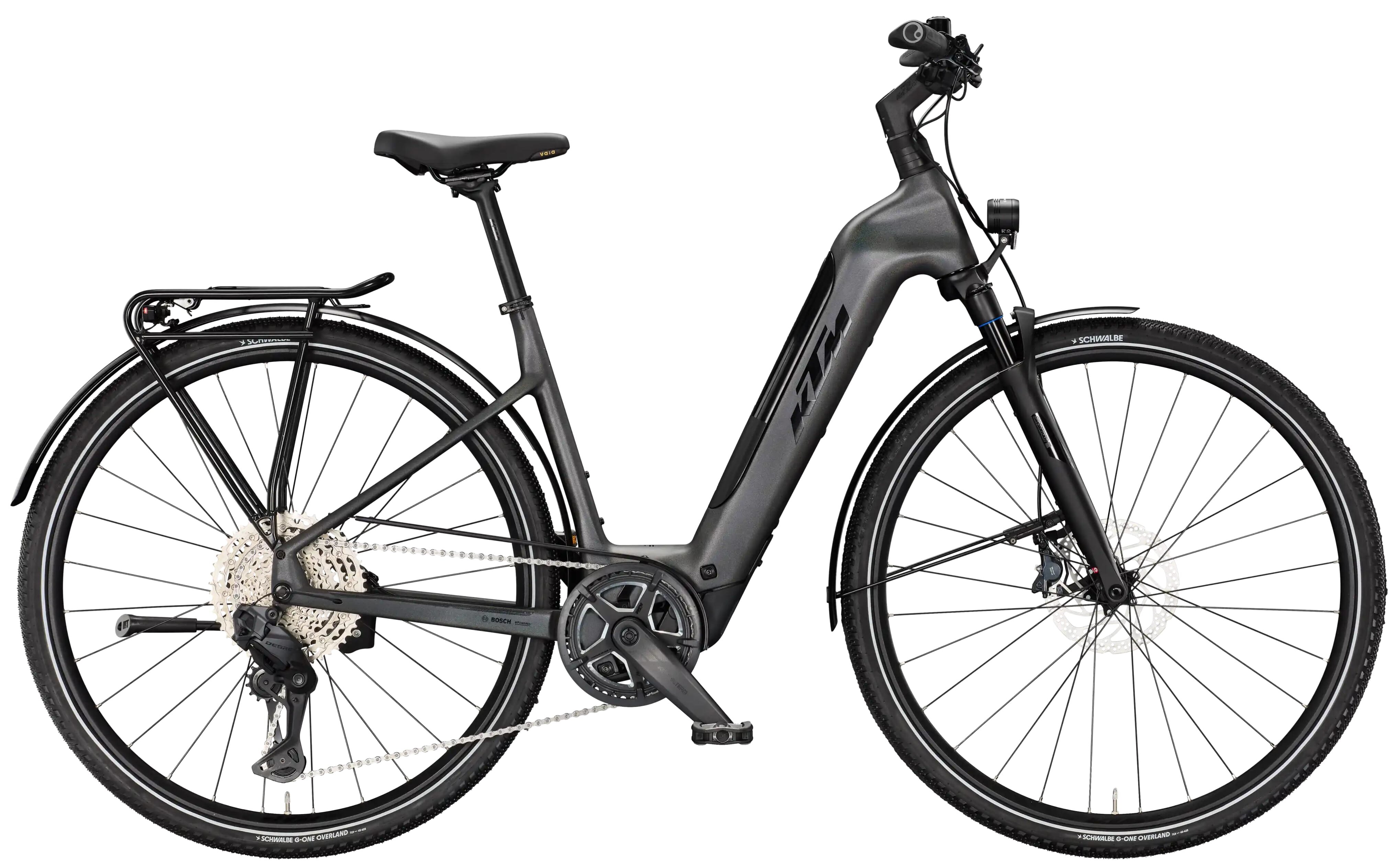

The KTM Macina Sport SX Master is an ultra-lightweight, premium trekking e-bike that combines state-of-the-art drive technology with high-quality components and an innovative carbon frame. Designed for discerning Fahrers, the SX Master impresses with its optimal balance of efficiency, comfort and sporty performance – both in everyday urban use and on long tours. At the heart of the system is the compact and powerful Bosch Performance SX motor, which delivers dynamic yet natural assistance. Combined with the integrated Bosch CompactTube 400 Wh battery, this creates a particularly lightweight overall system designed for agility and range. The high-quality Macina Trekking Premium Carbon frame not only ensures a low overall weight but also high stiffness and precise handling. This is complemented by the air-sprung Suntour NRX32IL-E suspension fork with 70 mm of travel, which effectively absorbs bumps and significantly enhances riding comfort. Thanks to its full range of road-going equipment, including a powerful lighting system, a sturdy luggage rack and mudguards, the KTM Macina Sport SX Master is the ideal choice for both commuters and touring cyclists.
Features of the KTM Macina Sport SX Master:
- ultra-light Macina Trekking Premium Carbon frame
- Bosch Performance SX motor – 60 Nm
- Bosch CompactTube 400 Wh battery (removable)
- Bosch Purion 400 display
- Shimano Deore Di2 12-speed electronic gearshift system
- Suntour NRX32IL-E Air suspension fork with 70 mm travel
- Shimano CUES hydraulic disc brakes
- Schwalbe G-One Overland tyre for versatile use
- High-quality full specification including lights, luggage rack and mudguards
Highlights of the KTM Macina SX Master Di2
A particular highlight is the electronic Shimano Deore Di2 12-speed gearshift, which enables precise, fast and load-independent gear changes. Combined with the wide-range 10–51 cassette, the system offers an enormous range for a wide variety of route profiles – from steep climbs to fast sections. KTM also prioritises the highest quality in its other components: the hydraulic Shimano CUES disc brakes ensure reliable stopping power, whilst the Schwalbe G-One Overland tyres offer optimum grip on tarmac and gravel. Ergonomic contact points such as the Ergon GS1 handlebar grips and the Selle Royal Vaia Gel saddle further enhance long-distance comfort.
| Battery: | Bosch CompactTUBE 400Wh |
|---|---|
| Battery capacity: | 400 Wh - 499 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line SX from 2024 Smart System |
| Cassette: | Shimano DEORE M6200-12 / 10–51 teeth |
| Derailleur/drive type: | electr. derailleur - chain drive |
| Display: | Bosch PURION 400 Display |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Frame: | Macina Trekking PREMIUM CARBON |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front light: | Litemove SC-160 160Lux |
| Gear shift: | Shimano DEORE Di2 M6260-12 ShadowES |
| Gearshift stages: | 12-speed |
| Handlebar: | KTM TEAM II low-riser 640mm |
| Item weight: | 18,5 kg |
| Manufacturer: | KTM |
| Model year: | 2027 |
| Motor: | Bosch PERFORMANCE SX BDU3144 |
| Mudguard: | SKS EVO AL 55mm 28" rear |
| Pedal: | VP-616 alloy trekking pedal with rubber tread |
| Permissible total weight: | 129 kg (e-bike + rider + luggage) |
| Rear light: | AXA Juno Signal |
| Saddle: | Selle Royal Vaia Gel |
| Side stand: | Hebie 28" adjustable |
| Suspension fork: | Suntour NRX32IL-E Air 2CR 70mm 15x100 |
| Tyres: | Schwalbe G-One Overland Eco 45-622 |
