€3,999.00
On order, delivery date unknown

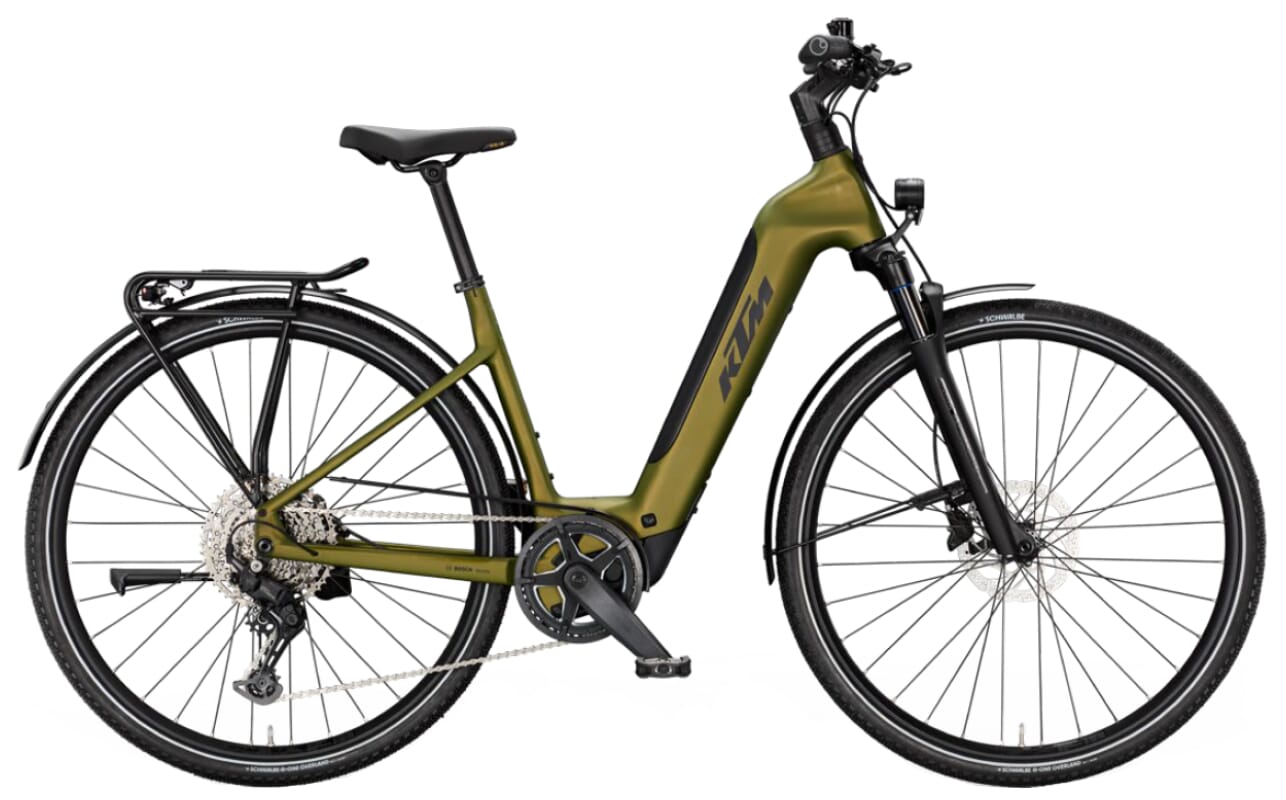

The KTM Macina Sport SX Pro 2027 heralds a new generation of trekking e-bikes. It combines the full range of everyday features of a commuter bike with the extreme lightness of a premium carbon frame. The compact Bosch Performance Line SX motor delivers a dynamic boost which, thanks to the low pedalling resistance, feels just like riding a conventional bike – only with a powerful tailwind. It is powered by the lightweight Bosch CompactTube 400 Wh battery, which fits seamlessly into the slim carbon frame. The system is controlled intuitively via the ergonomic Bosch Purion 200 display, which shows all key data in colour on the handlebar grip. Power is transmitted via the Shimano CUES 11-speed gearshift with pioneering LinkGLIDE technology. These components have been specially developed to withstand extreme stresses.
Features of the KTM Macina Sport SX Pro – 2027
- Trekking e-bike with carbon frame
- Bosch Performance SX drive with 60 Nm
- Bosch CompactTube 400Wh
- Bosch Purion 200 display & remote
- Suntour NCX 32-D SPORT Air LO 63mm 15x100 fork
- Automatic Shimano CUES – 11-speed gearshift
eBike24 recommends: The KTM Macina Sport SX Pro is the top choice for sporty riders who don’t want a heavy e-bike. The combination of a lightweight carbon frame, an agile Bosch SX motor and the durable Shimano CUES gearshift makes it the perfect, dynamic companion for everyday use and touring.
| Battery: | Bosch CompactTube 400Wh |
|---|---|
| Battery capacity: | 400 Wh - 499 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line SX from 2024 Smart System |
| Brake: | Shimano MT221 / MT200 2-piston |
| Carrier: | KTM light 42 snap-it 2.0/monkeyload rack clip |
| Cassette: | Shimano LG400-11 / 11-50 LinkGLIDE |
| Chain: | KMC eGLIDE LG |
| Chainguard: | Horn Catena 22, 44 teeth |
| Chainring: | KTM Aluminium 42T Direct Mount |
| Charger: | Bosch Compact Charger 2A |
| Colour: | Emerald Grey | Goblin Green Matt |
| Crank: | KTM E-TEAM2 ISIS 170mm Q8 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Front: Shimano CL300 CL 180 | Rear: Shimano CL300 CL 160 |
| Display: | Bosch Purion 200 Display & Remote |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Fork: | Suntour NCX 32-D SPORT Air LO 63mm 15x100 |
| Frame: | Macina Trekking Premium Carbon Frame |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front hub: | Shimano TC500 CL 32H 100-15TA |
| Front light: | Litemove SC-160 160Lux |
| Gearshift stages: | 11-speed |
| Grips: | ERGON GS1 |
| Handlebar: | KTM TEAM II low-riser 640mm |
| Headset: | Acros AICR internal 1.1/8"–1.5" angle limit |
| Item: | KTM Macina Sport SX Pro – 2027 |
| Item weight: | 19,5 kg |
| Manufacturer: | KTM |
| Model year: | 2027 |
| Motor: | Bosch Performance SX drive system |
| Mudguard: | SKS EVO AL 55mm 28" rear |
| Pedal: | VP-616 alloy trekking pedal with rubber tread |
| Permissible total weight: | 130 kg (e-bike + rider + luggage) |
| Rear derailleur: | Shimano CUES U6000-11/10 LG Shadow+ |
| Rear hub: | Shimano TC500 CL 32H 142-12TA |
| Rear light: | AXA Juno |
| Rims: | Front: Black Jack Ready25 32H 622x25TC | Rear: Black Jack Ready25 32H 622x25TC |
| Saddle: | Selle Royal Vaia Gel |
| Saddle clamp: | KTM TEAM Light CL-FJ21 – 31.8 mm |
| Seat post: | KTM Line 27.2/350 |
| Shift lever: | Shimano CUES U6001-11 LG/Display |
| Side stand: | KTM 28" adjustable MY2025 |
| Spokes: | Front: DT Alpine II 2.34 black | Rear: DT Alpine II 2.34 black |
| Stem: | KTM Active ICR +20° |
| Tyres: | Front: Schwalbe G-One Overland Eco 45-622 | Rear: Schwalbe G-One Overland Eco 45-622 |
