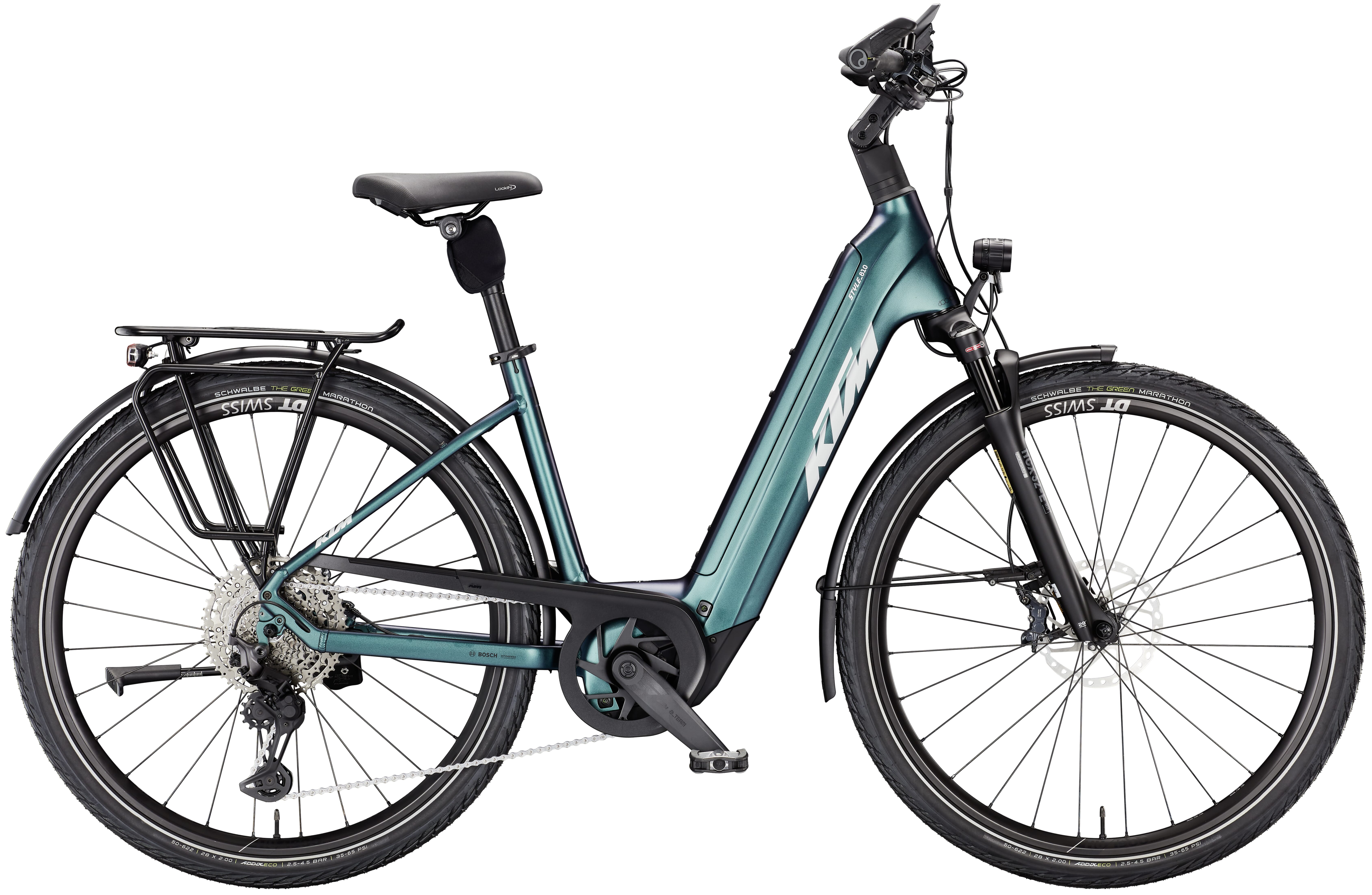

KTM Macina Style 810 | CX Gen5, 800Wh, Connect Module, Kiox 500

Preview: KTM Macina Style 810 - 2025 Men's Green Purple Flip

Preview: KTM Macina Style 810 - 2025 Ladies Green Purple Flip

KTM Macina Style 810 - 2025 Men's Green Purple Flip

KTM Macina Style 810 - 2025 Ladies Green Purple Flip

4,699.00€

Item number: 10954-001
Manufacturer Part Number: 1250156136

The KTM Macina Style 810 2025 is the ideal trekking eBike for weekend excursions and daily commutes. You can always transport your utensils safely on the built-in KTM Tour luggage rack in your pannier bag. The Bosch Performance Line CX Gen5 motor provides powerful support while riding. At the same time, the Bosch PowerTube 800Wh battery integrated in the down tube supplies the trekking eBike with powerful power, so that even longer tours are possible. The Bosch Kiox 500 display allows you to read your journey data quickly and easily. This means you have data such as your current speed, battery status and the selected support level directly in view while riding. The display is operated using the Bosch LED Remote. You can use it to change the view of the Kiox 500, change the support level and operate the built-in lighting, among other things.

Features of the KTM Macina Style 810 - 2025

Trekking eBike with eBike Smart System
Bosch Performance Line CX Gen5 motor
Bosch PowerTube 800Wh battery
Bosch Kiox 500 & LED Remote
Bosch Connect Module
Shimano CUES U8000/U8020 brakes
Busch and Müller lights

Safety on the KTM Macina Style 810 - 2025

The combination of Busch and Müller lighting and Shimano brakes ensures the necessary safety on the KTM Macina Style 810. The Busch & Müller IQ-XM front light ensures that your route is always brightly illuminated at the front, while the Busch and Müller Dart Brex rear light ensures that you are always clearly visible to other road users at the rear. At the same time, the Shimano CUES U8000/U8020 brakes ensure that you can brake quickly and safely in any situation. Another safety feature is the built-in Bosch ConnectModule. This allows you to track the location of the trekking eBike and receive a notification if the bike is moved. With the Flow+ Premium Service, you also have the option of activating the eBike Alarm, which can play alarm signals directly on the eBike. To use the functions of the Bosch Connect Module, you need the eBike Flow app on your smartphone.

E-Bike Types:	Urban & City e-Bikes
Model year:	2025
Battery capacity:	800 Wh - 899 Wh
Drive system:	Bosch drive
Manufacturer:	KTM
Frame type:	Ladies / Trapeze, Low-entry / Wave, Mens
Derailleur/drive type:	Derailleur - chain drive
Battery position:	Intube battery / frame integrated
Bosch System:	Bosch Performance Line CX from 2025 Smart System
Frame:	Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38 / T-5940
Fork:	Suntour NCX32-E Air LO 63mm Al 1 1/8
Battery:	Bosch PowerTUBE 800Wh horizontal
Tyres:	Schwalbe Green Marathon Perf. GreenGuard 50-622
Saddle:	Selle Royal Lookin
Seat post:	Suntour SP17-NCX suspension 30.9/350
Carrier:	KTM tour (snap-it 2.0 + monkeyload) childseat+rack clip
Item:	KTM Macina Style 810 - 2025
Colour:	MACHINE GREY (SILVER+BLACK) \| GREEN PURPLE FLIP MATT (SILVER+BLACK)
Stem:	KTM Line adjust. 0-60° ICR
Display:	Bosch KIOX 500 TFT display
Side stand:	KTM 28" adjustable MY2025
Wheels:	front: KTM Line - Shimano TC500 CL 32H 100-15TA Ryde Rival30 32H 622x30C DT Champion 2.0 black \| rear: KTM Line - Shimano Deore M5100 CL 32H 135-5QR Ryde Rival30 32H 622x30C DT Alpine II 2.34 black
Spring travel:	63 mm
Grips:	Ergon GP30
Motor:	Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Rear light:	B&M Dart brex
Front light:	B&M IQ-XM 120-170Lux HighBeam
Pedal:	Trekking pedal VP-616 anti-slip
Wheel size:	28"
Handlebar:	KTM Line rizer20 640mm
Crank:	KTM E-TEAM2 ISIS 170mm Q8
Cassette:	Shimano LG400-11 / 11-50
Rear derailleur:	Shimano Deore XT M8130-11 LG shadow+
Chain:	KMC e11 Sport EPT eBike
Shift lever:	Shimano Deore XT M8130-11 LG
Charger:	Bosch STANDARD Charger 4A
Disc brakes:	Shimano RT64 CL 180 / RT64 CL 160
Control unit:	Bosch LED Remote
Brake:	Shimano CUES U8000 / U8020 4-Piston
GPS:	Bosch ConnectModule
