€4,999.00
Home delivery (Germany) 22/04/2026 - 24/04/2026
Description

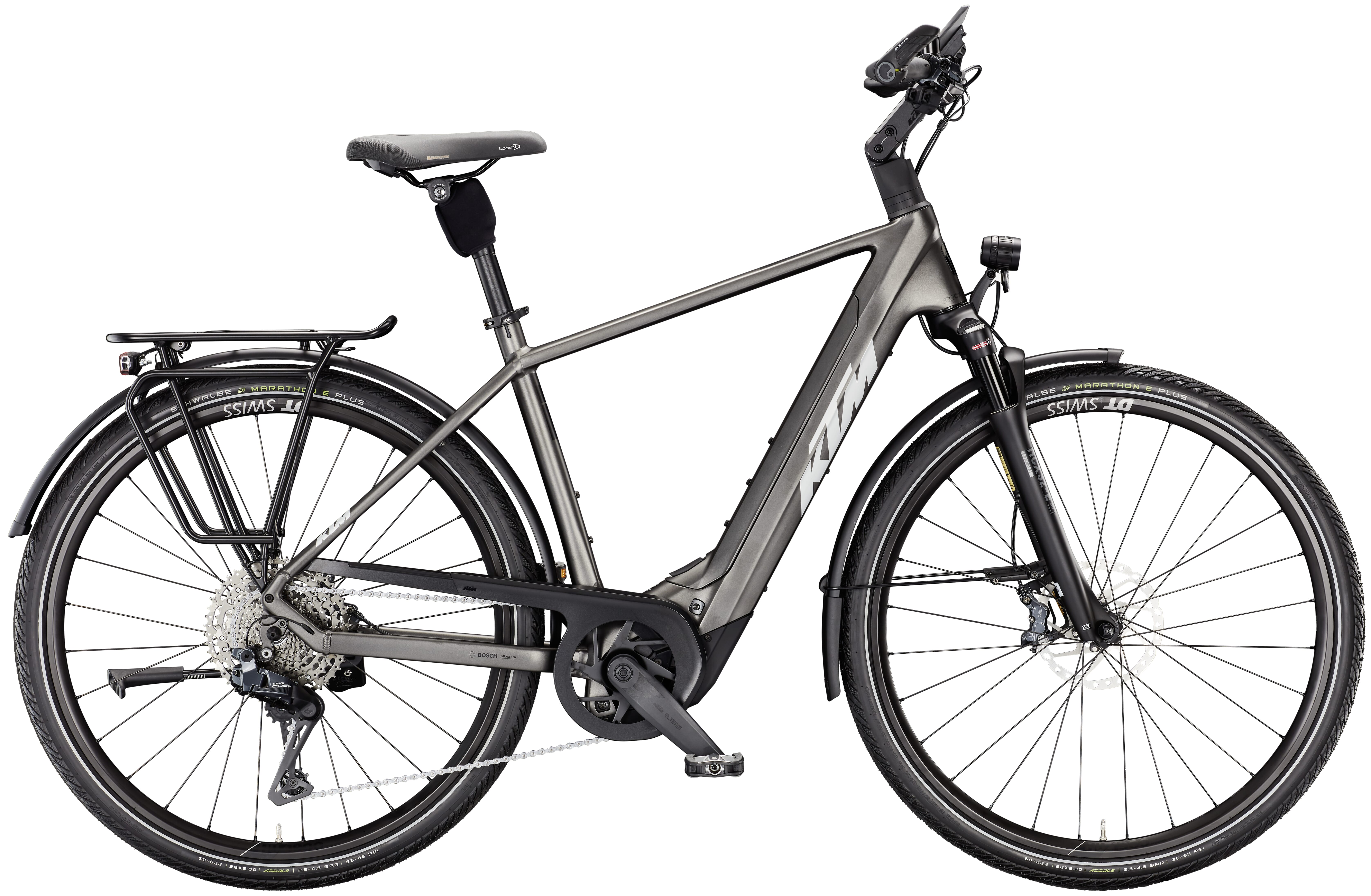

The KTM Macina Style 810 Di2 - 2026 is a high-quality trekking electric bike that impresses with its intelligent technology, powerful motor support and high level of riding comfort. The robust Macina Trekking Onroad aluminium frame with integrated Bosch PowerTube 800 Wh battery forms the backbone of this touring all-rounder. The powerful Bosch Performance CX motor provides powerful support, even on long distances and demanding terrain. The system is controlled via the new Bosch Kiox 500 display, which provides clear and concise information on riding data, range and support levels at all times. The Macina Style 810 Di2 is equipped with a sensitive Suntour NCX32-E Air suspension fork and a Suntour NCX parallelogram seatpost for a pleasantly suspended riding experience.
Features of the KTM Macina Style 810 Di2 - 2026
- Trekking e-bike with on-road aluminium frame
- Bosch Performance CX motor with 100 Nm
- Bosch PowerTube 800 Wh battery
- Bosch Kiox 500 display
- Shimano CUES Di2 U8050-11 rear derailleur
- Suntour NCX32-E Air suspension fork
Shimano CUES Di2 U8050-11 rear derailleur
The electronic Shimano CUES Di2 U8050-11 rear derailleur with Shadow technology is a technological highlight. In combination with the EN605 Di2 shift lever, it offers seamless, low-noise gear changes even under load. Thanks to electronic control, you experience a new dimension in shifting precision and freedom from maintenance. Developed for e-bikes, the system is robust and durable - ideal for frequent riders.
eBike24 recommends: The KTM Macina Style 810 Di2 is a well thought-out premium trekking e-bike suitable for everyday use with smart technology and elegant design.
Properties
| Battery: | Bosch PowerTUBE 800Wh horizontal |
|---|---|
| Battery capacity: | 800 Wh - 899 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Shimano CUES U8000 / U8020 4-Piston |
| Carrier: | KTM tour snap-it 2.0/monkeyload childseat + rack clip |
| Cassette: | Shimano LG400-11 / 11-50 |
| Chain: | KMC e11 Sport EPT eBike |
| Chainguard: | KTM type 9 for Bosch BDU38 |
| Chainring: | FSA steel 42T Direct Mount |
| Charger: | Bosch STANDARD Charger 4A |
| Colour: | Machine Grey Matt (Silver+Black) |
| Crank: | KTM E-TEAM2 ISIS 170mm 08 |
| Derailleur/drive type: | Derailleur - chain drive, electr. derailleur - chain drive |
| Disc brakes: | Front: Shimano RT64 CL 180 | Rear: Shimano EM600 CL 160 magnet |
| Display: | Bosch KIOX 500 TFT display |
| Drive system: | Bosch drive |
| E-Bike Types: | SUV E-Bike, Trekking E-Bike |
| Fork: | Suntour NCX32-E Air LO 63mm Al 1 1/8 |
| Frame: | Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38/T5940 |
| Front light: | B&M IQ-XM 120-170Lux HighBeam |
| GPS: | Bosch ConnectModule |
| Grips: | Ergon GP30 |
| Handlebar: | KTM TEAM II low rizer 640mm |
| Headset: | Acros AICR internal 1.5"-1.5" |
| Item: | KTM Macina Style 810 Di2 - 2026 |
| Manufacturer: | KTM |
| Model year: | 2026 |
| Motor: | Bosch PERFORMANCE CX BDU3840 |
| Mudguard: | SKS A55K PET Trek 28" rear |
| Pedal: | Trekking pedal VP-616 anti-slip |
| Permissible total weight: | 146 kg |
| Rear derailleur: | Shimano CUES Di2 U8050-11 SGS shadow |
| Rear light: | B&M Dart brex |
| Saddle: | Selle Royal Lookin |
| Saddle clamp: | KTM Line JD-SC99 - 34.9mm |
| Seat post: | Suntour SP25-NCX suspension 30.9/350 |
| Shift lever: | Shimano CUES Di2 EN605 Switch |
| Side stand: | KTM 28" adjustable MY2025 |
| Stem: | KTM Line adjust. 0-60° ICR |
| Tyres: | Front: Schwalbe Green Marathon Perf. GreenGuard 50-622 | Rear: Schwalbe Green Marathon Perf. GreenGuard 50-622 |
| Wheels: | Front: DT HU 1900 CL 100/5QR|622x25TC TLR | Rear: DT HU 1900 CL 135/5QR|622x25TC SS TLR |
