KTM Macina Style 820 - 2026

Preview: KTM Macina Style 820 - Machine Grey Men

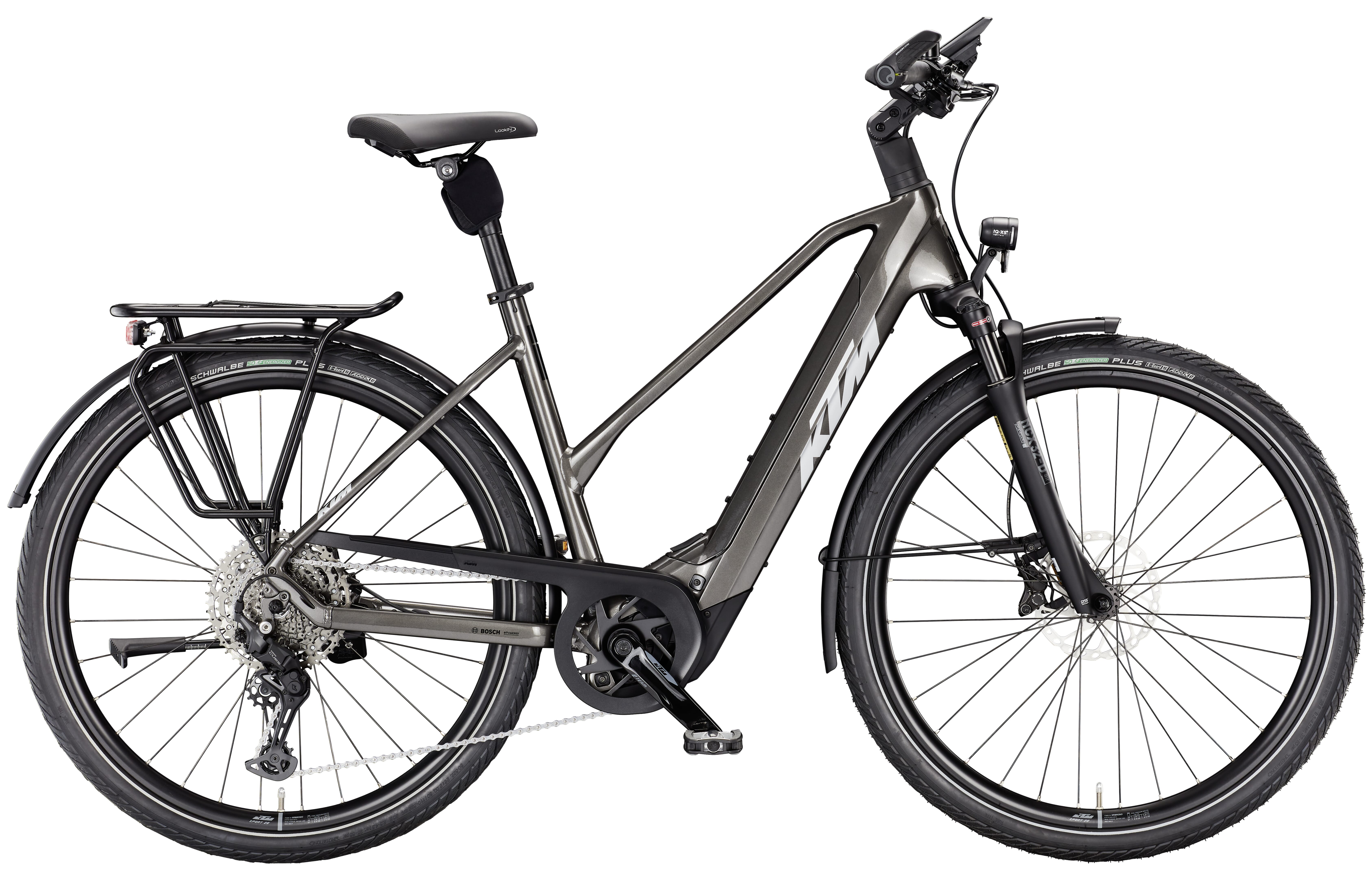

Preview: KTM Macina Style 820 - Machine Grey Ladies

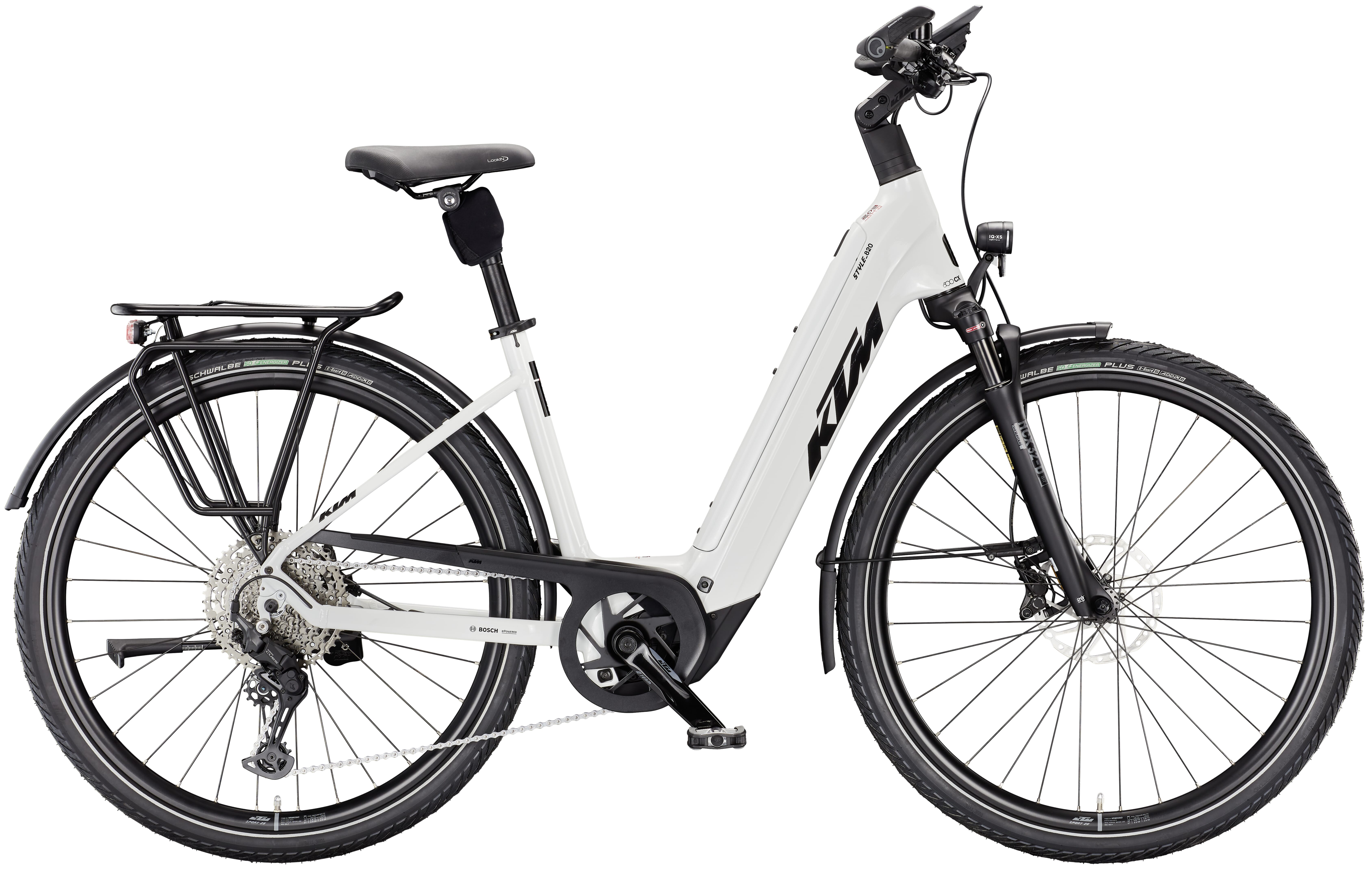

Preview: KTM Macina Style 820 - White Step-through bike

KTM Macina Style 820 - Machine Grey Ladies

KTM Macina Style 820 - White Step-through bike

4,399.00€

Prices incl. VAT plus shipping costs

Item number: 11533-008
Manufacturer Part Number: 1260154503

Close menu

The KTM Macina Style 820 - 2026 impresses as a versatile and comfort-orientated e-trekking bike for demanding tours and daily rides. The high-quality Macina Trekking Onroad frame is designed for the Bosch Performance CX drive system and, in combination with the powerful Bosch PowerTube 800 Wh battery, provides reliable and long-lasting support on any route. The Bosch Kiox 500 display allows you to keep track of all relevant riding data at all times. The precise Suntour NCX32-D Air LO suspension fork with 63 mm travel provides noticeable damping on uneven terrain and significantly increases comfort even on longer tours. The powerful Busch and Müller IQ-XS front light provides up to 80 lux to illuminate the road width and evenly, ensuring the best visibility even in the dark and in bad weather.

Features of the KTM Macina Style 820 - 2026

Trekking e-bike with Bosch Smart System
Bosch Performance CX motor with 100 Nm
Bosch PowerTube 800 Wh battery
Bosch Kiox 500 display
Suntour NCX32-D Air LO suspension fork
Busch and Müller IQ-XS front light

eBike24 recommends: The KTM Macina Style 820 is the perfect choice for anyone looking for a reliable, powerful and comfortable trekking electric bike with state-of-the-art technology - ideal for everyday use, leisure and longer tours.

E-Bike Types:	Cross E-Bike, Trekking E-Bike
Model year:	2026
Battery capacity:	800 Wh - 899 Wh
Drive system:	Bosch drive
Manufacturer:	KTM
Derailleur/drive type:	Derailleur - chain drive
Gearshift stages:	11-speed
Battery position:	Intube battery / frame integrated
Bosch System:	Bosch Performance Line CX from 2025 Smart System
Frame:	Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38/T5940
Fork:	Suntour NCX32-D Air LO 63mm 1 1/8
Battery:	Bosch PowerTUBE 800Wh horizontal
Tyres:	Front: Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex \| Rear: Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex
Saddle:	Selle Royal Lookin
Seat post:	Suntour SP25-NCX suspension 30.9/350
Carrier:	KTM tour snap-it 2.0/monkeyload childseat + rack clip
Item:	KTM Macina Style 820 - 2026
Colour:	Machine Grey (Silver + Black), White (Black + Red)
Stem:	KTM Line adjust. 0-60° ICR
Display:	Bosch KIOX 500 TFT display
Side stand:	KTM 28" adjustable MY2025
Mudguard:	SKS A55K PET Trek 28" rear
Chainring:	FSA steel 42T Direct Mount
Saddle clamp:	KTM Line JD-SC99 - 34.9mm
Grips:	Ergon GP30
Motor:	Bosch PERFORMANCE CX BDU3840
Headset:	Acros AICR internal 1.5"-1.5"
Rear light:	B&M Toplight 2C
Front light:	B&MIQ-XS 80Lux
Pedal:	Trekking pedal VP-616 anti-slip
Front hub:	Shimano Deore M5100 CL 32H 100-5QR
Rear hub:	Shimano Deore M5100 CL 32H 135-5QR
Handlebar:	KTM Line rizer20 640mm
Permissible total weight:	146 kg
Crank:	KTM E-TEAM ISIS 170mm Q16
Cassette:	Shimano LG400-11 / 11-50
Rear derailleur:	Shimano CUES U6000-11/10 LG shadow+
Chain:	KMC e11 Sport EPT eBike
Shift lever:	Shimano CUES U6000-11 display
Chainguard:	KTM type 9 for Bosch BDU38
