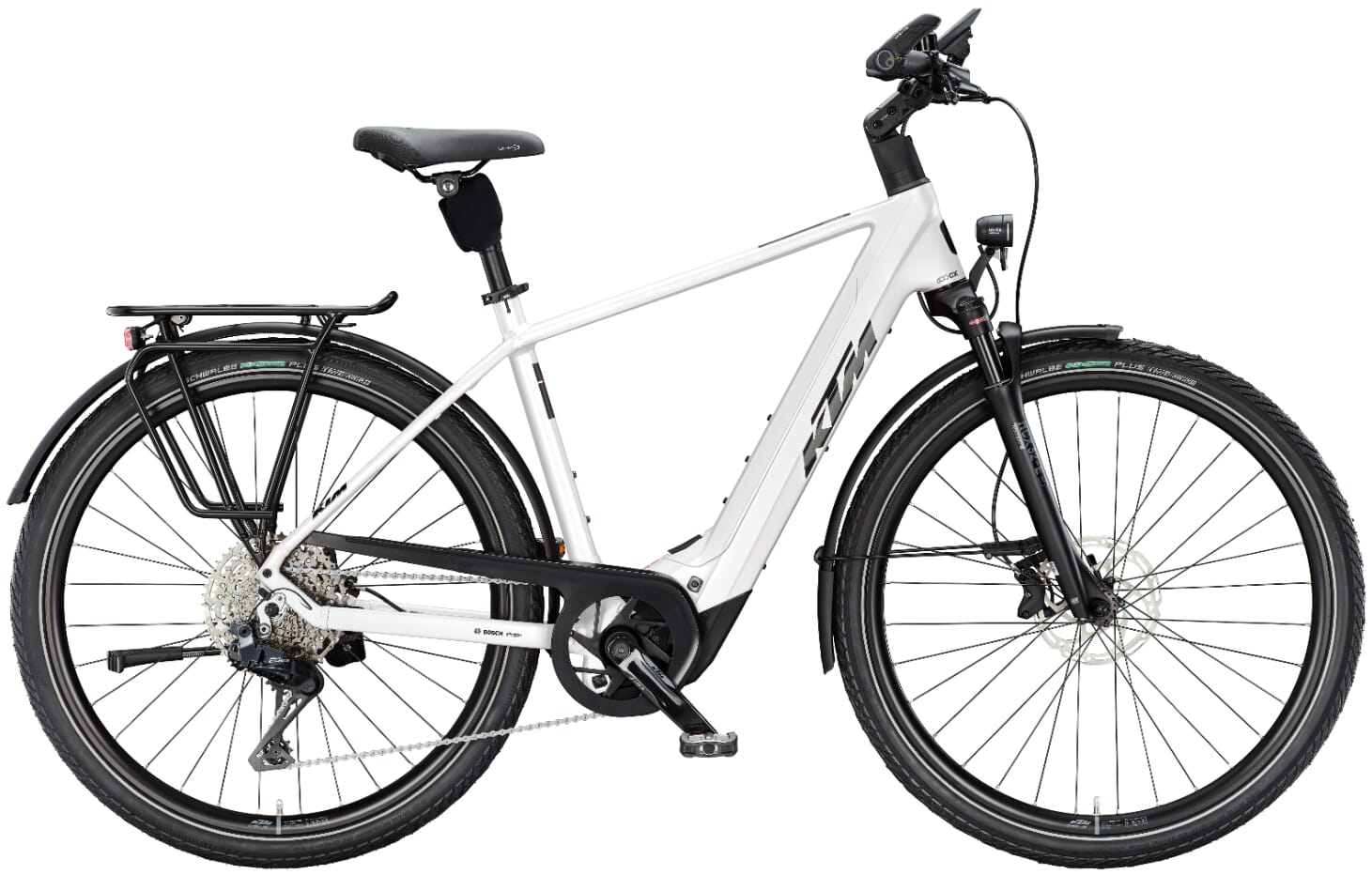

KTM Macina Style 820 - 2025

4,399.00€

Prices incl. VAT plus shipping costs

  • 11009-001
  • 1250158136

colour:

frame shape:

Frame Size:

The KTM Macina Style 820 is the perfect trekking eBike for long tours through the countryside. Thanks to the new Bosch Performance Line CX motor and an 800 Wh battery, it offers optimum support for long distances. The KTM Tour luggage rack with a load capacity of up to 25 kg is ideal for large panniers. This means that the Style 820 can take a lot of luggage on board, so that nothing stands in the way of extended weekend tours with lots of equipment. The high-quality Busch and Müller lighting system ensures optimum visibility and safety even in poor lighting conditions.

Features of the KTM Macina Style 820 - 2025:

  • 27.5" aluminium frame
  • Bosch Performance CX motor (BDU3840) - 85 Nm
  • Bosch Powertube 800 Wh battery
  • Bosch LED Remote + Kiox 500 display
  • Shimano CUES Di2 11-speed gears
  • KTM Tour (snap-it 2.0 + monkeyload) luggage rack
  • Busch and Müller lighting system

eBike24 recommends: The KTM Macina Style 820 is a reliable companion for anyone looking for comfort and reliability on their tours.

Specifications
E-Bike Types: Trekking e-Bikes
Model year: 2025
Battery capacity: 800 Wh - 899 Wh
Drive system: Bosch drive
Manufacturer: KTM
Frame type: Ladies / Trapeze, Low-entry / Wave, Mens
Derailleur/drive type: Derailleur - chain drive
Battery position: Intube battery / frame integrated
Bosch System: Bosch Performance Line CX from 2025 Smart System
Frame: Macina Trekking Onroad Alloy 6061
Fork: Suntour NCX32-D Air LO 63mm
Battery: Bosch PowerTUBE 800Wh horizontal
Tyres: Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex
Saddle: Selle Royal Lookin 3D
Seat post: KTM COMP parallelogramm 30.9/350
Carrier: KTM tour (Snap-it 1.0)
Item: KTM Macina Style 820 - 2025
Colour: WHITE | MACHINE GREY
Stem: KTM Line adjust. 0-60° ICR
Display: Bosch KIOX 500 TFT display
Side stand: KTM 28" bike stand MY2025, adjustable
Wheels: KTM Line - Shimano Deore M6000 CL 32H 100-5QR Ambrosio Sport 25 32H 622x25TC DT Champion 2.0 black | KTM Line - Shimano UR600 CL 32H 135-5QR Ambrosio Sport 25 32H 622x25TC DT Alpine II 2.34 black
Spring travel: Front: 63mm
Grips: Ergon GP30
Motor: Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Rear light: B&M Toplight 2C
Front light: B&M IQ-XS 100-150Lux HighBeam
Pedal: Trekking pedal VP-616 anti-slip
Wheel size: 28"
Handlebar: KTM Line Rizer20 640mm
Crank: KTM E-TEAM ISIS 170mm Q16
Cassette: Shimano LG400-11 / 11-50
Rear derailleur: Shimano CUES U6000-11/10 LG shadow+
Chain: KMC e11 Sport EPT e-bike
Shift lever: Shimano CUES U6000-11 display
Charger: Bosch Standard Charger 4A
Disc brakes: Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 160
Control unit: Bosch LED Remote
Brake: Tektro TKD-139 / HD-E730 4-piston
