€4,799.00
Home delivery (Germany) 21/05/2026 - 26/05/2026
Description

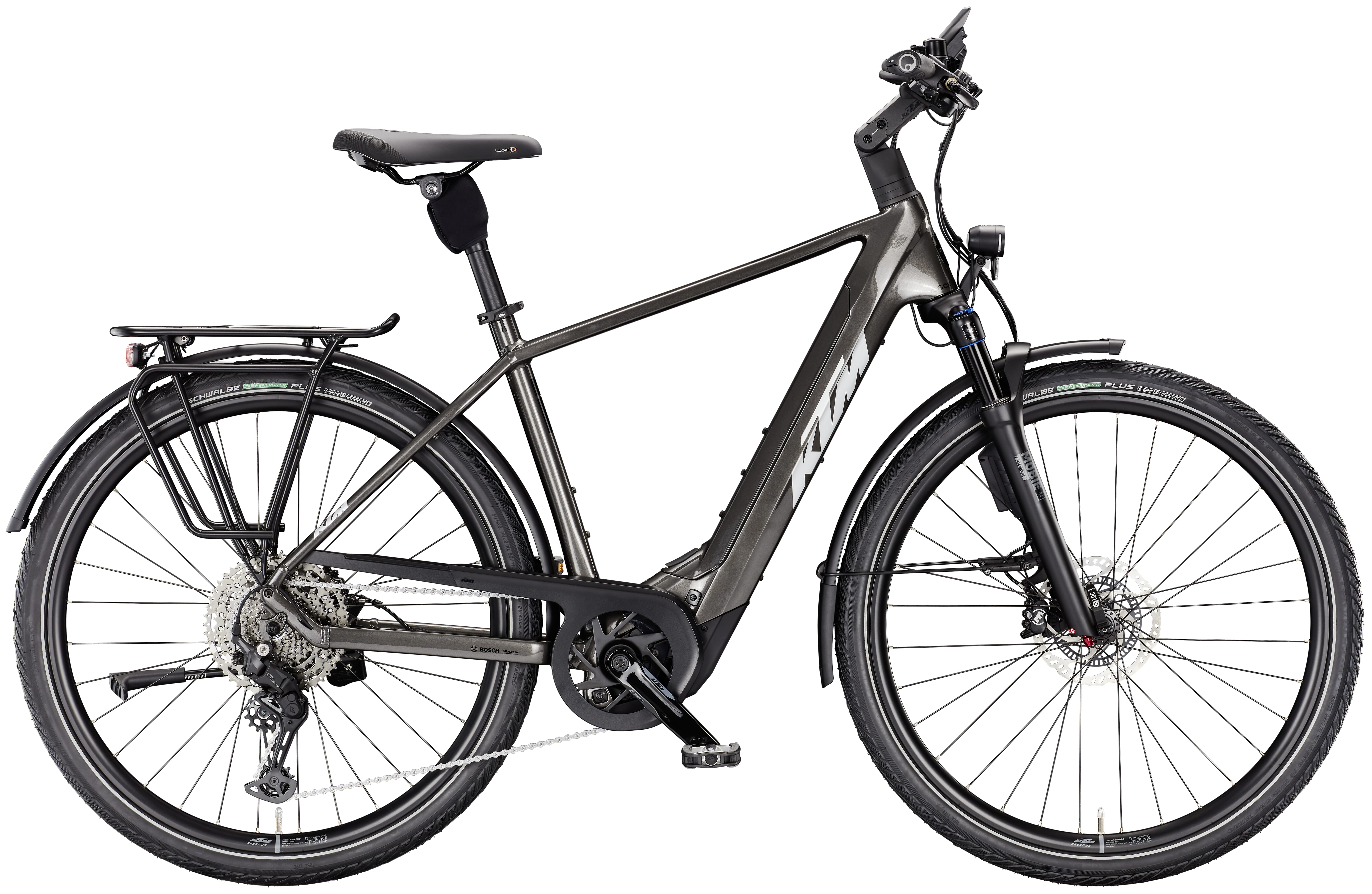

The KTM Macina Style 820 XL - 2026 - the trekking e-bike for larger people that combines comfort, performance and safety. The particularly robust Macina Trekking Onroad aluminium frame is designed for larger body sizes and offers an ergonomic riding position with an optimal overview and maximum control - ideal for the daily commute, extended bike tours or weekend excursions. Reliable support is provided by the powerful Bosch Performance CX motor, combined with a high-performance Bosch PowerTube battery with 800 Wh, which offers constant and enduring support even on longer distances. The Bosch Kiox 500 display holds the range, performance and riding data at your fingertips. The Suntour Mobie34 Air suspension fork with 80 mm travel, combined with the Suntour SP25-NCX suspension seat post and the comfortable Selle Royal Lookin 3D saddle, ensures noticeable riding comfort.
Features of the KTM Macina Style 820 XL - 2026
- KTM Macina Style 820 XL with on-road aluminium frame
- Bosch Performance CX motor with 100 Nm
- Bosch PowerTube 800 Wh battery
- Bosch Kiox 500 display
- Bosch ABS control unit Magura
- Suntour Mobie34 Air suspension fork
- B&M IQ-XS 100-150Lux HighBeam front light
More safety with Bosch ABS
A special highlight of the KTM Macina Style 820 XL - 2026 is the integrated Magura MTC ABS system with 4-piston brakes. This state-of-the-art anti-lock braking system prevents unintentional locking of the front wheel during heavy braking manoeuvres - especially in wet conditions or on gravel roads. The system is supported by two Magura MDR-C brake discs (180 mm), which apply the brakes powerfully and with fine control.
eBike24 recommends: The KTM Macina Style 820 XL is ideal for larger riders who are looking for a high-quality, comfort-orientated electric bike with reliable technology and excellent equipment.
Properties
| : | Front: Ambrosio Sport 25 32H 622x25TC | Rear: Ambrosio Sport 25 32H 622x25TC |
|---|---|
| Battery: | Bosch PowerTUBE 800Wh horizontal |
| Battery capacity: | 800 Wh - 899 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Magura MTC ABS 4-Piston |
| Carrier: | KTM tour snap-it 2.0/monkeyload childseat + rack clip |
| Cassette: | Shimano LG400-11 / 11-50 |
| Chain: | KMC e11 Sport EPT eBike |
| Chainguard: | KTM type 9 for Bosch BDU38 |
| Chainring: | FSA steel 42T Direct Mount |
| Charger: | Bosch STANDARD Charger 4A |
| Colour: | Machine Grey (Silver+Black) |
| Crank: | KTM E-TEAM ISIS 170mm 016 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Front: Magura MDR-C CL 180 | Rear: Magura MDR-C CL 180 |
| Display: | Bosch KIOX 500 TFT display |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Fork: | Suntour Mobie34 Air 29" 2CR 80mm 15QLC |
| Frame: | Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38/T5940 |
| Frame type: | Mens |
| Front hub: | Shimano Deore M6010 CL 32H 100-15TA |
| Front light: | B&M IQ-XS 100-150Lux HighBeam |
| Gearshift stages: | 11-speed |
| Grips: | Ergon GP1 SD |
| Handlebar: | KTM Line low rizer 640mm |
| Headset: | Acros AICR internal 1.5"-1.5" |
| Item: | KTM Macina Style 820 ABS - 2026 |
| Manufacturer: | KTM |
| Model year: | 2026 |
| Motor: | Bosch PERFORMANCE CX BDU3840 |
| Mudguard: | SKS A55K PET Trek 28" rear |
| Pedal: | Trekking pedal VP-616 anti-slip |
| Permissible total weight: | 146 kg |
| Rear derailleur: | Shimano CUES U6000-11/10 LG shadow+ |
| Rear hub: | Shimano Deore M5100 CL 32H 135-5QR |
| Rear light: | B&M Toplight 2C |
| Saddle: | Selle Royal Lookin 3D |
| Saddle clamp: | KTM Line JD-SC99 - 34.9mm |
| Seat post: | Suntour SP25-NCX suspension 30.9/350 |
| Shift lever: | Shimano CUES U6000-11 display |
| Side stand: | KTM 28" adjustable MY2025 |
| Spokes: | Front: DT Champion 2.0 black | Rear: DT Alpine II 2.34 black |
| Stem: | KTM Line adjust. 0-60° ICR |
| Tyres: | Front: Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex | Rear: Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex |
