Description

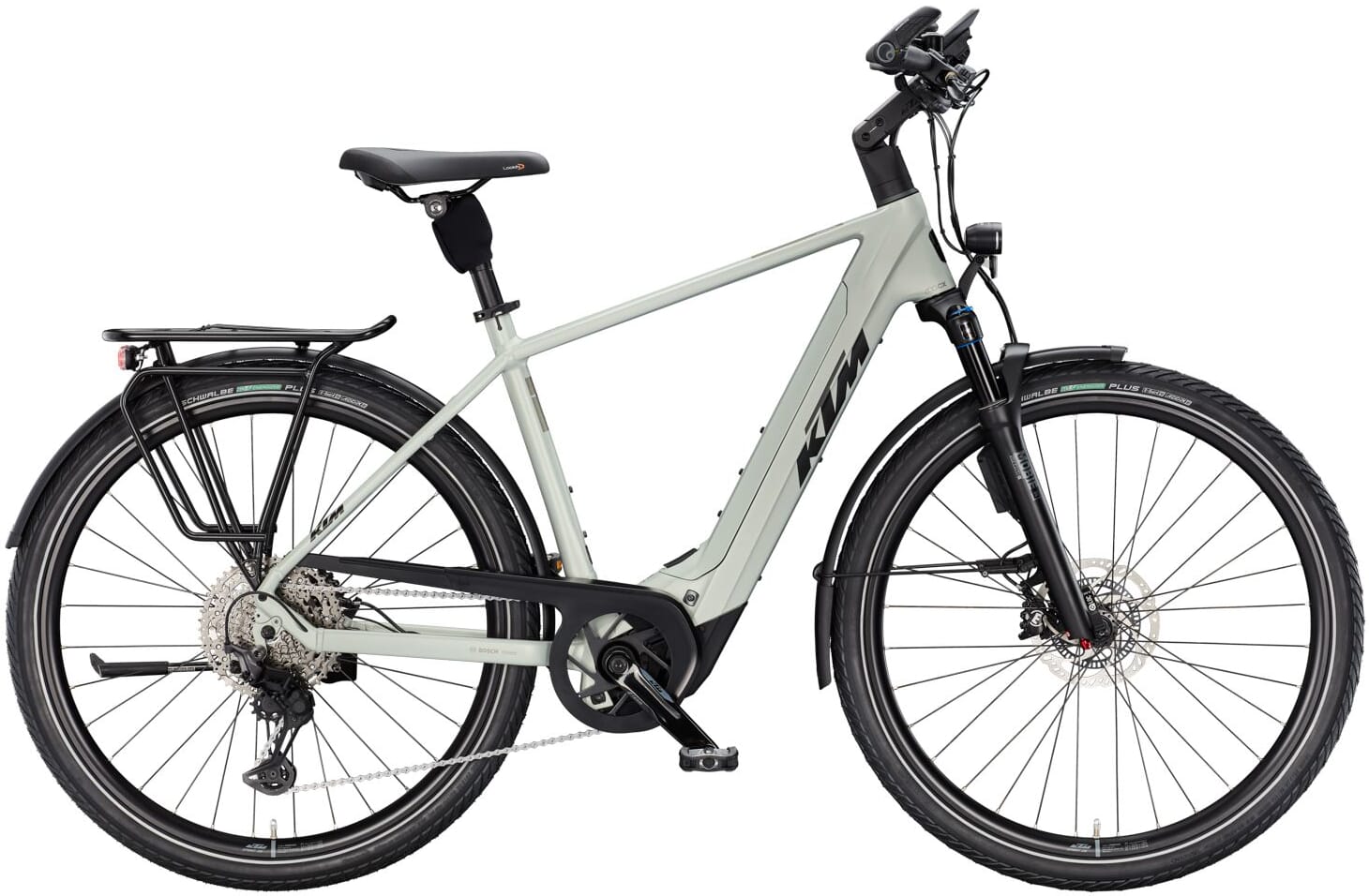

With the KTM Macina Style 820 ABS 2025, you get a trekking eBike with powerful performance and high-quality components. The built-in Bosch Performance CX motor and the Bosch PowerTube 800 Wh battery integrated in the down tube provide reliable support, even on longer tours. The Magura MT C ABS 4-piston brake provides the necessary safety. With these, you always have control of the Macina Style 820 and can brake quickly and safely in any situation. Another feature is the integrated anti-lock braking system (ABS). This prevents the front wheel from locking when the brakes are applied hard, thus avoiding skidding, e.g. on tarmac or a gravel path. You can view your riding activities at any time, during and after the ride, via the Bosch Kiox 500. The display is controlled via the Bosch LED remote, which is located on the left-hand side of the handlebar. You can also switch the B&M IQ-XS front light and the B&M Toplight 2C rear light on and off on the control unit.
eBike24 recommends: The Macina Style 820 ABS is suitable for everyday use, such as commuting to work or shopping. But the KTM trekking eBike also shows what it can do on eBike tours.
Features of the KTM Macina Style 820 ABS - 2025
- Bosch Performance CX motor
- Bosch PowerTube 800 Wh battery
- Bosch Kiox 500 & LED Remote
- Magura MT C ABS 4-piston brake
- Integrated anti-lock braking system (ABS)
- Busch and Müller lighting
- Suntour Mobie34 Air 29" fork
Properties
| Battery: | Bosch PowerTUBE 800Wh horizontal |
|---|---|
| Battery capacity: | 800 Wh - 899 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Magura MT C ABS 4-piston |
| Carrier: | KTM Tour (Snap-it 1.0) |
| Cassette: | Shimano LG400-11 / 11-50 |
| Chain: | KMC e11 Sport EPT eBike |
| Charger: | Bosch Standard Charger 4A |
| Colour: | DEW SILVER MATT |
| Control unit: | Bosch LED Remote |
| Crank: | KTM E-Team ISIS 170mm Q16 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Magura MDR-C CL 180 / MDR-C CL 180 |
| Display: | Bosch KIOX 500 TFT display |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Fork: | Suntour Mobie34 Air 29" 2CR 80mm 15QLC taper |
| Frame: | Macina Trekking Onroad Alloy 6061 |
| Front light: | B&M IQ-XS 100-150Lux HighBeam |
| Grips: | Ergon GP30 |
| Handlebar: | KTM Line rizer20 640mm |
| Item: | KTM Macina Style 820 ABS - 2025 |
| Manufacturer: | KTM |
| Model year: | 2025 |
| Motor: | Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm |
| Pedal: | Trekking pedal VP-616 anti-slip |
| Rear derailleur: | Shimano Deore XT M8130-11 LG shadow+ |
| Rear light: | B&M Toplight 2C |
| Saddle: | Selle Royal Lookin Man 3D |
| Safety features: | with anti-lock braking system (ABS) |
| Seat post: | Suntour SP17-NCX Suspension 30.9/350 |
| Shift lever: | Shimano Deore XT M8130-11 LG |
| Side stand: | KTM 28" bike stand MY2025, adjustable |
| Spring travel: | Front: 80mm |
| Stem: | KTM Line adjust. 0-60° ICR |
| Tyres: | Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex |
| Weight: | 28.6 kg |
| Wheel size: | 28" |
| Wheels: | KTM Line - Shimano Deore M6010 | KTM Line - Shimano Deore M5100 |
